Natural Gas Pressure Regulating Skid Supplier For Factory Gas Supply Systems
2026-06-01 17:04Send Your Factory Gas Supply Parameters For A Quick Quote
To design a suitable natural gas pressure regulating skid, please provide gas medium, inlet pressure, required outlet pressure, minimum / normal / maximum flow, downstream equipment, control requirements, safety devices, and site layout.

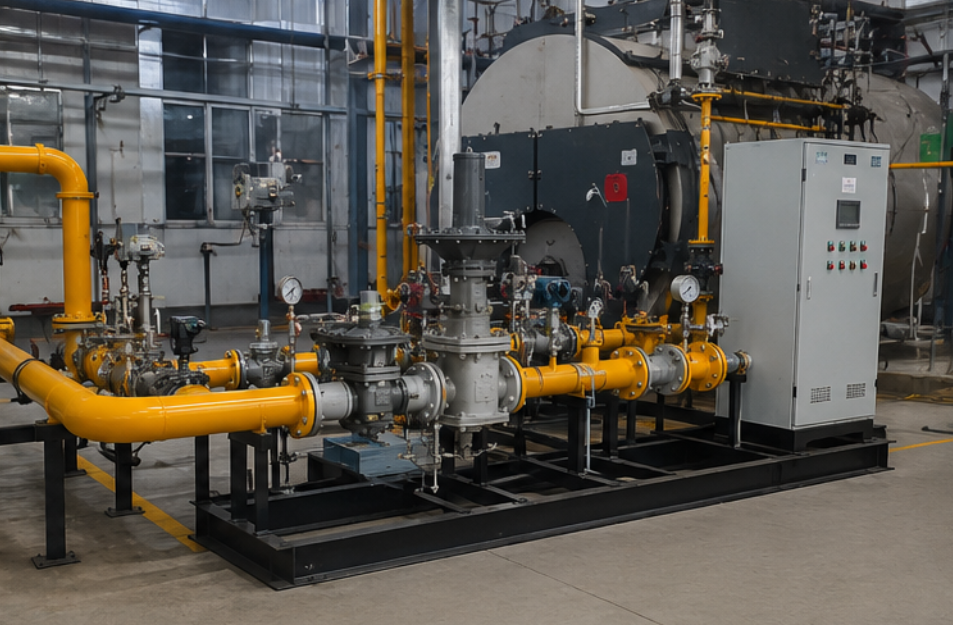

1. Why Factory Gas Supply Systems Need Stable Pressure Regulation
In factory gas supply systems, natural gas pressure stability directly affects combustion performance, production continuity, equipment safety, and energy efficiency. Many factories use natural gas for boiler rooms, industrial burners, furnaces, drying systems, heat treatment lines, food processing equipment, coating lines, and central utility stations.
If the gas pressure is too high, downstream equipment may face safety risks. If the pressure is too low or unstable, burners may shut down, heating temperature may fluctuate, production quality may be affected, and the factory may experience unexpected downtime.
A skid-mounted natural gas pressure regulating system helps factories control gas pressure in a compact, organized, and factory-tested package. It can reduce site installation work and provide a more reliable gas supply interface for production equipment.
Typical Factory Applications
Natural gas supply for industrial boiler rooms
Fuel gas supply for burners, furnaces, ovens, and dryers
Central gas supply systems for manufacturing plants
Factory utility stations for process heating equipment
Gas pressure reducing systems for industrial parks
Custom gas regulating skid packages for overseas factory projects
2. Key Parameters Needed Before Skid Design
A natural gas pressure regulating skid should be designed according to actual working conditions, not only nominal pipe size. The supplier needs to know the gas medium, inlet pressure range, required outlet pressure, gas flow range, downstream equipment type, connection standard, control signal requirements, installation environment, and safety requirements.
Factory gas demand can change during startup, low-load production, normal operation, and peak demand. If the regulator is selected only according to one design flow value, the system may not perform well at minimum or maximum load.
Factory Gas Skid Quotation Checklist
| Required Data | Why It Matters |
|---|---|
| Gas Medium | Confirms material, sealing, regulator selection, filtration, and safety design. |
| Inlet Pressure Range | Determines pressure class, regulator sizing, and safety protection method. |
| Required Outlet Pressure | Matches the pressure required by boilers, burners, or factory equipment. |
| Gas Flow Range | Ensures stable pressure regulation under minimum, normal, and peak demand. |
| Downstream Equipment | Affects response speed, control accuracy, safety logic, and system configuration. |
| Site Layout | Affects skid size, inlet/outlet direction, maintenance access, and installation space. |
3. Main Components Of A Natural Gas Pressure Regulating Skid

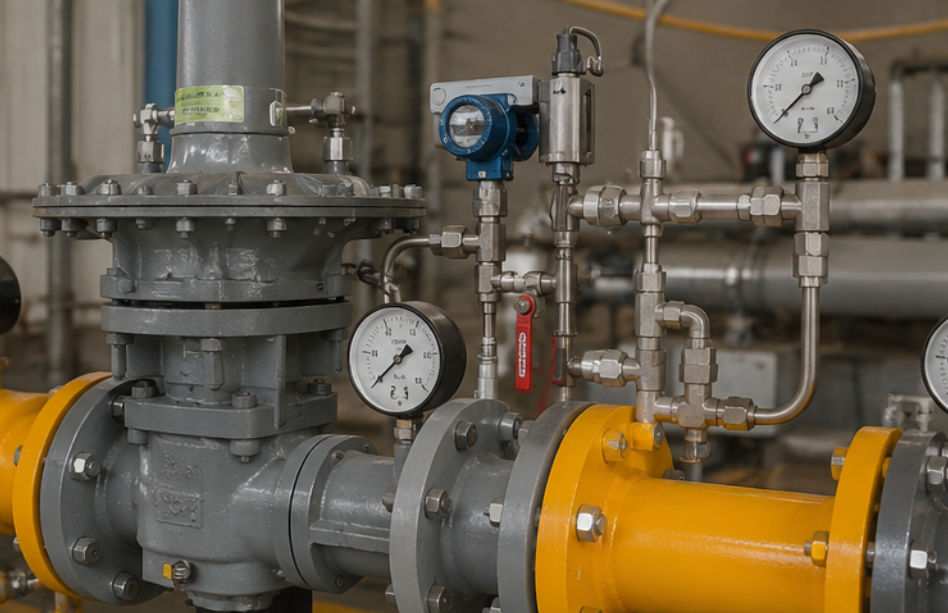

A complete natural gas pressure regulating skid for factory gas supply systems may include inlet isolation valve, filter or filter separator, pressure regulator, safety shut-off valve, relief valve, pressure gauges, pressure transmitters, outlet isolation valve, vent line, bypass line, gas leak detection interface, control cabinet, piping, pipe supports, and skid-mounted frame.
The filter protects the regulator and downstream equipment from particles and impurities. The regulator reduces inlet pressure to the required outlet pressure. Safety devices protect the system from abnormal pressure conditions. Instruments provide local indication, alarm signals, and remote monitoring data when required.
| Component | Function |
|---|---|
| Filter / Filter Separator | Removes dust, rust, liquid droplets, and impurities before regulation. |
| Pressure Regulator | Reduces natural gas pressure to the required factory supply pressure. |
| Safety Shut-Off Valve | Automatically cuts off gas flow during abnormal pressure or emergency conditions. |
| Relief Valve / Monitor Regulator | Protects downstream equipment from overpressure. |
| Pressure Transmitter | Provides pressure data for monitoring, alarms, and control system integration. |
| Control Cabinet | Supports local display, signal output, alarms, and remote monitoring functions. |
4. Safety, Control, And Factory Testing Requirements
Factory gas supply systems should be designed with safety as a priority. Buyers should confirm overpressure protection, underpressure protection, safety shut-off logic, relief protection, gas leak detection, emergency shut-off, alarm output, and safe venting requirements before ordering.

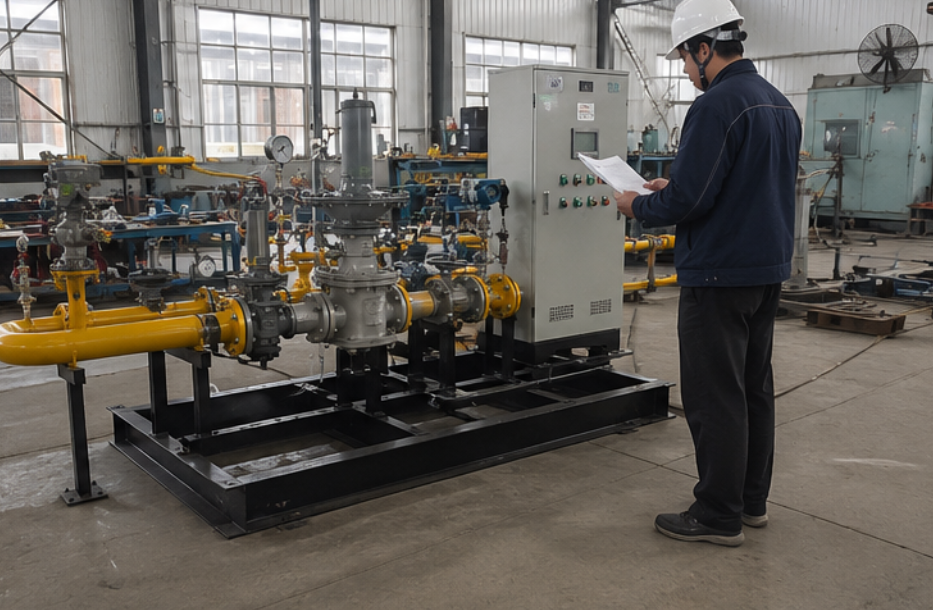

Factory testing is also important. A qualified supplier should provide pressure test, leak test, assembly inspection, instrument check, functional inspection, FAT report when required, final inspection photos, and complete technical documents before shipment.
For overseas factory projects, pre-shipment testing and clear documentation can reduce installation uncertainty and make communication easier between the buyer, contractor, installer, and end user.
Safety And Testing Checklist
Confirm safety shut-off valve and relief protection requirements.
Review overpressure and underpressure protection logic.
Check pressure gauge and pressure transmitter positions.
Confirm gas leak detection and emergency shut-off requirements.
Review signal output to PLC, DCS, SCADA, or local monitoring system.
Check skid footprint, inlet/outlet direction, and maintenance access.
Request pressure test, leak test, FAT report, and final inspection photos.
Confirm P&ID, GA drawing, data sheets, manuals, and packing documents.

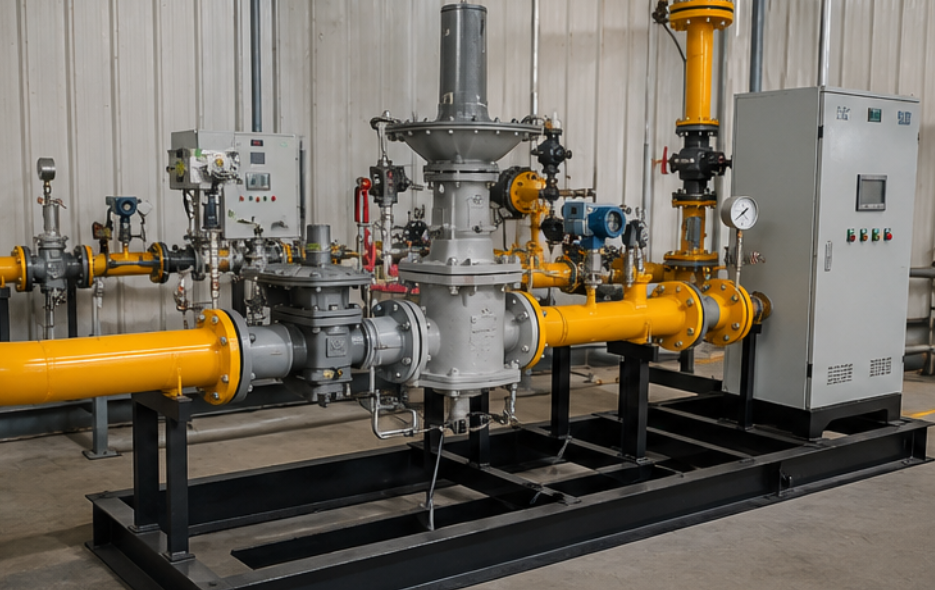

5. Why Choose A Skid-Mounted Supplier For Factory Gas Projects
A skid-mounted design allows the gas pressure regulating system to be engineered, assembled, inspected, and tested before delivery. Compared with site assembly, it can reduce installation work, avoid missing components, improve system layout, and shorten project execution time.
For factories with limited installation space or strict production schedules, a pre-assembled gas pressure regulating skid can make the project easier to manage. The supplier can provide drawings, component lists, test reports, final photos, operation manuals, and packing information before shipment.
Practical Tip
When comparing natural gas pressure regulating skid suppliers, do not only compare price. Check engineering capability, regulator sizing, safety devices, component transparency, testing scope, documentation, packing, and after-sales support.
Final Buyer Checklist
Provide gas medium, inlet pressure, outlet pressure, and flow range.
Confirm factory equipment type and gas pressure requirement.
Review regulator sizing and pressure control stability.
Check filter, safety shut-off valve, relief valve, and monitoring scope.
Confirm control cabinet, alarm output, and remote signal requirements.
Review skid layout, inlet/outlet direction, and maintenance access.
Request P&ID, GA drawing, component list, data sheets, and test reports.
Confirm packing method, lifting points, delivery schedule, and after-sales support.
Conclusion
A natural gas pressure regulating skid for factory gas supply systems should be designed according to gas medium, inlet pressure, outlet pressure, flow range, factory equipment demand, safety protection, site layout, control requirements, testing standards, and documentation requirements.
For industrial buyers, choosing a qualified natural gas pressure regulating skid supplier can help improve factory gas supply stability, protect downstream equipment, reduce installation risk, and support safe long-term operation.
FAQ
What is a natural gas pressure regulating skid?
It is a skid-mounted system used to filter, reduce, stabilize, monitor, and protect natural gas pressure before gas enters factory equipment or utility systems.
What information is needed before quotation?
Buyers should provide gas medium, inlet pressure, outlet pressure, gas flow range, downstream equipment, site layout, connection standard, and safety requirements.
What safety devices can be included?
Common safety devices include safety shut-off valve, relief valve, pressure transmitter, pressure gauge, vent line, emergency shut-off valve, and gas leak detection interface when required.
Why choose skid-mounted design for factory gas supply?
Skid-mounted design reduces site installation work, improves factory quality control, supports pre-shipment testing, and makes operation and maintenance easier.
Need A Natural Gas Pressure Regulating Skid For Your Factory?
Send us your gas medium, inlet pressure, outlet pressure, flow range, downstream equipment, control requirements, and site layout. Our engineering team can help you review the working conditions and provide a suitable natural gas pressure regulating skid solution.
