Shanghai Shenqi Showcases Precision Manufacturing of Gas Skids and Industrial Burner Systems

Integrated Gas Control Skid Production

In September 2026, Shanghai Shenqi Machinery Equipment Co., Ltd. recorded a new workshop production update covering custom gas control skid packages, heavy-duty valve assemblies and a large industrial burner system. The photographs show real manufacturing conditions and provide a close look at fabrication, modular assembly and quality-control details across projects of different sizes.

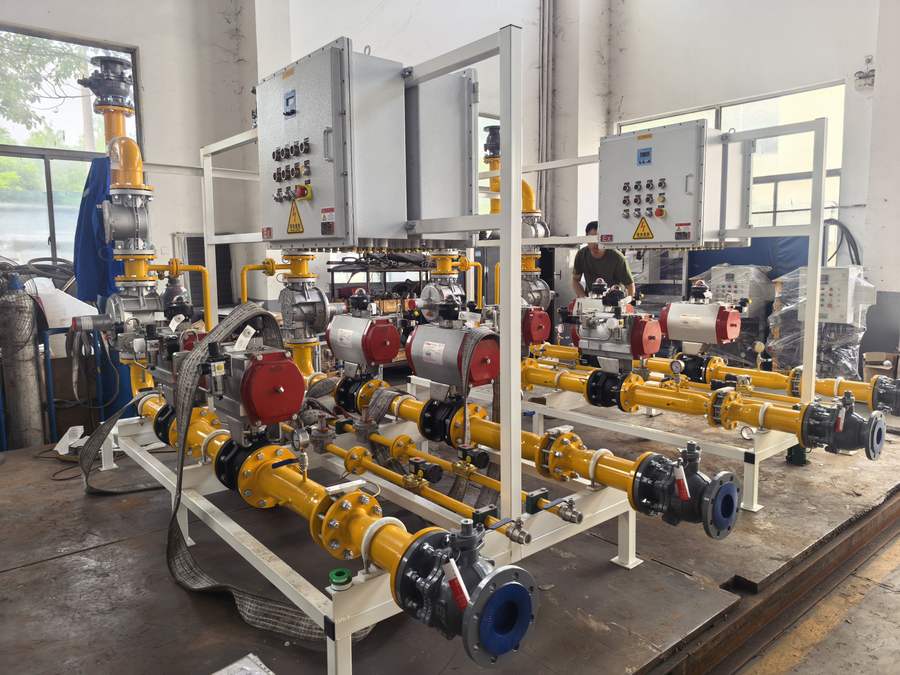

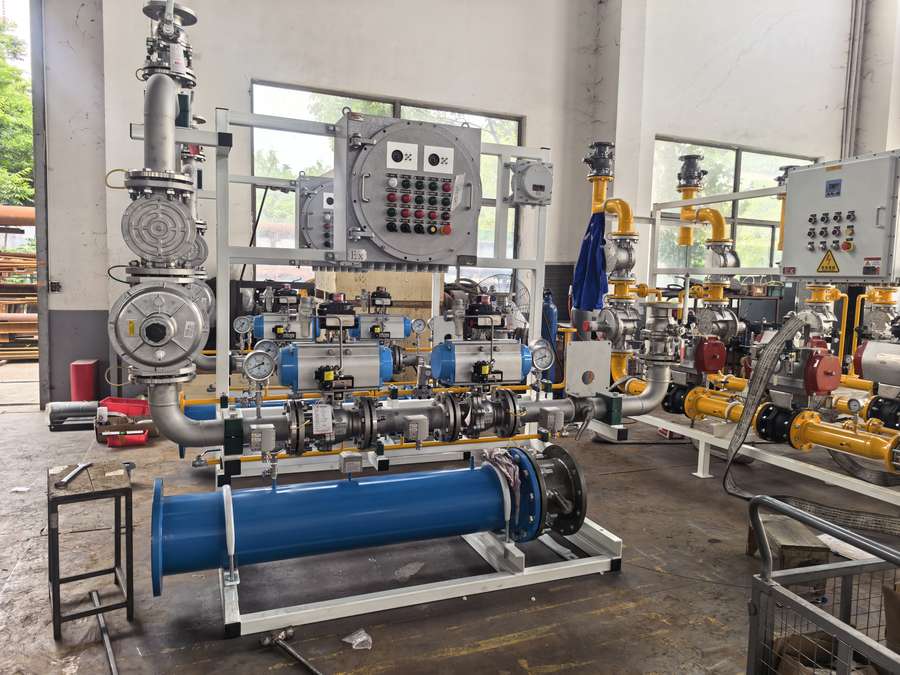

The gas pressure regulating skid packages combine large-bore process piping, isolation valves, pneumatically actuated valves, pressure gauges and local control panels on welded steel bases. Arranging the components as a gas control skid can reduce site assembly work and gives project teams a clear, accessible layout for installation, commissioning and future maintenance.

Several units use parallel process lines with independently operated valve trains. The modular arrangement allows a custom skid system to be configured around project flow, pressure-control, isolation and safety requirements. Stainless-steel sections, coated carbon-steel piping, instrument take-offs and explosion-protected control enclosures are positioned for practical operation and inspection.

Welding and Internal Fabrication Checks

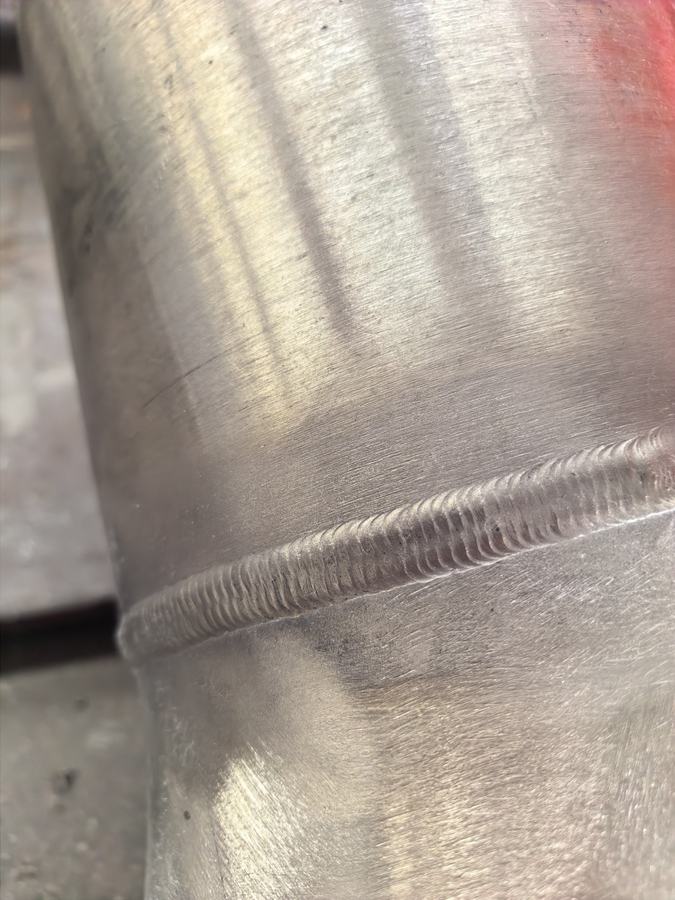

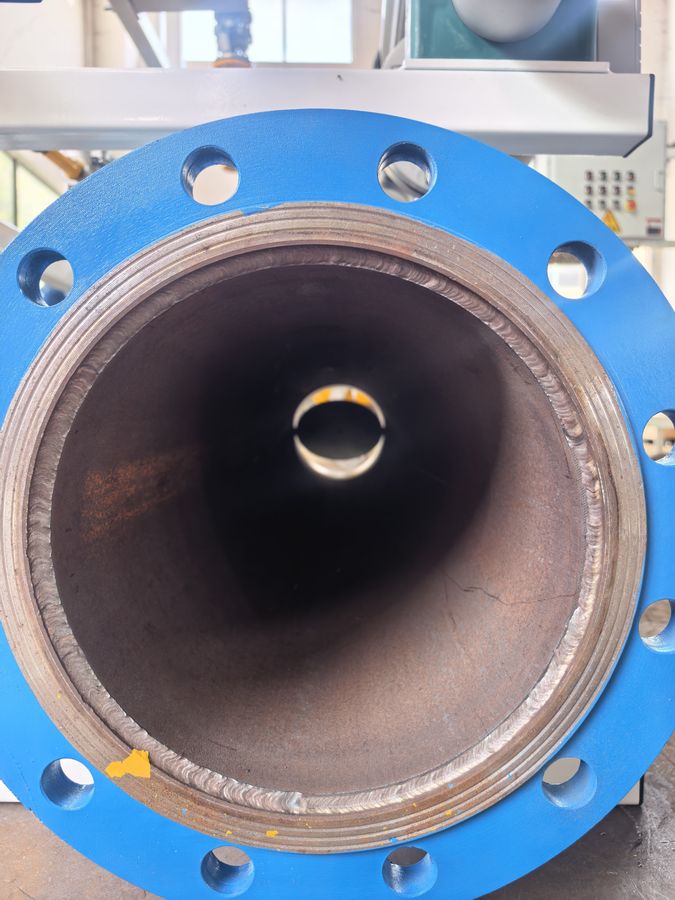

Close-up photographs document the external weld bead and the internal joint condition of fabricated pipe sections. These details are important because the performance of a gas pressure regulating skid depends not only on selected valves and instruments, but also on consistent pipe preparation, fit-up and welding throughout the complete flow path.

During workshop production, the Shanghai Shenqi team reviews visible weld continuity, joint geometry, flange alignment and internal cleanliness before final assembly proceeds. Photographing accessible internal and external areas creates a useful production record and helps the fabrication team identify any item that may need further attention before coating, integration or shipment.

Heavy-Duty Automated Valve Assemblies

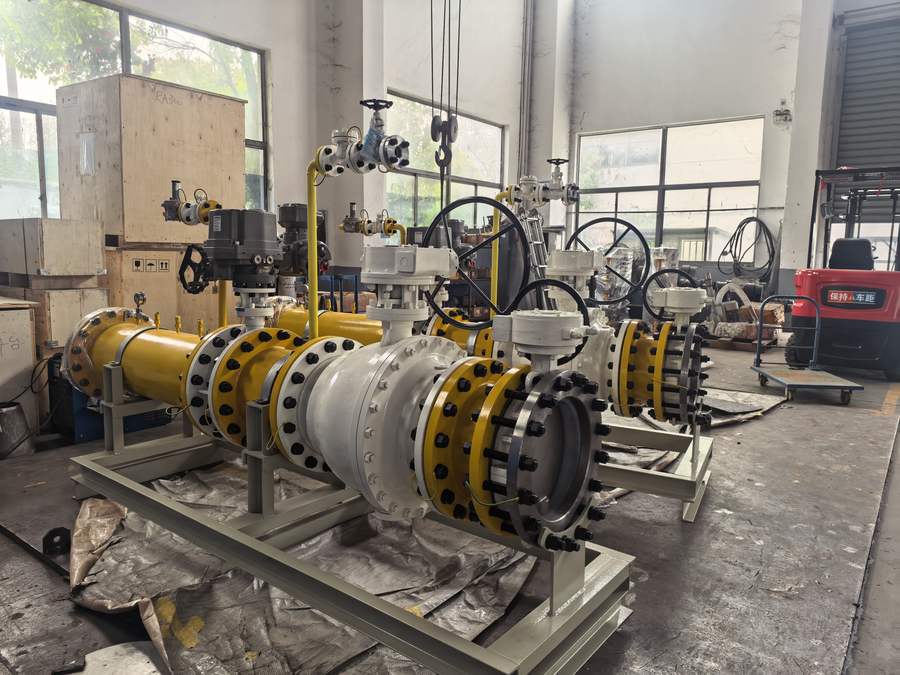

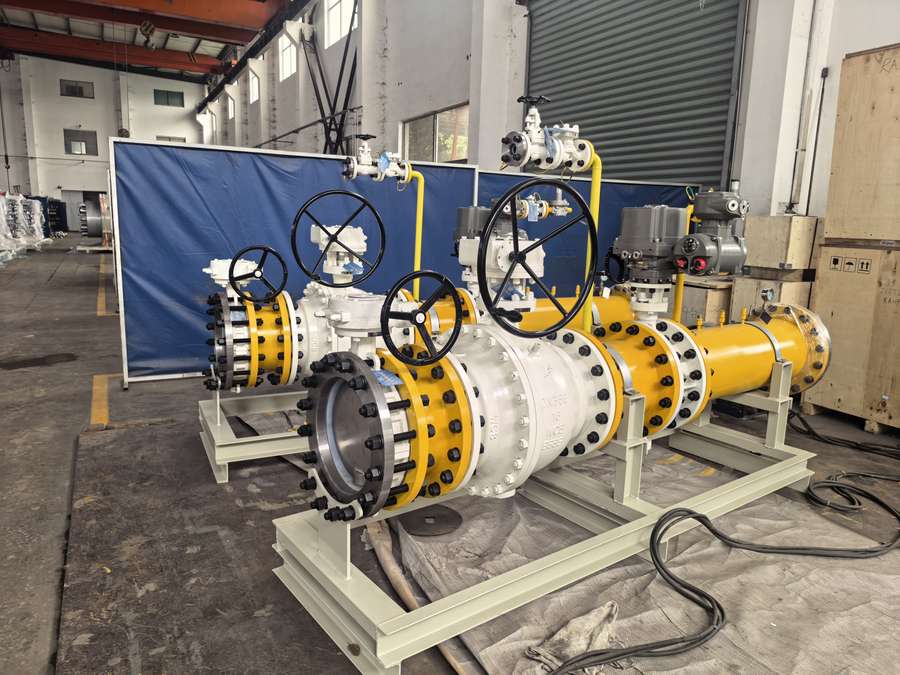

The workshop update also shows large automated valve assemblies installed on yellow-painted process lines. Manual gear operators and electric actuators provide different operating options within the same engineered package. Each valve assembly is supported on a rigid base so that the connected piping, actuator and flange loads can be managed as a complete module.

A well-designed automated valve assembly must consider access around handwheels, actuator terminals, pressure connections and bolted joints. The photographs show generous maintenance space around the major components. This layout makes inspection and service planning more straightforward after the gas control skid is installed at the customer's site.

Protective wrapping is applied to many smaller valve modules while the equipment remains in the workshop. The protective covering helps shield machined surfaces, actuator housings and instrument connections during the remaining production stages. Flange faces and open connections are also protected until the custom skid system is ready for the next step.

Large Industrial Burner System Manufacturing

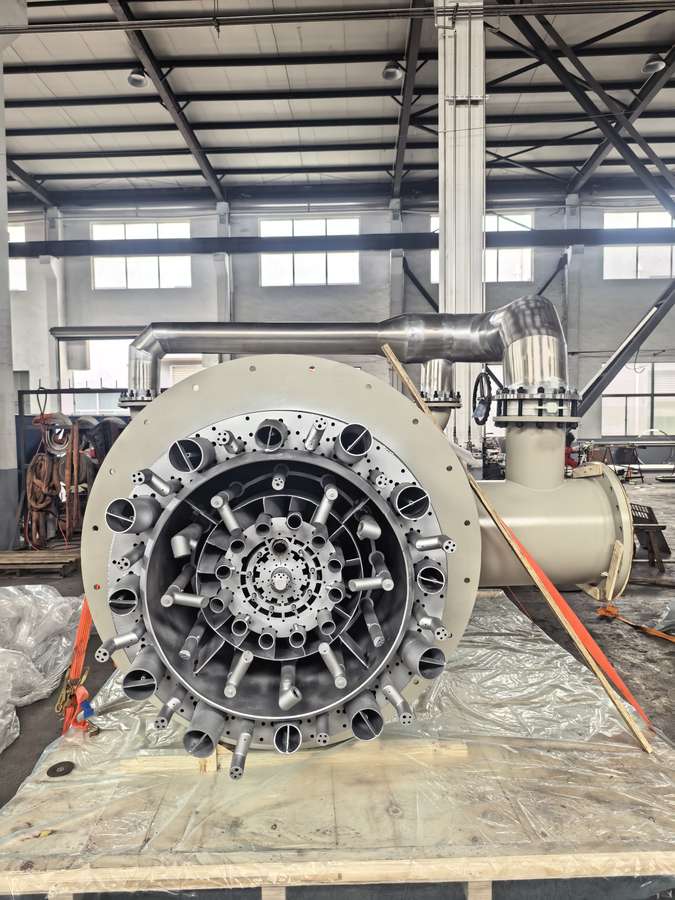

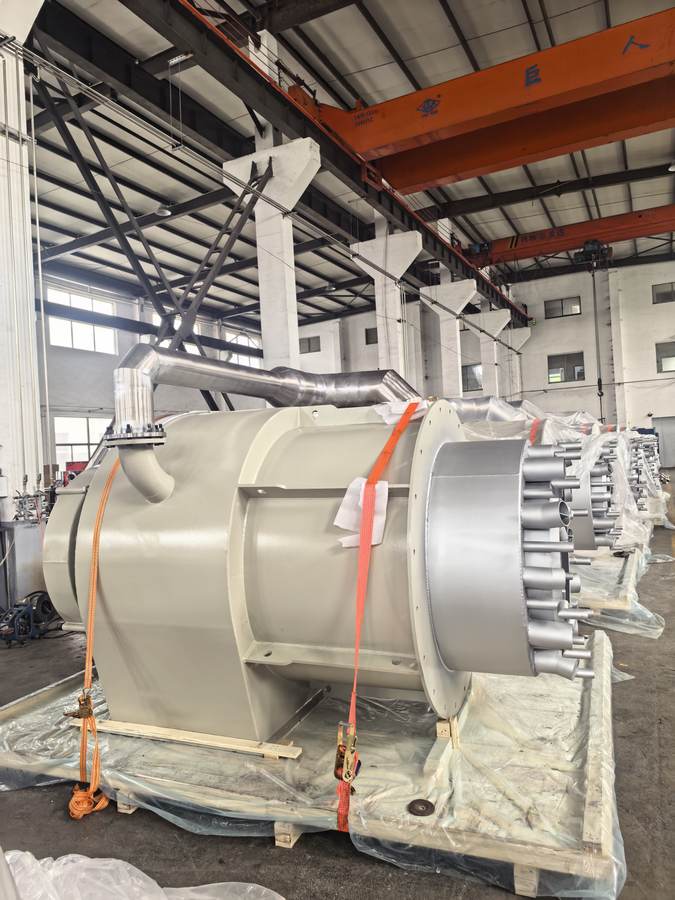

Another major item in the photo series is a large industrial burner system under assembly. The circular burner head contains multiple fuel and air passages arranged around the central combustion zone. The rear casing, structural supports and large stainless-steel duct sections are prepared as an integrated assembly for industrial heating applications.

Manufacturing an industrial burner system of this scale requires careful coordination between the burner head, casing, piping interfaces and supporting structure. Alignment at the large circular mounting flange is especially important because the industrial burner system must connect accurately with the furnace or process chamber during site installation.

The visible stainless-steel ductwork and welded casing illustrate the combination of formed plate, precision connections and large fabricated components used in combustion projects. Workshop assembly gives engineers an opportunity to review interfaces before delivery and reduces avoidable adjustment during site work.

Quality Focus Across Every Custom Skid System

Before shipment, a custom skid system typically passes through dimensional verification, valve-orientation checks, instrument-connection review, control-panel inspection, surface-protection review and final visual documentation. These steps help confirm that equipment is accessible, clearly arranged and ready for the customer's installation plan.

Shanghai Shenqi applies the same project-focused approach to a compact gas control skid, a heavy-duty automated valve assembly and a large industrial burner system. The September workshop update demonstrates the company's ability to manage different equipment configurations while maintaining attention to fabrication detail, modular integration and practical site requirements.

Workshop Photo Gallery

The following photographs present the complete production record supplied for this update, including assembled skids, welding details, internal pipe fabrication, packaged valve modules and the industrial burner assembly.
