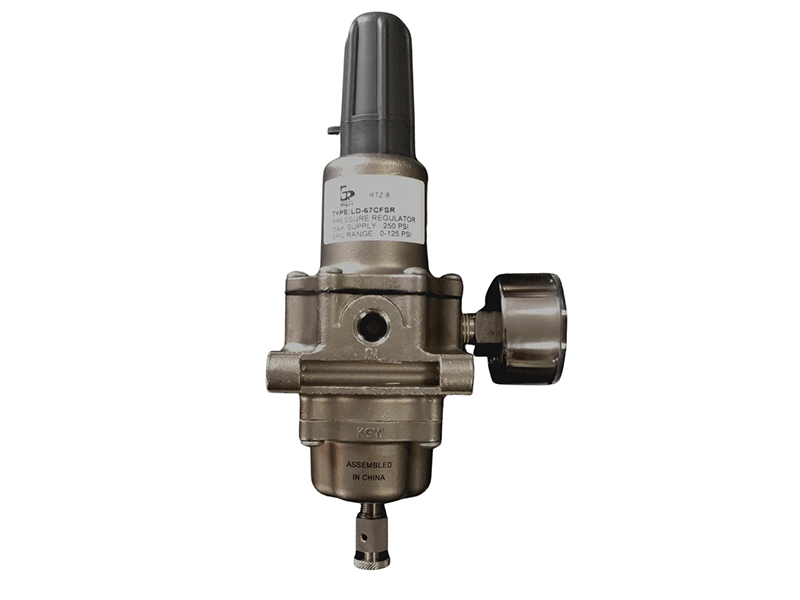

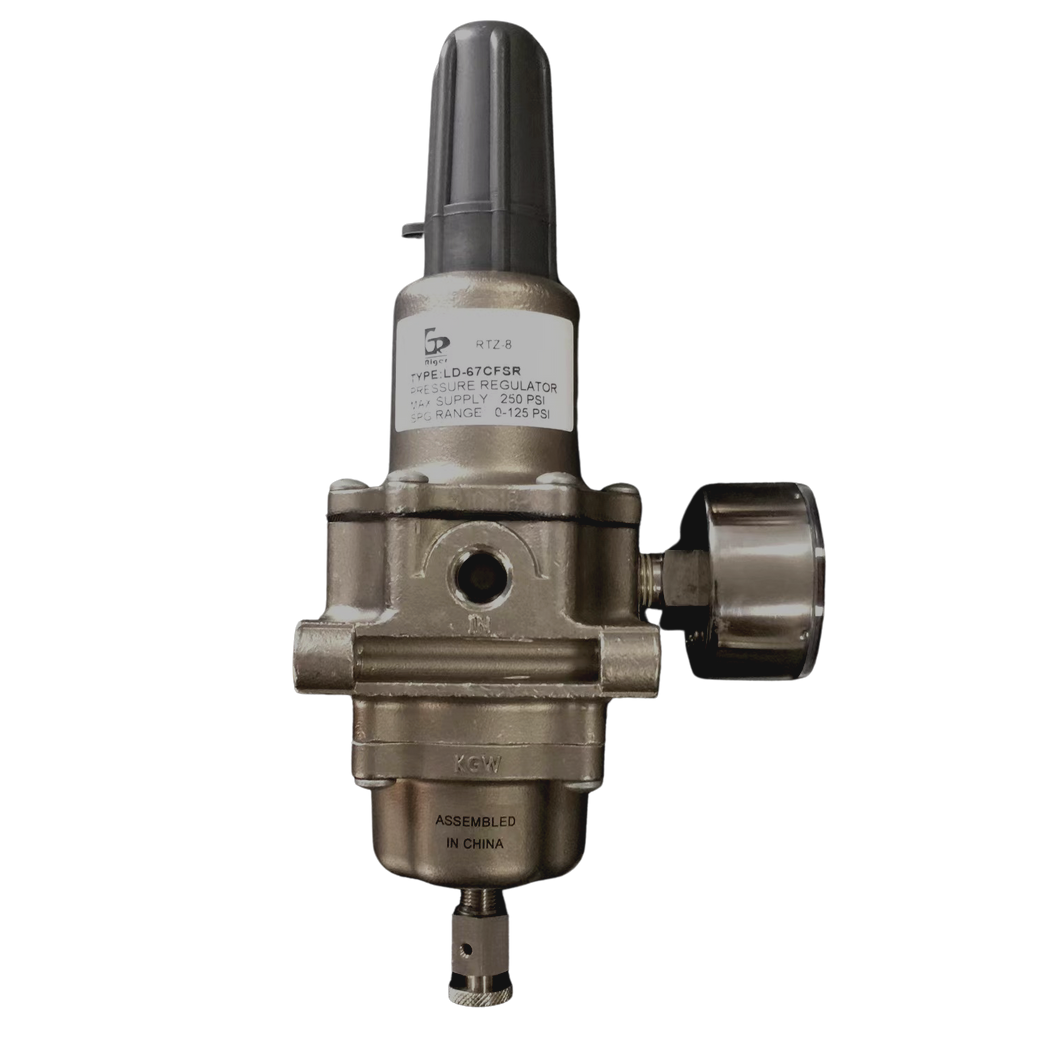

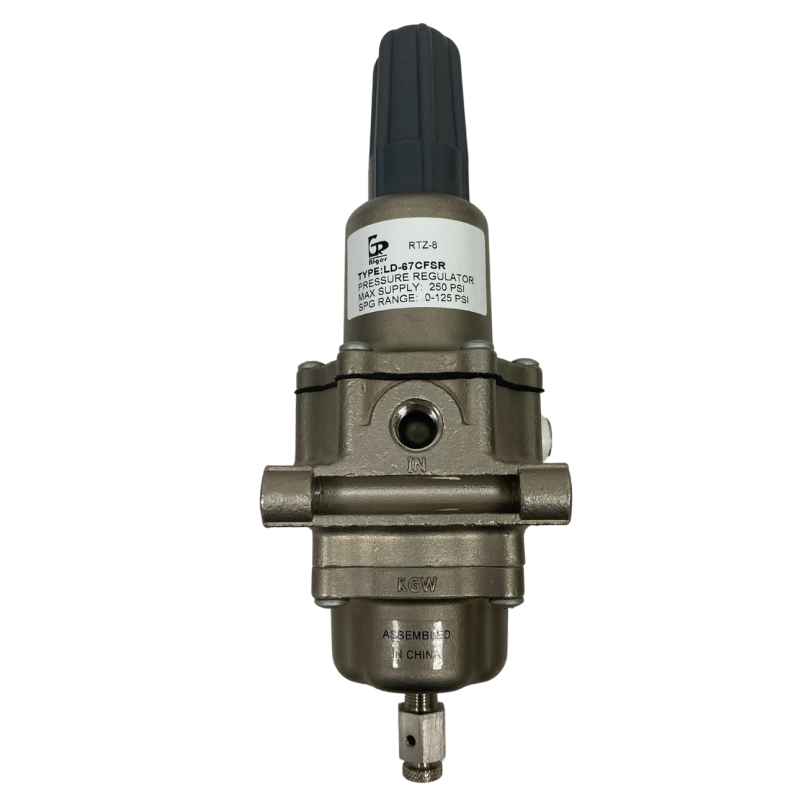

Air Regulator with Filter Pressure Regulating Valve
SQ Air Regulator with Filter Pressure Regulating Valve supports industrial gas pressure regulator valve projects with stable pressure control safe operation and easier maintenance.
- Information
Air Regulator with Filter Pressure Regulating Valve Applications and Related Gas System Solutions
Air Regulator with Filter Pressure Regulating Valve
l Application
This regulator is suitable for gas control systems in the pharmaceutical, chemical, and food and beverage industries, providing continuous pressure reduction to pneumatic and electric pneumatic controllers and other instruments. Other applications include providing pressure relief for devices such as pneumatic chucks, air injectors, and spray guns.
l Character
Small size, easy to install, high pressure resistance, stable performance
l Specs
Inlet pressure P1: ≤1.72MPa
Outlet pressure P2: 0~0.24MPa
0~0.41MPa
0~0.86MPa
0~1.03MPa
Precision grade: AC5
Closing pressure level: SG10
Flow rate: 14-44Nm³/h
Working temperature: -40℃~ 82℃

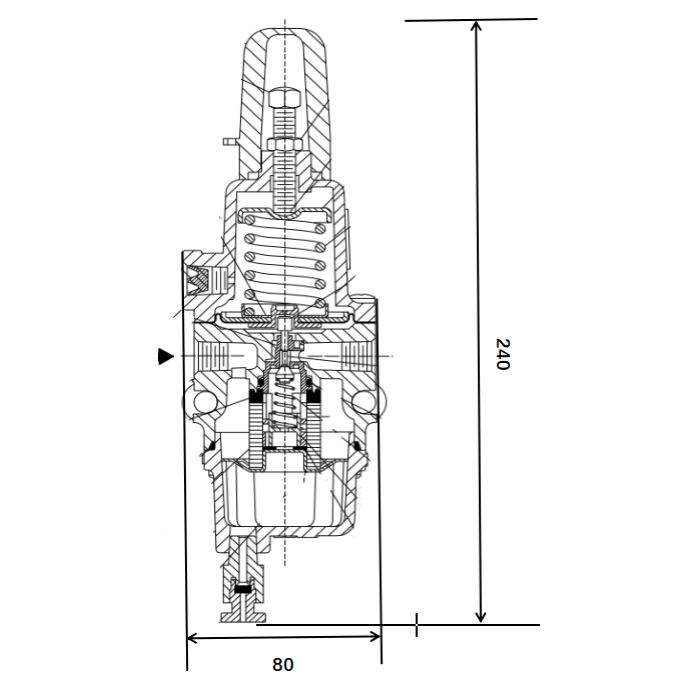

Nominal diameter: DN8xDN8 NPT Female threaded
Related gas system products: RTZ 15 Air Filter Regulator with Gauge 250 PSI Max LD Series, Industrial Primary Gas Regulator DN50 NPT Ports SG15 Safety Rated, 1st Stage Regulator Gas Pressure Regulating Valve.
