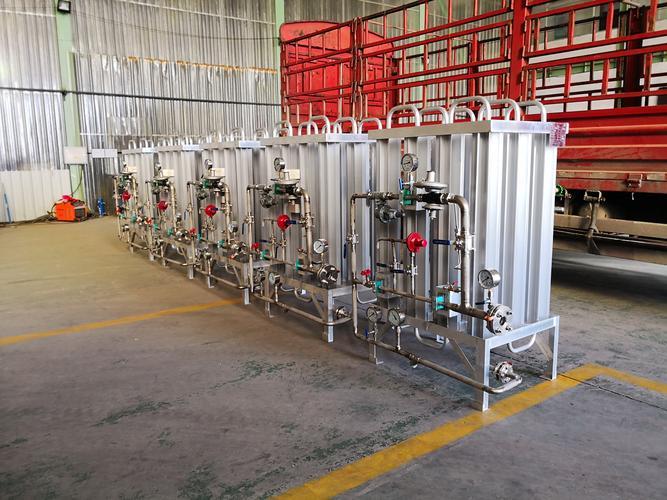

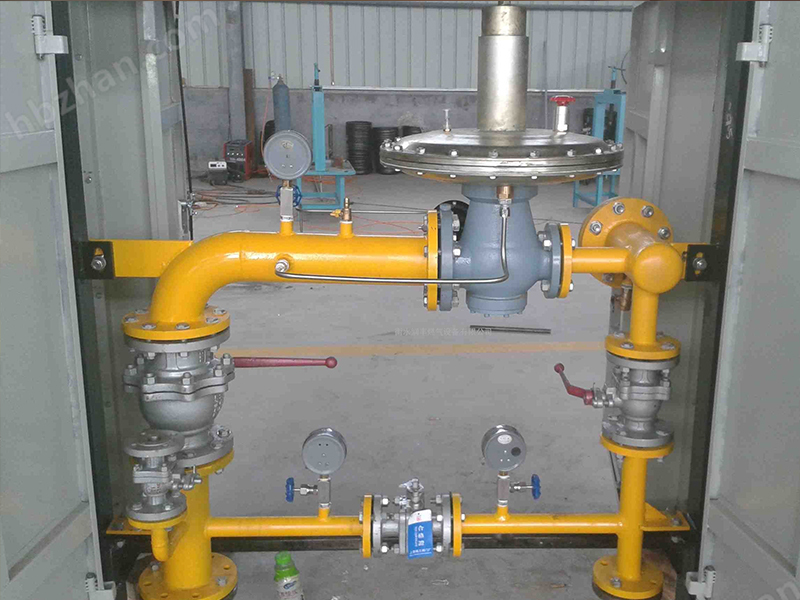

LNG regulation skid description

• An LNG regulation skid, also known as a gas pressure regulator or gas reducer, plays a crucial role in the pipeline management of liquefied natural gas (LNG). This self-operating valve system is specifically designed to maintain a constant downstream pressure by automatically adjusting the flow based on upstream pressure levels.

• Without the need for external power sources, the pressure regulator within an LNG regulation skid utilizes the inherent energy of the gas being regulated to control the pressure drop, ensuring a stable output pressure throughout the process. Its primary function is to safely regulate the high-pressure LNG from storage or transportation to the desired lower pressure for consumption, thereby facilitating efficient distribution and use in various applications.

LNG regulation skid Features

• High flow capacity

• Rapid response, suitable for use with electromagnetic valves

• Simple structure and easy maintenance

• Primarily applicable for direct-fired units, gas boilers, industrial furnaces, and residential network pressure regulation systems

• Can be configured as single bypass (1+1), double bypass (2+1), or (3+1) for diverse outlet pressure settings

• Pressure adjustment accuracy: ±10% (δ)

• Closure pressure: Pb1.25 times P2

• Operating temperature range: -20 to +60°C

• Compatible gases: Natural gas, coke oven gas, LPG, biogas, and other non-corrosive gases

• Available in diameters: DN50, DN80, DN100, DN150, DN200, DN300
