​Pig Launcher and Receiver Skid​

Introduction to Scraper Trap Skid for the Petrochemical Industry

As a leading professional manufacturer, we are proud to present our state-of-the-art Scraper Trap Skid, an essential solution designed specifically for the demanding needs of the petrochemical industry. This innovative equipment plays a crucial role in pipeline maintenance and ensures the efficient and safe operation of petrochemical pipelines.

1. Product Overview

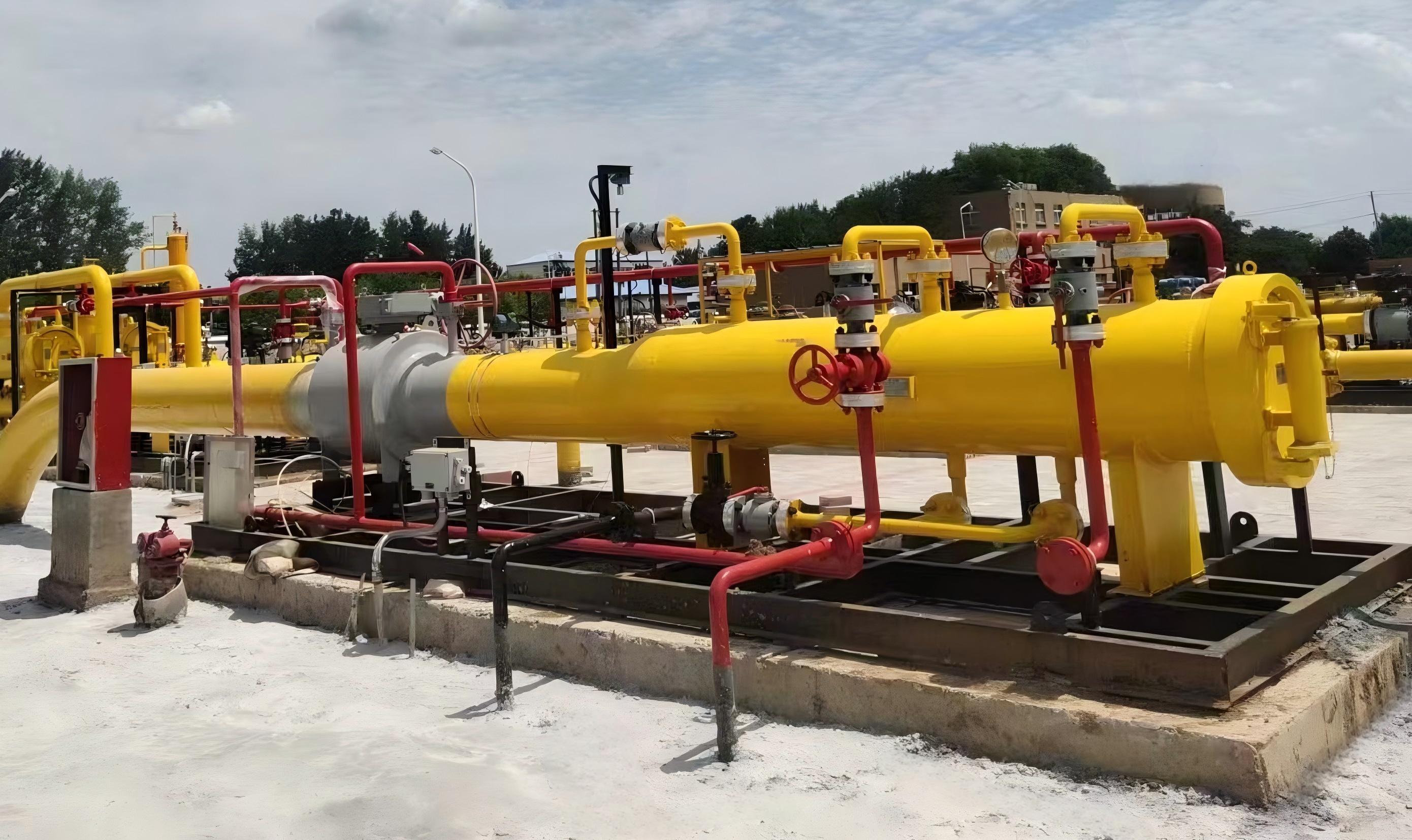

 Our Scraper Trap Skid is a highly integrated and skid-mounted system that combines a pig launcher and a pig receiver. It serves as a specialized device for launching and receiving pigs (pipeline cleaning tools) within petrochemical pipelines. The launcher is responsible for introducing the pigs into the pipeline, while the receiver safely captures the pigs after they have completed their cleaning or inspection tasks. This skid-mounted design allows for easy transportation, installation, and maintenance, making it an ideal choice for various petrochemical applications.

2. Key Features and Advantages

 2.1 High - Quality Materials and Construction

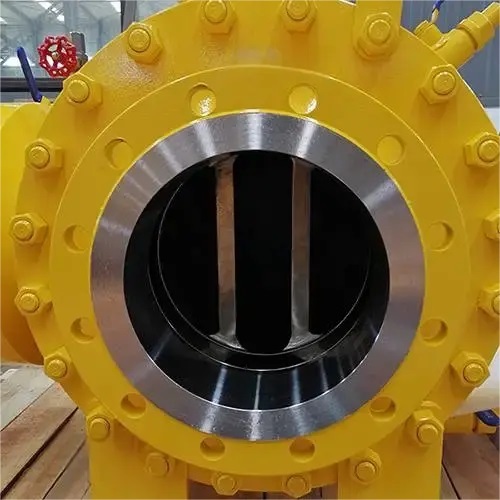

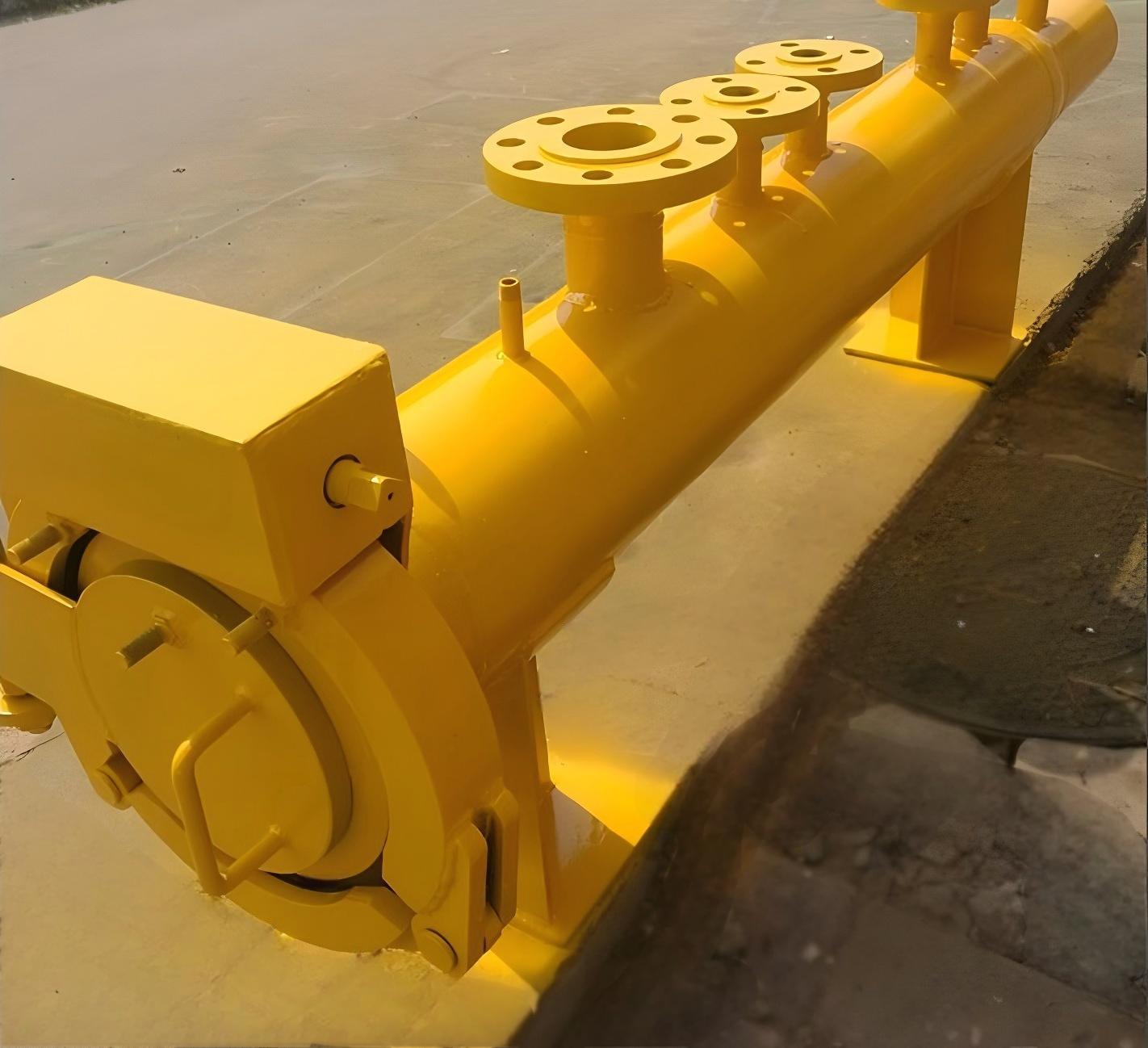

 Constructed with premium - grade materials, our Scraper Trap Skid is built to withstand the harsh conditions of the petrochemical environment. The barrel, or body, is made from either high - strength rolled and welded plate or seamless pipe, ensuring excellent durability and resistance to corrosion and high - pressure operations. The attached reducer sections and branch outlets are fabricated using integrally die - formed extrusions, providing enhanced structural integrity and reliability.

2.2 Customizable Design

 We understand that each petrochemical project has unique requirements. Therefore, our Scraper Trap Skid can be fully customized to meet specific needs. Whether it's the size, pressure rating, or the type of pigs it needs to accommodate (such as scraper pigs, sphere pigs, or "smart" pigs), our engineering team can design a solution that perfectly fits your pipeline system. This flexibility allows for seamless integration into existing or new pipeline infrastructure.

2.3 Safety - First Design

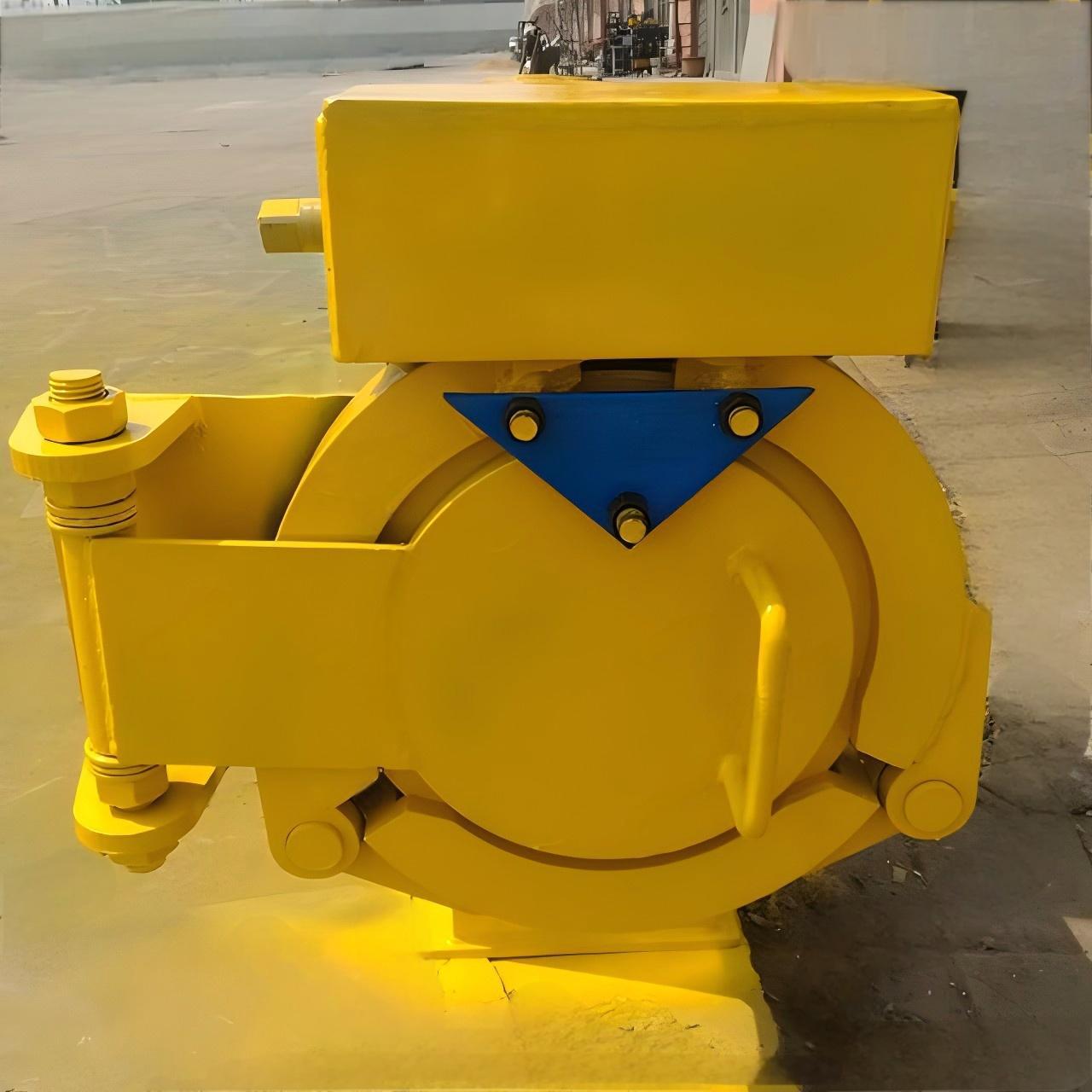

 Safety is our top priority. The Scraper Trap Skid is equipped with a range of safety features to protect both personnel and the pipeline. It includes reliable closure mechanisms, which can be selected from a variety of options such as screwed, clamp ring, or locking ring closures, with designs available from manually operated to fully automated. These closures ensure a secure seal during operation and prevent any potential leaks or accidents. Additionally, the system is designed with proper pressure - relief valves and safety interlocks to prevent over - pressure situations and ensure safe operation at all times.

2.4 Easy Installation and Maintenance

 Thanks to its skid - mounted design, the Scraper Trap Skid can be quickly and easily installed at the desired location. The pre - assembled components on the skid reduce on - site installation time and complexity. All barrel openings are either beveled or flanged, and the equipment is shipped ready for final installation, minimizing the need for extensive on - site fabrication. Maintenance is also straightforward, with easy access to all components for inspection, repair, or replacement. This reduces downtime and ensures the continuous operation of the pipeline.

2.5 High - Pressure Capability

 Our Scraper Trap Skid is designed to handle high - pressure applications. It can be engineered for design pressures ranging from ANSI 300 class ratings up to 20,000 psi, making it suitable for use in deep - water oil and gas exploration and other high - pressure pipeline systems. This high - pressure capability, combined with our advanced manufacturing and testing processes, ensures the reliability and performance of the equipment even in the most challenging operating conditions.

2.6 Compatibility with Pipeline Systems

 The Scraper Trap Skid is designed to be fully compatible with various petrochemical pipeline systems. It can be integrated seamlessly into existing pipeline networks, whether they are for the transportation of crude oil, natural gas, refined products, or other petrochemical fluids. This compatibility ensures that the skid can work effectively with other pipeline components, such as valves, pumps, and meters, to maintain the overall integrity and efficiency of the pipeline system.
