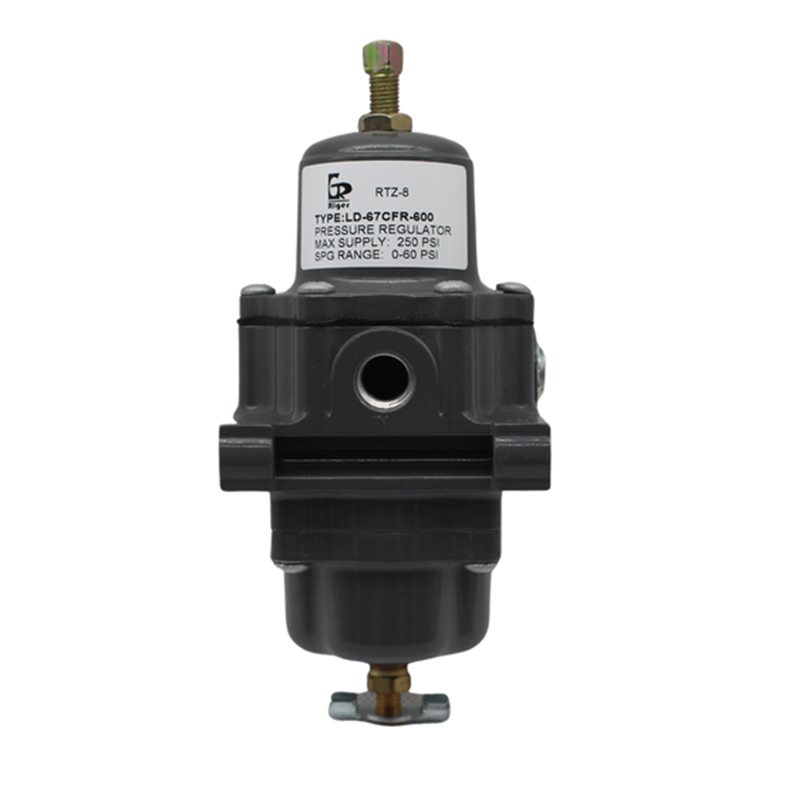

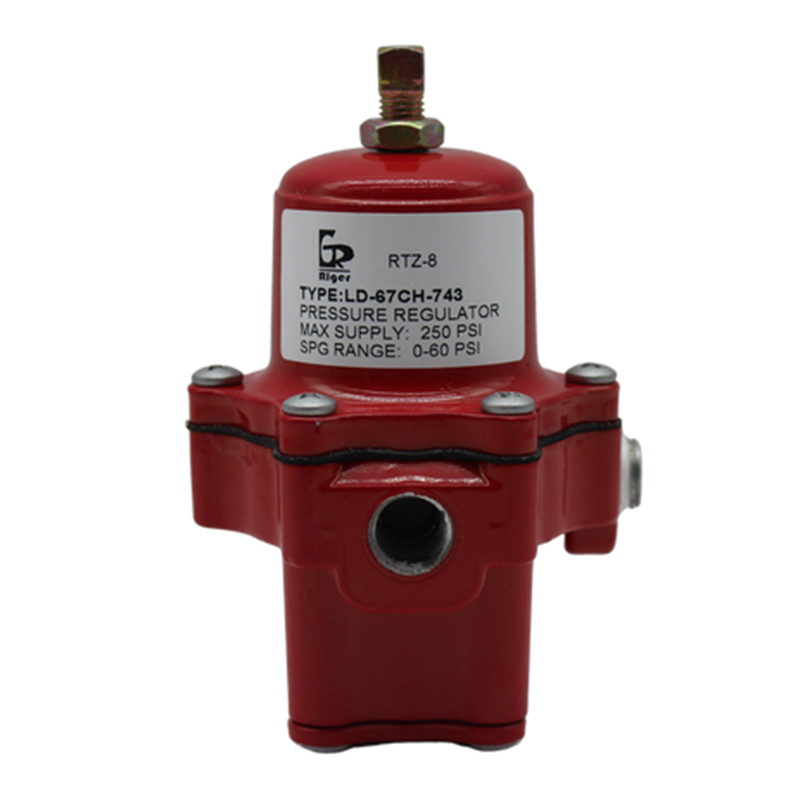

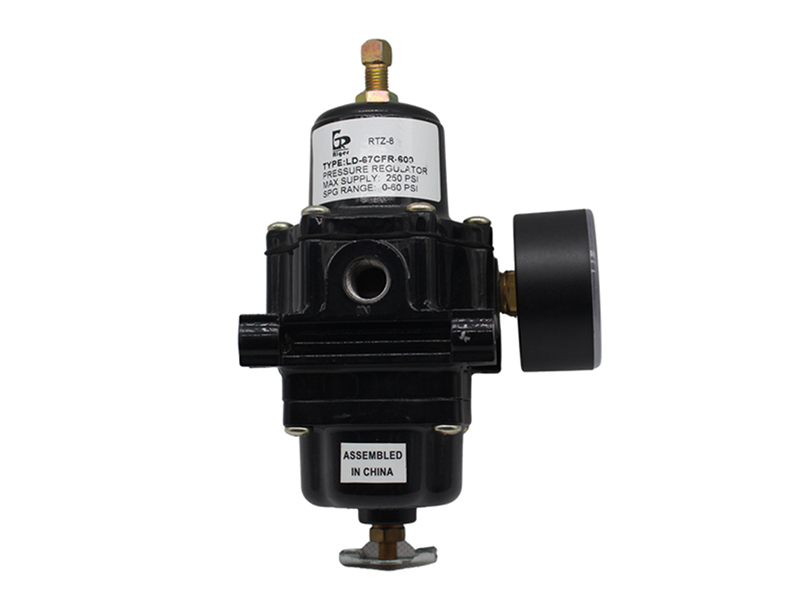

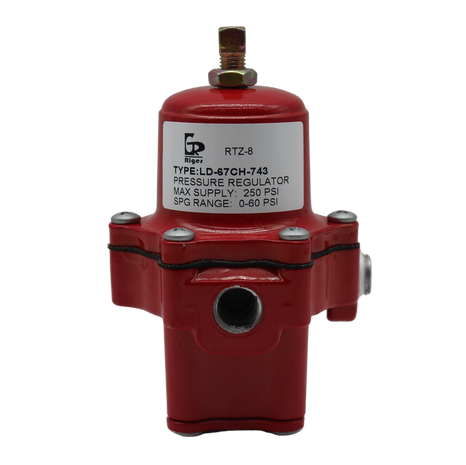

Primary Regulator Gas Pressure Regulating Valve
SQ Primary Regulator Gas Pressure Regulating Valve supports industrial gas pressure regulator valve applications with stable pressure control safe operation modular installation and easier.
- Information
Primary Regulator Gas Pressure Regulating Valve Applications and Related Gas System Solutions
Primary Regulator Gas Pressure Regulating Valve
l Application
This regulator is widely used for primary pressure regulation in gas supply systems and is suitable for industrial gas control systems.
Applicable gases: natural gas, non corrosive gas, air
l Character
This regulator is a direct acting type, with characteristics such as small size, easy installation, high pressure resistance, good pressure regulation and closing performance.
l Specs
Inlet pressure P1: ≤1.7MPa
Outlet pressure P2: 0~0.14MPa
0~0.24MPa
0~0.41MPa
0~0.86MPa
Precision grade: AC5
Closing pressure level: SG10
Flow rate: 20m ³/h
Working temperature: -29℃~ 82℃

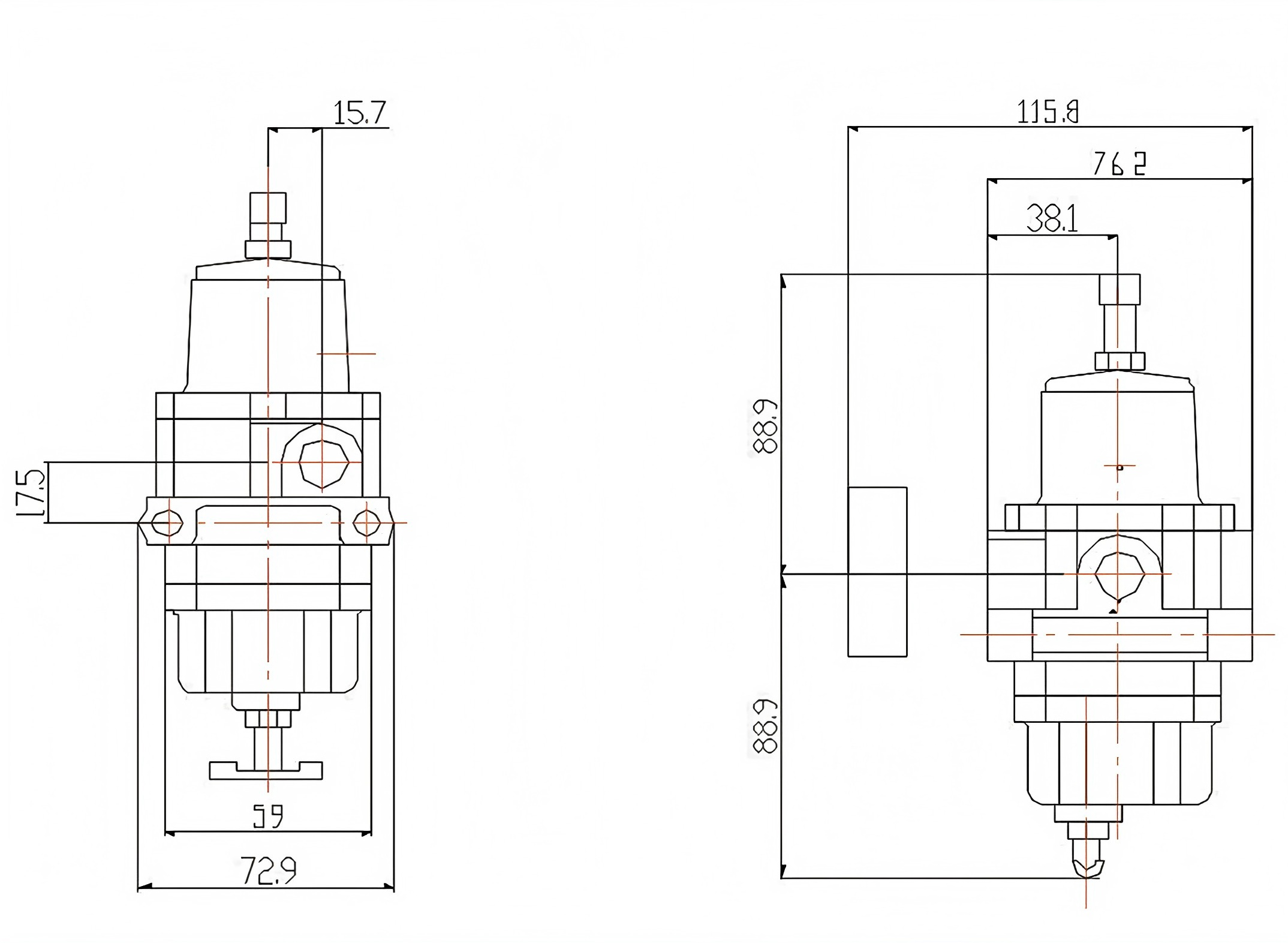

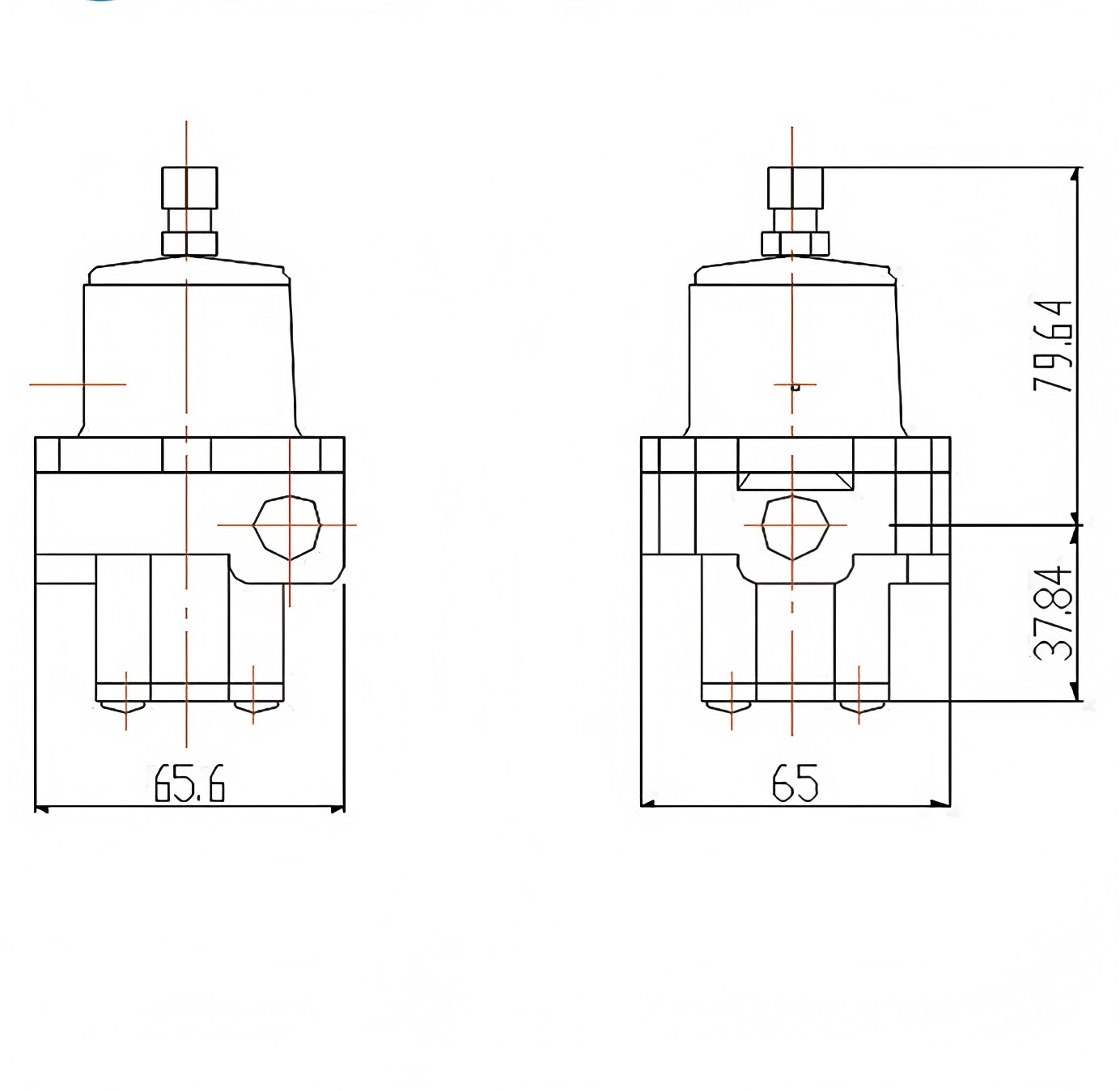

Nominal diameter: 1/4” NPT Female threaded DN8xDN8
