Containerized Skids vs. Structural Frame Skids

Defining the Concepts: Structural Frame Skids and Their Application

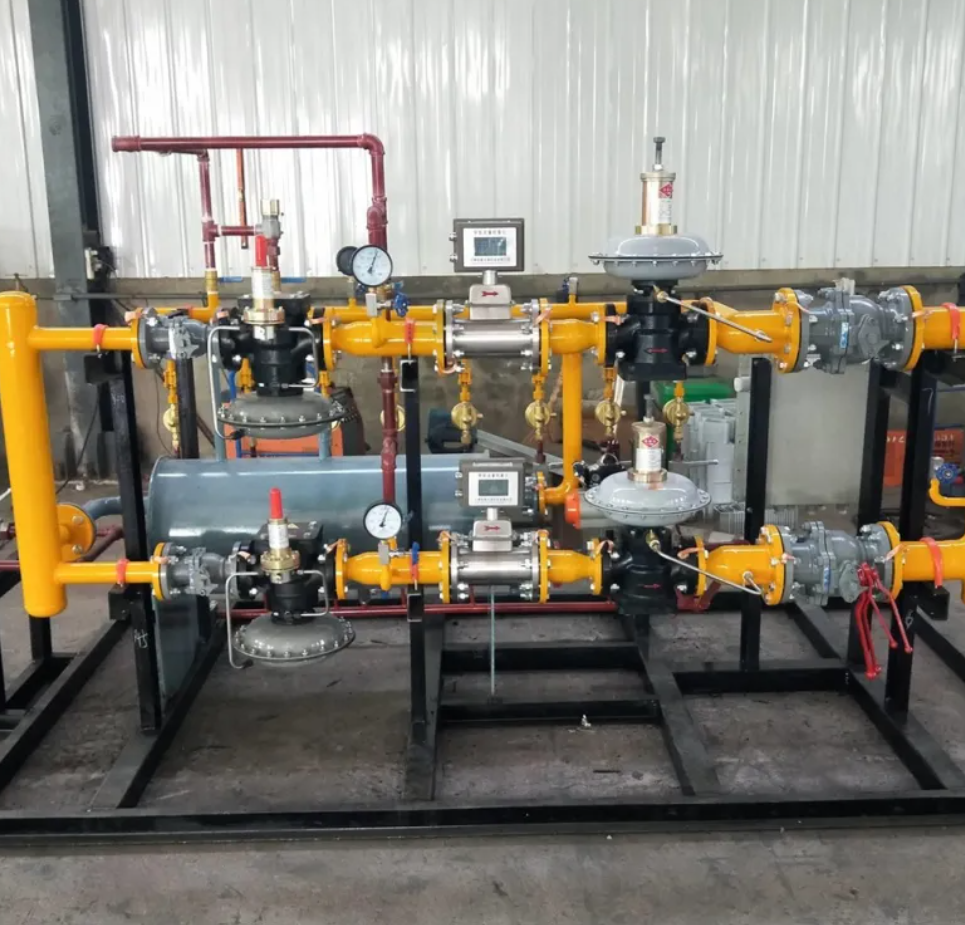

Structural frame skids represent the foundational and most common form of modular process equipment packaging. In this configuration, all components—including pressure vessels, pumps, heat exchangers, valves, piping, and instrumentation—are meticulously mounted onto and integrated within a rigid, open structural steel frame. This frame acts as the primary load-bearing structure, designed to withstand the weight of the equipment, dynamic operational forces, and transportation stresses. The design is inherently open-access, allowing for straightforward inspection, maintenance, and potential future modifications. Structural frame skids are the preferred choice for the majority of industrial applications, such as gas pressure regulating stations, chemical injection skids, and pump modules, especially when installed within protected environments like indoor plants, shelters, or roofed outdoor areas. They offer maximum design flexibility, as the layout is not constrained by external walls, allowing engineers to optimize the process flow and component arrangement for performance, safety, and maintainability. The primary advantage lies in its service-friendly nature, providing technicians with 360-degree access to all equipment.

The Containerized Alternative: Enhanced Protection and Mobility

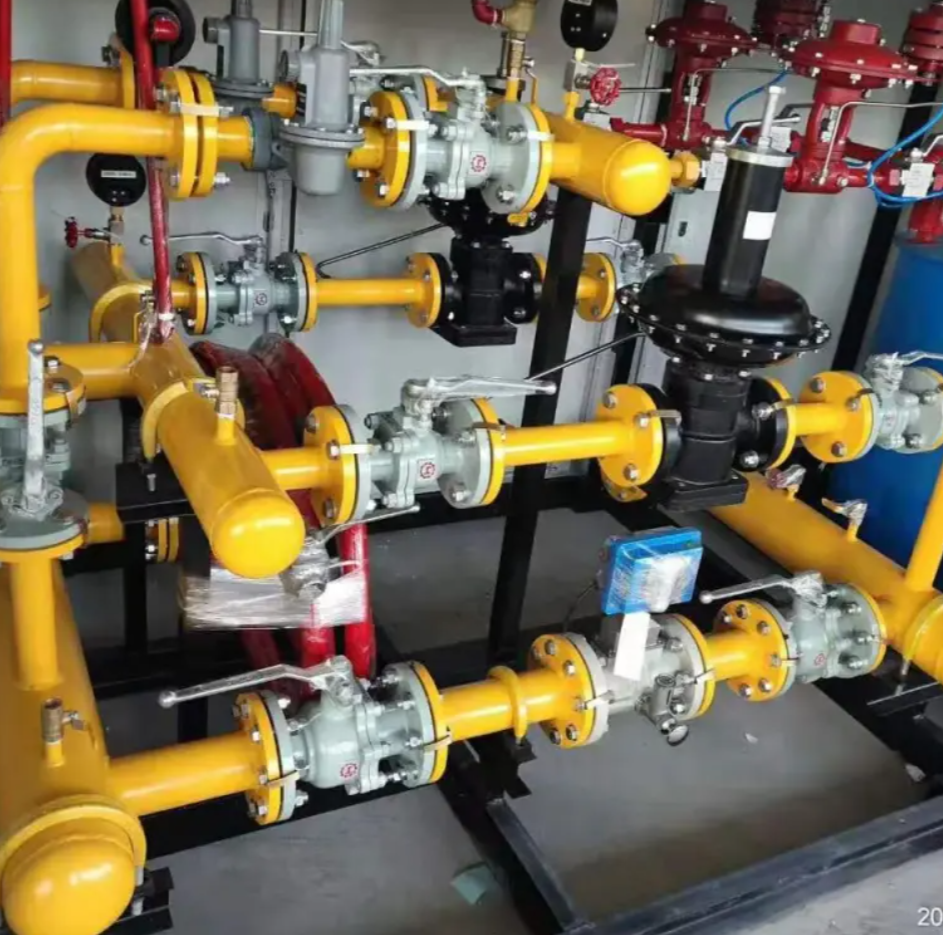

Containerized skids, in contrast, enclose the entire process system within a standardized ISO shipping container structure, typically a 20-foot or 40-foot unit. This enclosure transforms the skid into a robust, all-weather, and highly portable module. The key benefits are exceptional environmental protection and mobility. The sealed, lockable container provides complete shielding from extreme weather (rain, snow, sand, salt spray), UV radiation, and unauthorized access, making it ideal for harsh or exposed locations like remote offshore platforms, desert mining sites, or arctic operations. The standardized external dimensions facilitate easy, cost-effective global transportation via ship, rail, or truck, and allow for simple stacking or placement. This format is often specified for sensitive equipment like analytical instrumentation skids, sophisticated control room modules, or systems requiring a high degree of security and cleanliness. However, the enclosed design can present challenges for heat dissipation, may require integrated HVAC systems, and limits on-site access compared to an open frame, often necessitating more meticulous upfront layout planning.

Critical Selection Factors: Making the Informed Choice

Choosing between a containerized and a structural frame skid is a strategic decision that hinges on a detailed analysis of the project's specific requirements. The decision matrix should evaluate: Deployment Environment: Will the skid be placed indoors, in a weather-protected area, or fully exposed to the elements? Harsh climates strongly favor containerized solutions. Transportation & Logistics: Does the project require frequent relocation or deployment to multiple remote sites? The plug-and-play portability of a container is a major advantage. Security & Environmental Control: Does the process or equipment require strict climate control, cleanliness (e.g., NEMA 4/4X rating), or physical security? Containers excel here. Access for Maintenance: How frequently is hands-on maintenance or adjustment required? Open frame skids offer superior, immediate access. Project Timeline and Cost: While containerized skids can have higher upfront material costs, they often yield savings in reduced on-site civil works, faster installation, and lower transportation expenses. Reputable skid specialists like Shanghai Shenqi Machinery evaluate all these factors, alongside process requirements, to guide clients toward the optimal modular solution that balances performance, protection, and total cost of ownership.

In the end, the choice between containerized and structural frame skids is not about which is universally better, but which is perfectly suited for the application's specific context. Structural frame skids offer unbeatable flexibility, accessibility, and cost-effectiveness for standard industrial installations with adequate shelter. Containerized skids provide unparalleled protection, security, and logistical convenience for demanding, mobile, or exposed deployments. As a comprehensive skid manufacturer, Shanghai Shenqi Machinery's expertise lies in navigating this critical decision with clients, engineering the ideal modular platform—whether an open-frame workhorse or a fortified containerized unit—to ensure reliability, efficiency, and value wherever in the world it operates.
