What is a Gas Pressure Regulating Skid？

What is a Gas Pressure Regulating Skid

The Core Function: Precision Control for Safe and Efficient Gas Supply

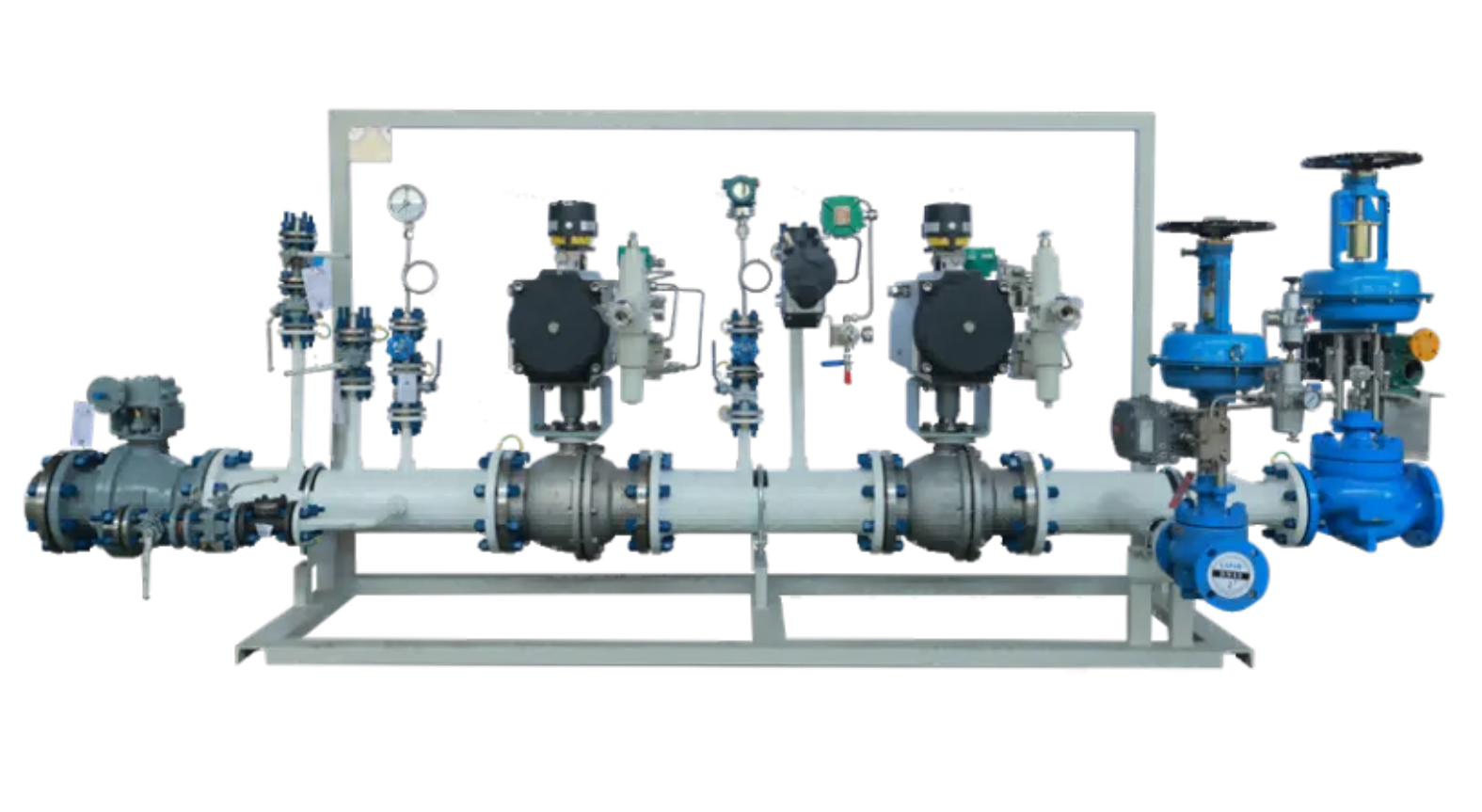

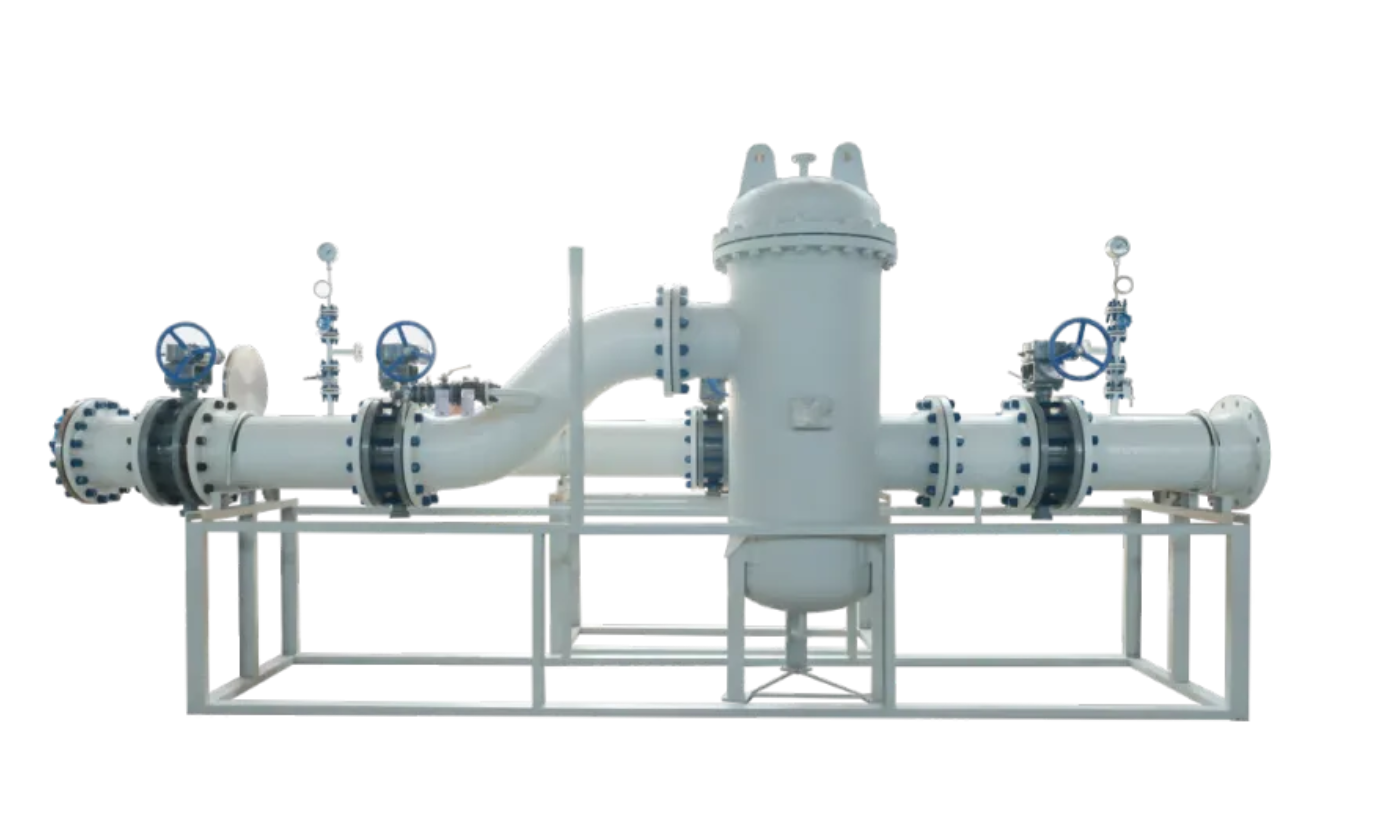

A Gas Pressure Regulating Skid is a pre-engineered, integrated module designed to accurately control, reduce, and stabilize the pressure of a gas stream from a higher inlet pressure to a desired, lower, and stable outlet pressure. It is a critical piece of equipment in any gas distribution or utilization network, acting as a dependable "heart" that ensures downstream equipment and processes receive gas at a precise, safe pressure. The primary function is regulation: maintaining a constant outlet pressure despite fluctuations in the inlet pressure or varying flow rates downstream. Beyond simple reduction, modern skids often incorporate additional functions like filtration to remove particulates, metering for flow measurement, and heating (for natural gas) to prevent freezing during pressure drops. This core functionality ensures safety, protects sensitive equipment from overpressure damage, optimizes combustion efficiency in burners, and guarantees consistent performance for industrial processes. For a company like Shanghai Shenqi Machinery, a Gas Pressure Regulating Skid represents a turnkey solution, where all these components—valves, regulators, filters, instrumentation, and piping—are expertly selected, assembled, and tested on a single structural steel frame for easy transportation and installation.

Key Components and Customized Engineering for Diverse Applications

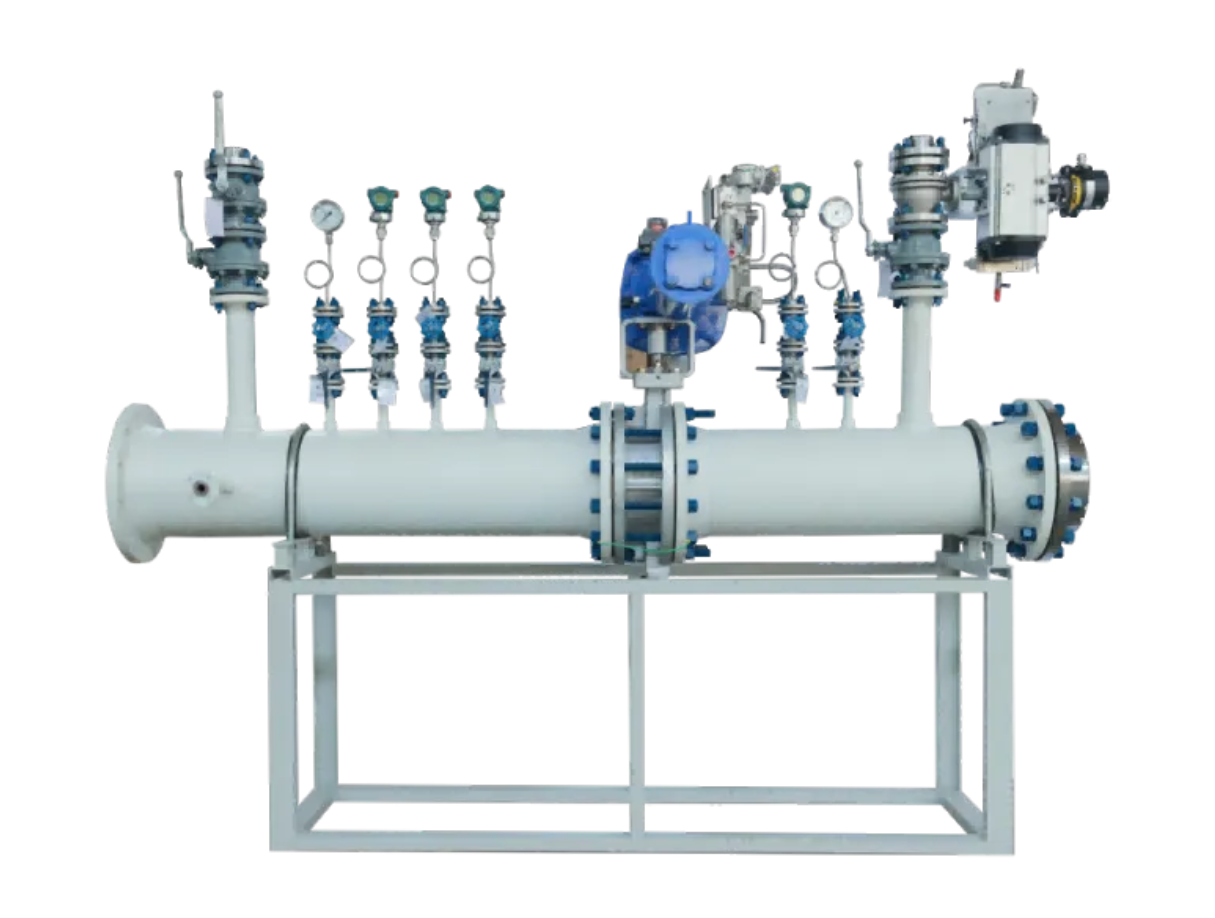

A typical skid is a compact integration of several vital components. The heart of the system is the Pressure Regulator or Pressure Reducing Valve (PRV), which performs the primary pressure reduction. Safety Relief Valves or Safety Shut-off Valves (SSVs) are installed as critical fail-safes to vent excess pressure or isolate the system in case of regulator failure. Filters and Coalescing Filter Separators protect the regulator and downstream equipment by removing solids and liquids. Instrumentation, including pressure gauges, transmitters, and temperature indicators, provides real-time monitoring and data. For control and automation, a PLC Control Panel manages the entire sequence, while Heaters (electric or glycol) prevent hydrate formation in natural gas streams. The genius of a skid lies in its custom engineering. Shenqi Machinery designs these units for specific applications: Natural Gas Pressure Regulating Skids for city gate stations or industrial plants; LNG/CNG Skid Modules for fueling stations; Biogas Pressure Control Skids for renewable energy projects; and Industrial Gas Skids (for O2, N2, Ar) for manufacturing. Each is tailored for the gas type, flow capacity, pressure range, and environmental conditions.

Advantages Over Field-Built Systems: Reliability, Safety, and Cost Efficiency

Opting for a pre-fabricated skid from a specialist like Shenqi offers overwhelming advantages over traditional field-assembled ("stick-built") systems. The foremost benefit is Enhanced Reliability and Safety. The entire assembly is manufactured, welded, and tested in a controlled factory environment under stringent quality protocols (e.g., NDT testing, hydrostatic tests), ensuring superior workmanship and leak-free integrity. All safety interlock logic is pre-programmed and verified. Secondly, it ensures Significant Time and Cost Savings. On-site installation is dramatically reduced to simple connection points ("plug-and-play"), slashing labor costs, expensive field welding hours, and project schedules by weeks or months. Thirdly, it provides Predictable Performance and Easier Maintenance. Every skid undergoes a comprehensive Factory Acceptance Test (FAT) under simulated operating conditions, guaranteeing performance before shipment. The modular, compact design allows for easier access to components for future maintenance. This approach de-risks projects, ensures compliance with international standards, and delivers a robust, ready-to-operate asset.

In essence, a Gas Pressure Regulating Skid is far more than a collection of pipes and valves. It is a sophisticated, self-contained pressure management system that embodies precision engineering, integrated safety, and operational readiness. For industries relying on controlled gas supply—from energy and chemicals to manufacturing and beyond—partnering with an experienced manufacturer like Shenqi Machinery for a custom-designed skid is the most reliable, efficient, and intelligent solution for ensuring a safe, stable, and optimized gas supply.
