1. Why Boiler Rooms Need Stable Gas Pressure Regulation

In an industrial boiler room, gas pressure stability directly affects burner performance, combustion efficiency, flame stability, boiler safety, and overall steam or heating output. If gas pressure fluctuates too much, the burner may operate unstably, combustion may become inefficient, and the boiler control system may trigger alarms or shutdowns.

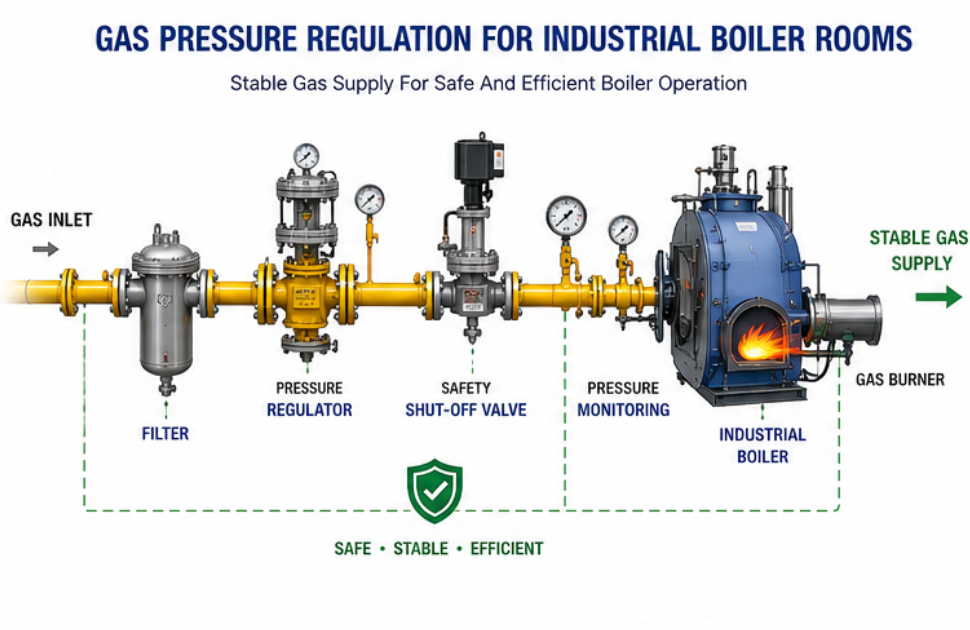

A gas pressure regulating skid helps reduce high or unstable inlet pressure to a controlled outlet pressure required by the boiler burner. It also protects the boiler system from overpressure, underpressure, gas impurities, sudden flow changes, and regulator failure.

For factories, hotels, hospitals, food plants, chemical plants, textile mills, and industrial parks, a reliable gas regulating skid can reduce boiler room operating risk and improve long-term system reliability.

Common Boiler Room Applications

• Industrial gas-fired boiler rooms

• Steam boiler fuel gas supply systems

• Hot water boiler rooms for commercial buildings

• Food processing and sterilization steam systems

• Chemical plant utility boiler systems

• Textile, paper, pharmaceutical, and manufacturing facilities

2. Key Parameters Required Before Designing The Skid

Before selecting a gas pressure regulating skid for a boiler room, buyers should provide complete working condition data. The supplier needs to understand the gas medium, inlet pressure range, required outlet pressure, gas flow demand, boiler capacity, burner pressure requirement, installation location, and control requirements.

Flow range is especially important. Boiler gas demand may change between startup, low load, normal operation, and peak load. If the regulator is selected only according to one normal flow value, the system may not perform well under low-flow or high-flow conditions.

A complete inquiry helps the manufacturer select the correct regulator, filter, pipe size, safety shut-off valve, relief device, pressure transmitter, and control configuration.

Boiler Room Gas Skid Data Checklist

3. Main Components Of A Boiler Room Gas Regulating Skid

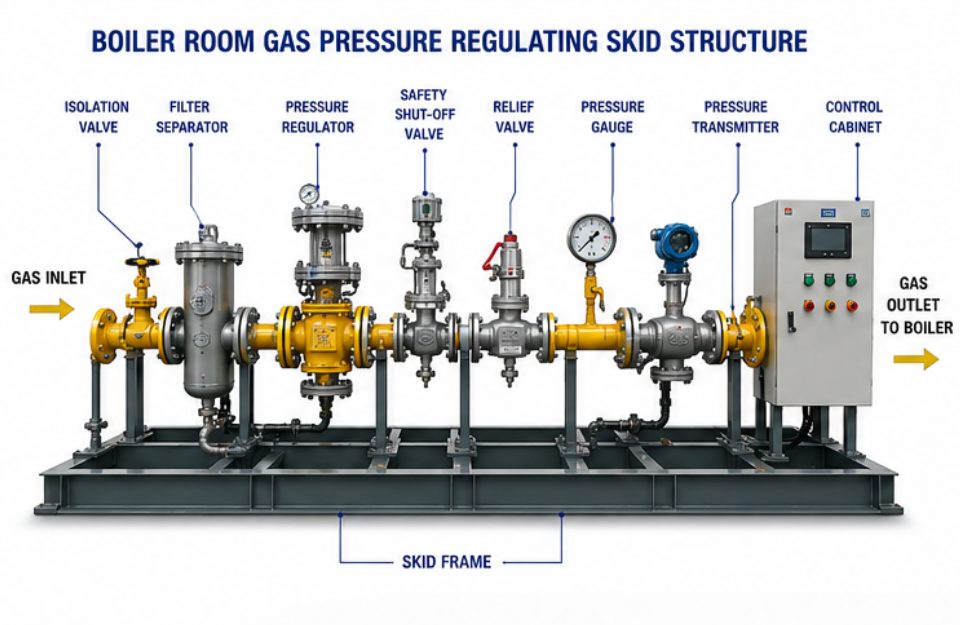

A gas pressure regulating skid for boiler rooms is usually designed as an integrated package. It may include inlet isolation valve, filter or filter separator, pressure regulator, safety shut-off valve, relief valve or monitor regulator, pressure gauges, pressure transmitters, outlet isolation valve, vent line, control cabinet, and skid-mounted steel frame.

Filtration is important because dust, rust particles, condensate, or other impurities may affect regulator accuracy and valve sealing. Safety shut-off devices are also critical because boiler burners require a safe pressure range. If downstream pressure becomes too high or too low, the gas supply should be isolated quickly.

Depending on project requirements, the skid may also include gas leak detection, emergency shut-off valve, remote monitoring signal, local alarm, flow meter, bypass line, or one-duty-one-standby regulation line.

4. Safety, Control, And Layout Considerations

Boiler room gas systems should be designed with safety as a priority. The skid should include suitable overpressure protection, underpressure protection, pressure monitoring, emergency isolation, and safe venting when required. For automated boiler rooms, signal output and alarm functions may need to connect with the boiler control system or plant monitoring system.

Layout also matters. The skid should provide enough space for filter maintenance, regulator adjustment, valve inspection, instrument calibration, and safe operation. Inlet and outlet direction, pipe connection standard, skid footprint, lifting points, and installation environment should be confirmed before fabrication.

If the boiler room has limited space, a skid-mounted design can reduce site installation work and make the gas regulating system more compact, organized, and easier to inspect.

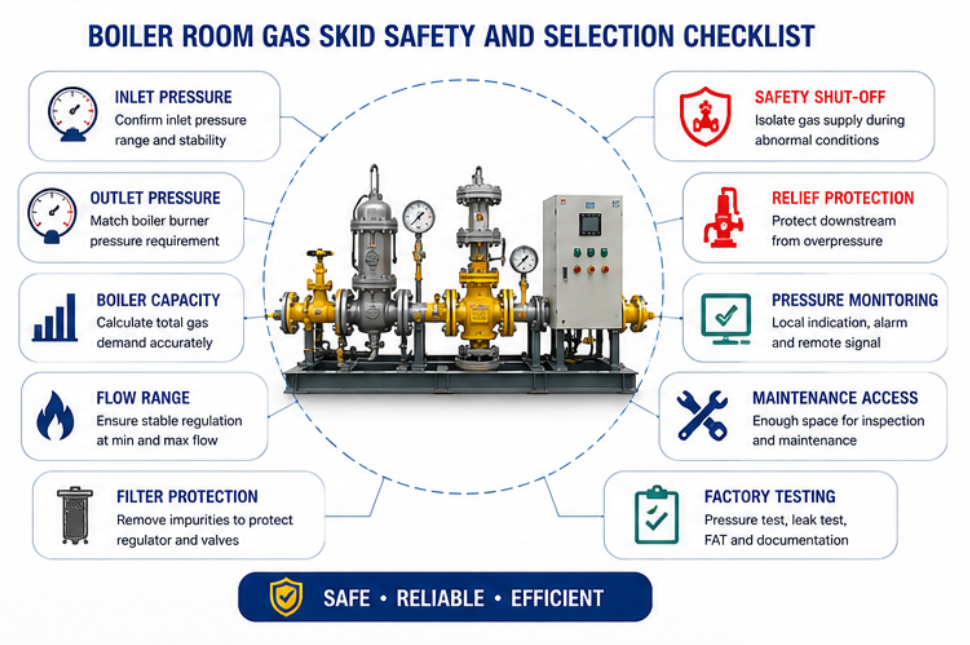

Safety And Layout Checklist

• Confirm overpressure and underpressure protection requirements.

• Check safety shut-off valve and relief protection configuration.

• Confirm pressure gauge and pressure transmitter locations.

• Review filter maintenance space and drain arrangement.

• Confirm gas leak detection and emergency shut-off requirement.

• Check skid footprint, inlet/outlet direction, and lifting points.

• Confirm control signal, alarm output, and remote monitoring needs.

• Review FAT, pressure test, leak test, and final documentation requirements.

5. Why Choose A Skid-Mounted Design For Boiler Room Projects

Compared with assembling valves and instruments separately on site, a skid-mounted gas pressure regulating system offers better factory control and easier project management. The supplier can complete layout design, piping assembly, component installation, pressure testing, leak testing, functional inspection, and packing before shipment.

For overseas boiler room projects, factory-assembled skids can reduce site welding, installation errors, missing components, and commissioning uncertainty. Buyers can review drawings, photos, test reports, and documents before the skid leaves the factory.

A well-designed skid also makes future operation easier because all major components are arranged in a clear and accessible way.

Final Buyer Checklist

• Provide gas medium, inlet pressure, outlet pressure, and flow range.

• Confirm boiler capacity and burner pressure requirement.

• Review single-stage or two-stage regulation design.

• Check filter, regulator, shut-off valve, and relief protection scope.

• Confirm pressure monitoring and alarm signal requirements.

• Review skid layout and maintenance access.

• Request pressure test, leak test, FAT report, and final drawings.

• Confirm packing, lifting, and delivery details before shipment.

Conclusion

A gas pressure regulating skid for industrial boiler rooms should be selected according to real boiler gas demand, pressure range, flow conditions, safety requirements, control needs, and site layout. A complete skid solution helps stabilize gas pressure, protect the boiler burner system, simplify installation, and reduce operational risk.

For industrial buyers, the best approach is to provide complete working conditions and work with a supplier that can design, assemble, test, and document the gas regulating skid as an integrated boiler room solution.

FAQ

What is a gas pressure regulating skid for boiler rooms?

It is a skid-mounted system used to filter, reduce, stabilize, monitor, and protect gas pressure before gas enters the boiler burner system.

What information is needed before quotation?

Buyers should provide gas medium, inlet pressure, outlet pressure, gas flow range, boiler capacity, burner pressure requirement, site layout, and safety requirements.

Why is a safety shut-off valve important?

It helps isolate the gas supply during abnormal pressure conditions, protecting downstream boiler equipment and improving system safety.

Is a skid-mounted design better than site assembly?

For many boiler room projects, skid-mounted design reduces site installation work, improves factory quality control, and makes testing and documentation easier before delivery.
