How To Prepare Working Conditions For A Custom Skid System Quote
2026-06-09 17:34Send Complete Working Conditions For A Faster Quote
To prepare a reliable custom skid system quote, please provide medium type, pressure range, temperature, flow range, application, control requirements, safety requirements, site layout, connection standard, and required documents.
1. Start With The Medium And Application
The first step is to clearly define what medium the skid system will handle. Gas, steam, water, condensate, nitrogen, fuel gas, LNG vaporized gas, compressed air, or other process media may require different valves, materials, seals, filters, instruments, safety devices, and testing methods.
The application is also important. A gas regulating skid for a boiler room is different from a natural gas metering skid for a gas station. A steam pressure reducing skid is different from a PRDS system with desuperheating. The more clearly the application is described, the more accurate the supplier’s quotation will be.
Application Information To Provide
Medium type and composition if available
Project application, such as gas regulation, gas metering, steam pressure reduction, or PRDS
Downstream equipment, such as boiler, burner, heat exchanger, turbine, process line, or utility network
New project, replacement project, expansion project, or retrofit project
Indoor or outdoor installation environment
Project standard, inspection requirement, or local code requirement
2. Provide Pressure, Temperature, And Flow Range
Pressure, temperature, and flow data are the foundation of a custom skid system quote. A supplier cannot properly select regulators, control valves, flow meters, safety valves, pipe sizes, instruments, or skid layout without these parameters.
Many quotation mistakes happen because buyers only provide one flow value or a pipe diameter. In real operation, the system may work under startup, low-load, normal-load, and peak-load conditions. Minimum, normal, and maximum flow are all important for correct selection.
Core Working Conditions Checklist
| Parameter | What To Provide | Why It Matters |
|---|---|---|
| Inlet Pressure | Minimum and maximum inlet pressure | Determines pressure class, valve rating, and system protection. |
| Outlet Pressure | Required downstream pressure | Defines the operating target for downstream users. |
| Temperature | Inlet and outlet temperature if required | Affects material, insulation, sealing, and desuperheating design. |
| Flow Range | Minimum, normal, and maximum flow | Ensures stable performance under real operating loads. |
| Pipe Size And Connection | Pipe diameter, flange standard, inlet/outlet direction | Affects skid layout and site installation compatibility. |
3. Clarify Control, Safety, And Instrument Requirements
A custom skid-mounted system often includes more than mechanical piping. It may also include control valves, actuators, transmitters, signal output, alarm logic, control cabinet, PLC / DCS / SCADA interface, safety shut-off, relief protection, emergency shutdown, and remote monitoring.
If these requirements are not confirmed before quotation, the proposal may look cheaper but may exclude important control and safety components. Buyers should always compare the complete scope of supply instead of only comparing the final price.
| Requirement | Examples |
|---|---|
| Control Function | Pressure control, temperature control, flow metering, automatic regulation, local or remote control. |
| Safety Protection | Safety valve, relief valve, safety shut-off valve, emergency shut-off, pressure alarms, gas leak detection. |

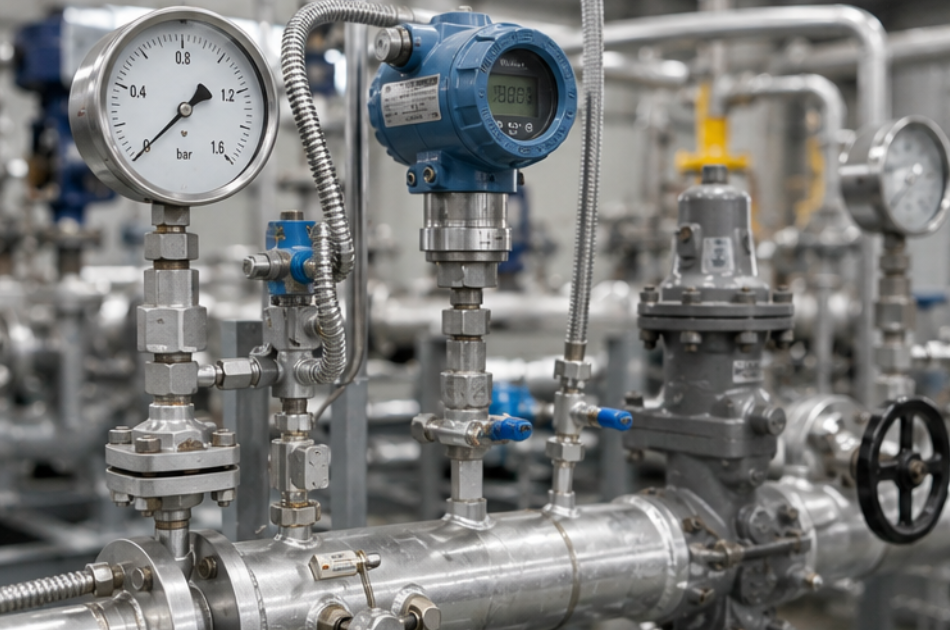

| Instrumentation | Pressure gauge, pressure transmitter, temperature sensor, flow meter, flow computer, local display. |
| Control Interface | 4-20mA, Modbus, PLC, DCS, SCADA, control cabinet, alarm output, remote monitoring. |
| Installation Environment | Indoor, outdoor, hazardous area, corrosive environment, coastal area, cold area, high humidity site. |
4. Prepare Site Layout, Interface, And Delivery Requirements
Site layout can strongly affect skid design. The supplier needs to know available installation space, inlet and outlet direction, pipe elevation, maintenance access, lifting method, foundation condition, control cabinet location, and transportation limits.
If layout information is missing, the skid may be difficult to install after delivery. For overseas projects, this can lead to expensive site modification, delayed commissioning, and extra communication costs.
Site And Delivery Checklist
Available skid installation space and foundation condition
Inlet and outlet direction, pipe elevation, and connection standard
Indoor or outdoor installation environment
Maintenance access for valves, filters, instruments, and control cabinet
Lifting points, transportation limits, and packing method
Required delivery schedule and project timeline
Site photos, layout drawings, or existing piping drawings if available
Any project-specific inspection, export, or documentation requirement
5. Confirm Testing, Documents, And Supplier Scope

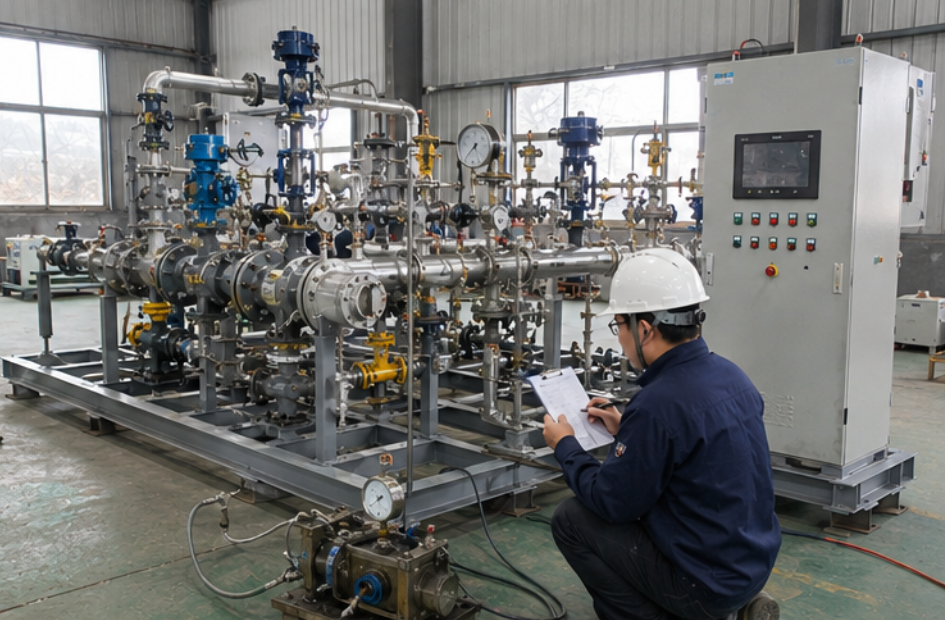

A complete custom skid system quote should clearly define testing scope and document scope. Buyers should confirm whether pressure test, leak test, functional inspection, instrument check, control cabinet inspection, FAT, final inspection photos, and packing inspection are included.
Documents are also important for installation, commissioning, operation, and maintenance. A professional supplier should provide drawings, data sheets, test reports, manuals, packing information, and after-sales support details.
Practical Tip
A useful custom skid quote should not only list a price. It should clearly show design basis, main components, scope of supply, testing scope, drawings, documents, delivery time, packing method, and after-sales support.
Final Document Checklist
Technical proposal and design basis
P&ID and general arrangement drawing
Main component list and data sheets
Instrument and control cabinet documents if applicable
Pressure test, leak test, and FAT report if required
Final inspection photos before shipment
Operation and maintenance manual
Packing list, lifting information, and delivery documents
Conclusion
Preparing complete working conditions is the most important step before requesting a custom skid system quote. Buyers should provide medium type, pressure, temperature, flow range, application, control requirements, safety requirements, site layout, testing scope, and documentation needs.
Clear project information helps the supplier prepare a more accurate quotation, reduce technical changes, avoid missing components, and design a skid-mounted system that fits the real project site.
FAQ
What information is needed for a custom skid system quote?
Buyers should provide medium type, pressure, temperature, flow range, process purpose, control requirements, safety requirements, site layout, connection standard, testing scope, and documentation needs.
Why is flow range important?
Minimum, normal, and maximum flow help the supplier select suitable valves, regulators, flow meters, and safety devices for real operating conditions.
Why should buyers provide site layout?
Site layout affects skid footprint, inlet and outlet direction, maintenance access, lifting points, control cabinet position, and installation compatibility.
What documents should be requested from the supplier?
Buyers can request P&ID, GA drawing, component list, data sheets, test reports, FAT documents, operation manual, packing list, and final inspection photos.
