Steam Pressure Reducing And Desuperheating System For Power Plants
2026-06-08 17:30Send Steam And Spray Water Parameters For A Quote
To design a suitable pressure reducing and desuperheating system, please provide inlet steam pressure, inlet temperature, outlet pressure, outlet temperature, steam flow range, spray water pressure, spray water temperature, water quality, and power plant application.
1. Why Power Plants Need Pressure Reducing And Desuperheating Systems
In power plants, steam is often generated or distributed at high pressure and high temperature. However, auxiliary systems and downstream users may require lower pressure and controlled steam temperature. If pressure or temperature is not controlled properly, downstream equipment may experience thermal stress, unstable operation, poor heat transfer, safety alarms, or equipment damage.
A steam pressure reducing and desuperheating system combines two key functions. The pressure reducing section lowers steam pressure through a control valve, while the desuperheating section injects controlled spray water into the steam flow to reduce temperature. Together, they provide stable steam conditions for power plant utility and process systems.
For power plant owners, EPC contractors, engineering companies, and maintenance teams, a skid-mounted PRDS solution can reduce site installation work, improve factory quality control, and make system testing and documentation more manageable.
Typical Power Plant Applications
Auxiliary steam pressure and temperature control
Steam supply for heat exchangers and deaerators
Steam bypass pressure reducing and desuperheating systems
District heating steam temperature control
Process steam supply for power plant utility users
Skid-mounted PRDS packages for new or retrofit power plant projects
2. Key Data Needed Before System Design
A pressure reducing and desuperheating system should be designed according to real power plant working conditions. Buyers should not only provide pipe size or a general steam line description. The supplier needs complete pressure, temperature, flow, spray water, control, safety, and layout data before preparing a reliable proposal.
Power plant steam load may change during startup, shutdown, load adjustment, bypass operation, and normal plant operation. If the pressure reducing valve, desuperheater, or spray water control valve is selected only for one design point, the system may suffer from unstable pressure, poor temperature control, water carryover, vibration, or wet steam.
Power Plant PRDS Quotation Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure | Determines valve pressure class, pressure drop, pipe rating, and system design basis. |
| Inlet Steam Temperature | Defines desuperheating demand, material selection, and temperature control range. |
| Outlet Pressure And Temperature | Sets the final steam condition required by downstream power plant users. |
| Minimum / Normal / Maximum Flow | Ensures stable control across different load conditions. |
| Spray Water Conditions | Affects nozzle atomization, evaporation distance, and outlet temperature stability. |
| Control System Requirement | Defines control cabinet, actuator, positioner, PLC / DCS interface, and alarm logic. |
3. Main Components Of A Steam Pressure Reducing And Desuperheating System

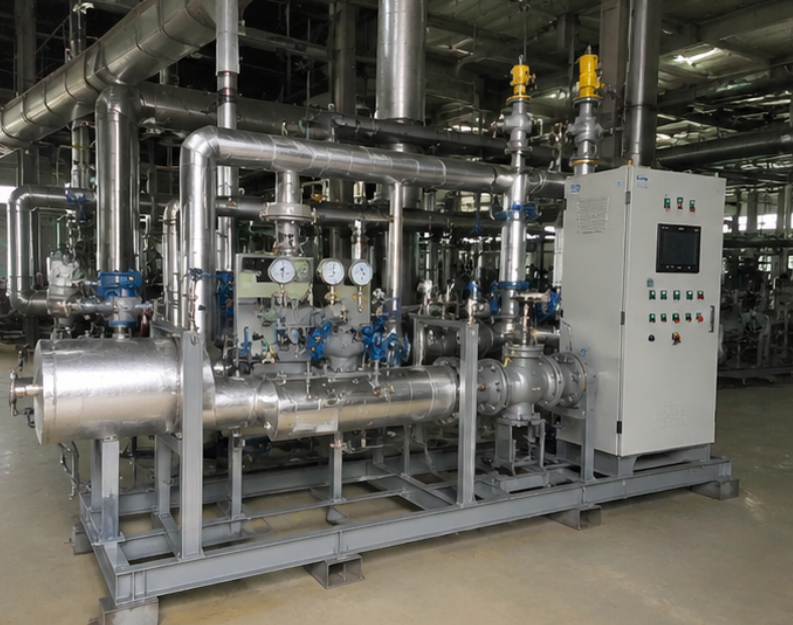

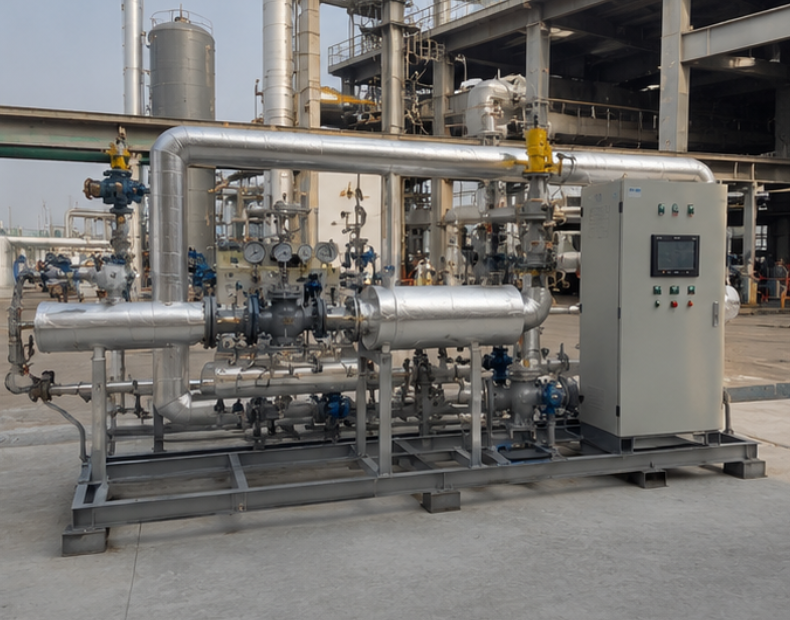

A complete steam pressure reducing and desuperheating system for power plants is usually supplied as a skid-mounted package. It may include inlet isolation valve, strainer, pressure reducing control valve, actuator, positioner, desuperheater, spray water control valve, spray water inlet line, safety valve, pressure gauges, pressure transmitters, temperature sensors, drain valves, vent valves, control cabinet, piping, pipe supports, and skid frame.

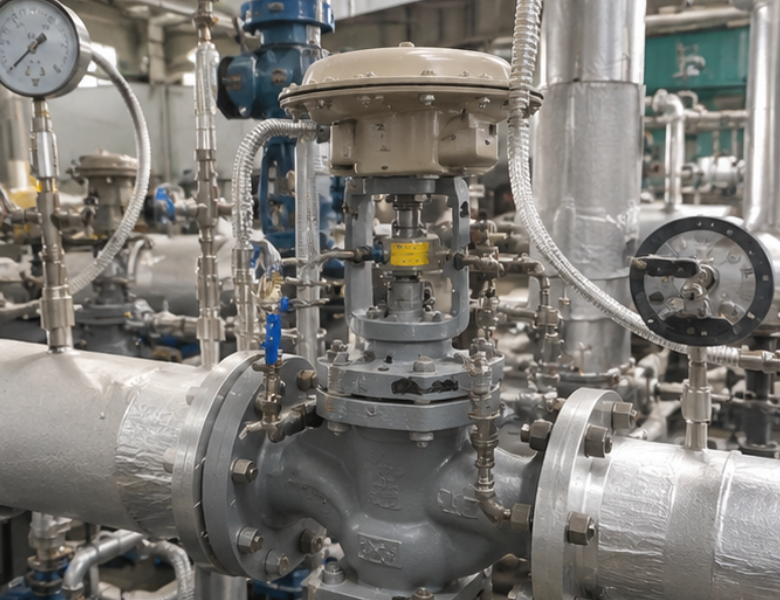

The pressure reducing control valve reduces high-pressure steam to the required downstream pressure. The desuperheater injects spray water into the steam flow. The temperature sensor provides feedback to the control system, which adjusts the spray water control valve to maintain outlet steam temperature.
| Component | Function |
|---|---|
| Pressure Reducing Control Valve | Reduces high-pressure steam to the required outlet pressure. |
| Desuperheater | Injects spray water into superheated steam to reduce temperature. |
| Spray Water Control Valve | Controls spray water flow according to outlet temperature feedback. |
| Safety Valve | Protects downstream steam lines and equipment from overpressure. |
| Temperature Sensor | Provides outlet steam temperature feedback for automatic control. |
| Control Cabinet | Supports pressure and temperature control, alarms, and plant system integration. |
4. Spray Water, Atomization, And Temperature Control
Spray water condition is one of the most important factors in desuperheating performance. If spray water pressure is too low, atomization may be poor and water droplets may not evaporate fully. If spray water quality is poor, the nozzle may become blocked or scaled. If spray water control is unstable, outlet steam temperature may fluctuate.
The downstream straight pipe length and temperature sensor location must also be reviewed carefully. After spray water is injected, enough distance is needed for water evaporation and steam mixing. If the temperature sensor is installed too close to the desuperheater, the feedback signal may be unstable and the control system may respond incorrectly.
Practical Tip
For power plant projects, buyers should not evaluate a desuperheating system only by nozzle size. Spray water pressure, water quality, atomization, control valve response, straight pipe length, and sensor position all affect final performance.
Spray Water And Control Checklist
Confirm spray water pressure and available flow.
Provide spray water temperature and water quality.
Review spray water control valve sizing and response speed.
Check desuperheater nozzle type and atomization performance.
Confirm downstream straight pipe length.
Confirm temperature sensor installation location.
Check drainage design to reduce water hammer risk.
Review control signal, alarm logic, and plant DCS / PLC interface.
5. Factory Testing, Documentation, And Project Delivery

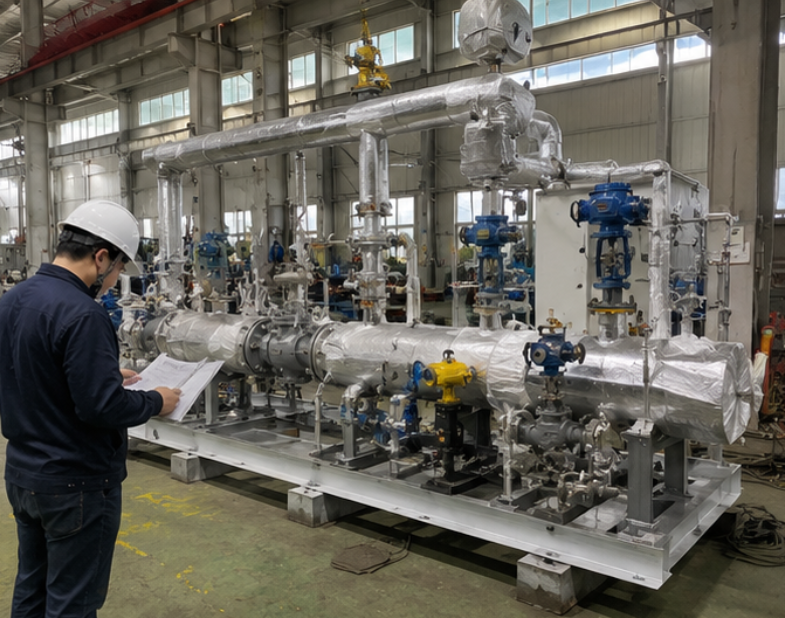

For power plant projects, factory testing and documentation are essential. A qualified supplier should provide assembly inspection, pressure test, leak test, instrument check, control cabinet inspection, functional inspection, FAT report when required, and final inspection photos before shipment.
Buyers should request P&ID, general arrangement drawing, component list, valve data sheets, instrument data sheets, control logic description when applicable, operation manual, maintenance instructions, test reports, packing list, and final as-built documents.
Final Buyer Checklist
Provide inlet pressure, inlet temperature, outlet pressure, and outlet temperature.
Provide minimum, normal, and maximum steam flow.
Confirm spray water pressure, temperature, quality, and available flow.
Review pressure reducing valve, desuperheater, and spray water control valve selection.
Check safety valve, drain valves, instruments, and control cabinet scope.
Confirm downstream straight pipe length and temperature sensor location.
Request P&ID, GA drawing, component list, data sheets, test reports, and manuals.
Confirm FAT, packing method, lifting points, delivery schedule, and after-sales support.
Conclusion
A steam pressure reducing and desuperheating system for power plants should be designed according to real steam pressure, temperature, flow range, outlet requirements, spray water conditions, safety protection, control accuracy, piping layout, testing standards, and documentation needs.
For power plant buyers, choosing a qualified PRDS system supplier can help improve steam pressure stability, control outlet temperature, protect downstream equipment, reduce site installation risk, and support reliable long-term operation.
FAQ
What is a steam pressure reducing and desuperheating system?
It is a system used to reduce high-pressure steam and control superheated steam temperature before steam enters downstream power plant equipment or utility users.
What information is needed before quotation?
Buyers should provide inlet steam pressure, inlet temperature, outlet pressure, outlet temperature, steam flow range, spray water conditions, downstream application, and control requirements.
Why is spray water condition important?
Spray water pressure, temperature, quality, and flow capacity affect atomization, evaporation, outlet temperature stability, and desuperheater reliability.
Can the system be supplied as a skid-mounted package?
Yes. A skid-mounted package can include pressure reducing valve, desuperheater, spray water control valve, instruments, safety valve, control cabinet, piping, testing, and documentation.
