In many boiler rooms, steam is generated at a higher pressure than the downstream process actually needs. Before steam enters heating lines, heat exchangers, production equipment, or utility users, both pressure and temperature may need to be controlled. If pressure is unstable or temperature is too high, downstream equipment may face safety risk, poor process stability, thermal stress, or energy waste.
A Steam PRDS system reduces steam pressure through a pressure reducing control valve and lowers steam temperature through a desuperheating section. By combining both functions, the system helps deliver stable steam conditions to downstream equipment.
For boiler room projects in power plants, chemical plants, food factories, textile plants, paper mills, hospitals, industrial parks, and manufacturing facilities, a skid-mounted PRDS system can improve installation efficiency, factory quality control, and long-term operation reliability.
Typical Boiler Room Applications
Steam pressure and temperature control after boiler outlet
Utility steam supply for production process lines
Steam conditioning before heat exchangers and heating systems
Steam supply for sterilization, drying, and process heating equipment
Boiler room steam distribution for industrial plants
Pressure reducing and desuperheating for downstream equipment protection
2. Key Data Required Before PRDS System Design
A Steam PRDS system cannot be selected correctly by pipe size alone. Buyers should provide complete steam and spray water data before quotation. The most important information includes inlet steam pressure, inlet steam temperature, required outlet pressure, required outlet temperature, maximum flow, normal flow, minimum flow, steam type, spray water pressure, spray water temperature, water quality, and downstream application.
Boiler room steam demand may change during startup, standby, normal production, peak load, and shutdown. If the PRDS system is selected only according to one design flow value, the pressure reducing valve or spray water control valve may not perform well across the full operating range.
Complete working condition data helps the manufacturer select the correct control valve, desuperheater nozzle, spray water control valve, safety valve, instruments, control logic, and skid layout.
Boiler Room PRDS System Data Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure And Temperature | Determines valve rating, pressure drop, material, and desuperheating demand. |
| Outlet Pressure And Temperature | Defines the target steam condition required by downstream equipment. |
| Steam Flow Range | Ensures stable pressure and temperature control at low, normal, and peak load. |
| Spray Water Conditions | Affects atomization quality, evaporation, temperature stability, and nozzle selection. |
| Downstream Application | Affects control accuracy, response speed, safety design, and piping layout. |
3. Main Components Of A Boiler Room Steam PRDS System

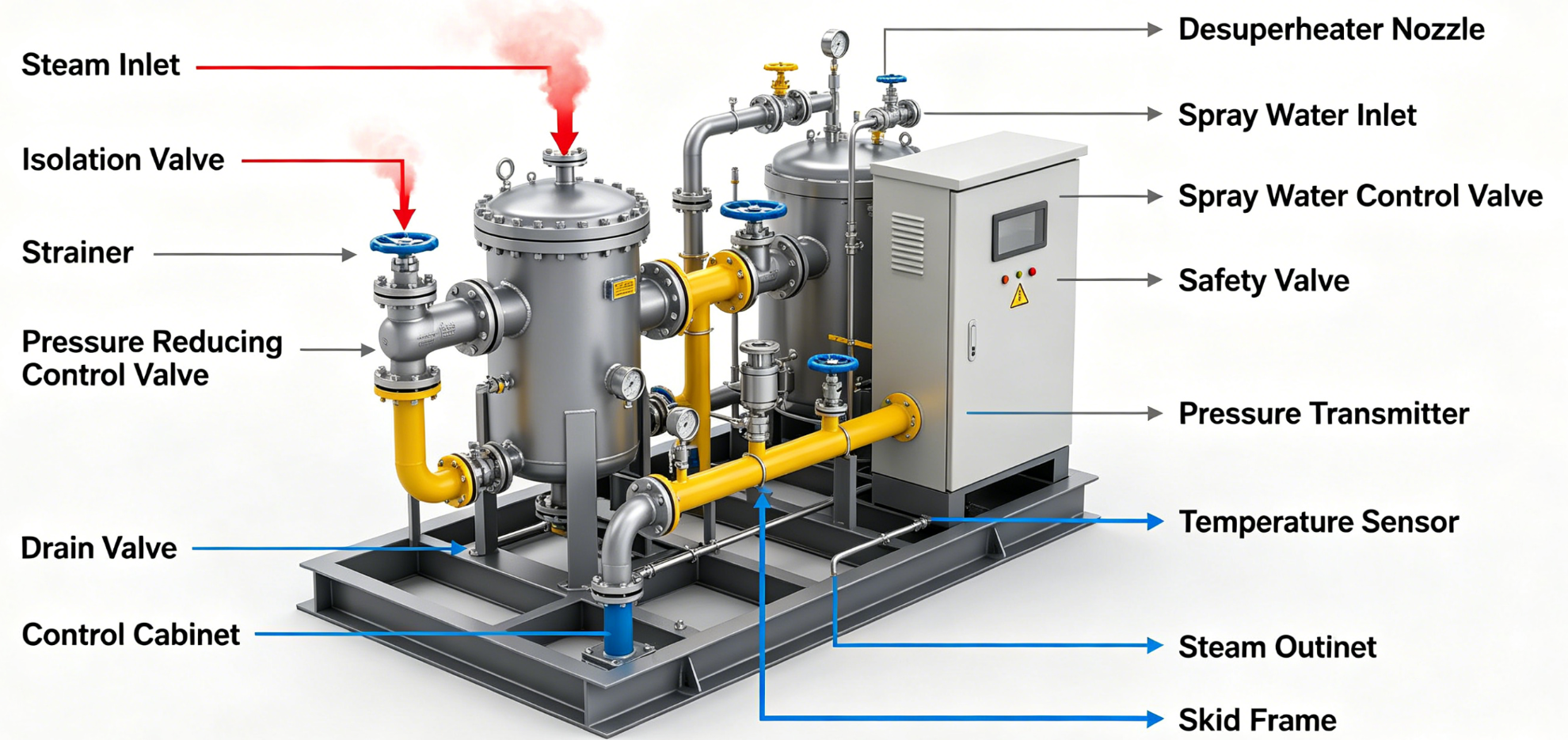

A Steam PRDS system for boiler room pressure and temperature control is usually supplied as an integrated package. It may include inlet isolation valve, strainer, pressure reducing control valve, actuator, positioner, desuperheater, spray water control valve, safety valve, pressure gauges, pressure transmitters, temperature sensors, drain valves, vent valves, control cabinet, piping, supports, and skid-mounted frame.

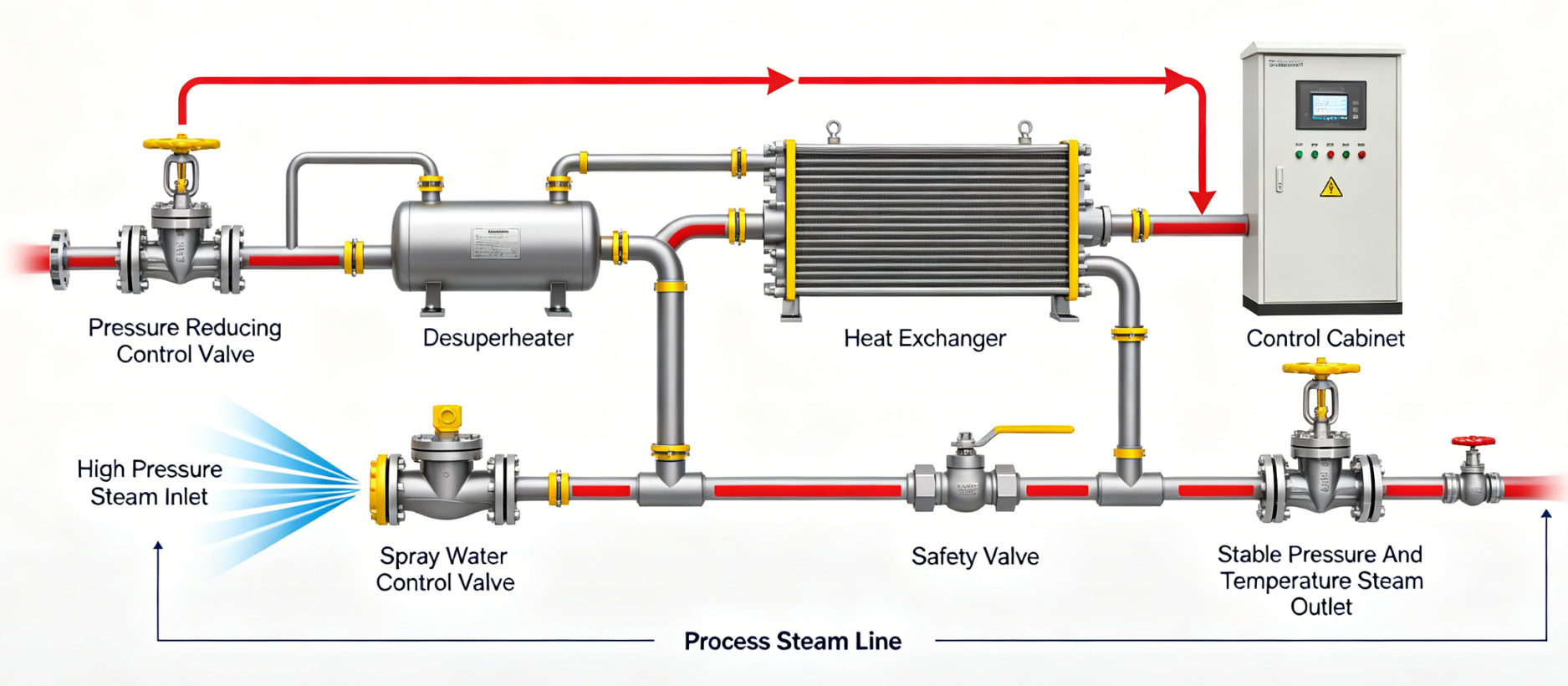

The pressure reducing control valve reduces high-pressure steam to the required outlet pressure. The desuperheater injects spray water into the steam flow to reduce temperature. The temperature sensor and control system adjust the spray water control valve to maintain stable outlet steam temperature.
Buyers should compare the complete scope of supply, not only the pressure reducing valve or desuperheater. Instruments, safety devices, control cabinet, drainage, testing, and documents are important parts of a reliable PRDS package.
| Component | Function |
|---|---|
| Pressure Reducing Control Valve | Reduces boiler steam pressure to the required outlet pressure. |
| Desuperheater | Injects spray water into superheated steam to reduce temperature. |
| Spray Water Control Valve | Controls spray water flow according to outlet temperature feedback. |
| Safety Valve | Protects downstream equipment from overpressure. |
| Control Cabinet | Supports pressure and temperature control, alarms, and plant system integration. |
4. Pressure Control, Temperature Control, And Safety Considerations
Pressure control depends heavily on correct control valve sizing, pressure drop calculation, valve trim design, actuator selection, and positioner performance. If the valve is oversized, it may cause pressure hunting at low flow. If the valve is undersized, downstream equipment may not receive enough steam during peak load.
Temperature control depends on spray water pressure, spray water flow, nozzle atomization, temperature sensor location, and downstream straight pipe length. Poor atomization may cause wet steam, water carryover, pipe erosion, unstable temperature feedback, or water hammer.
Safety design should include overpressure protection, pressure and temperature monitoring, proper drainage, vent arrangement, alarm output, and emergency control logic when required. For automated boiler rooms, signal output may need to connect with PLC, DCS, SCADA, or local control systems.
Control And Safety Checklist
Confirm pressure reducing valve sizing and calculated flow capacity.
Review valve trim, actuator, positioner, and control signal compatibility.
Confirm spray water pressure, temperature, quality, and available flow.
Check desuperheater nozzle type and atomization performance.
Confirm temperature sensor location and downstream straight pipe length.
Review safety valve sizing, set pressure, and discharge arrangement.
Check drainage, venting, pipe support, and maintenance access.
Define FAT, pressure test, leak test, functional test, and final documentation scope.
5. Why Skid-Mounted PRDS Design Helps Boiler Room Projects

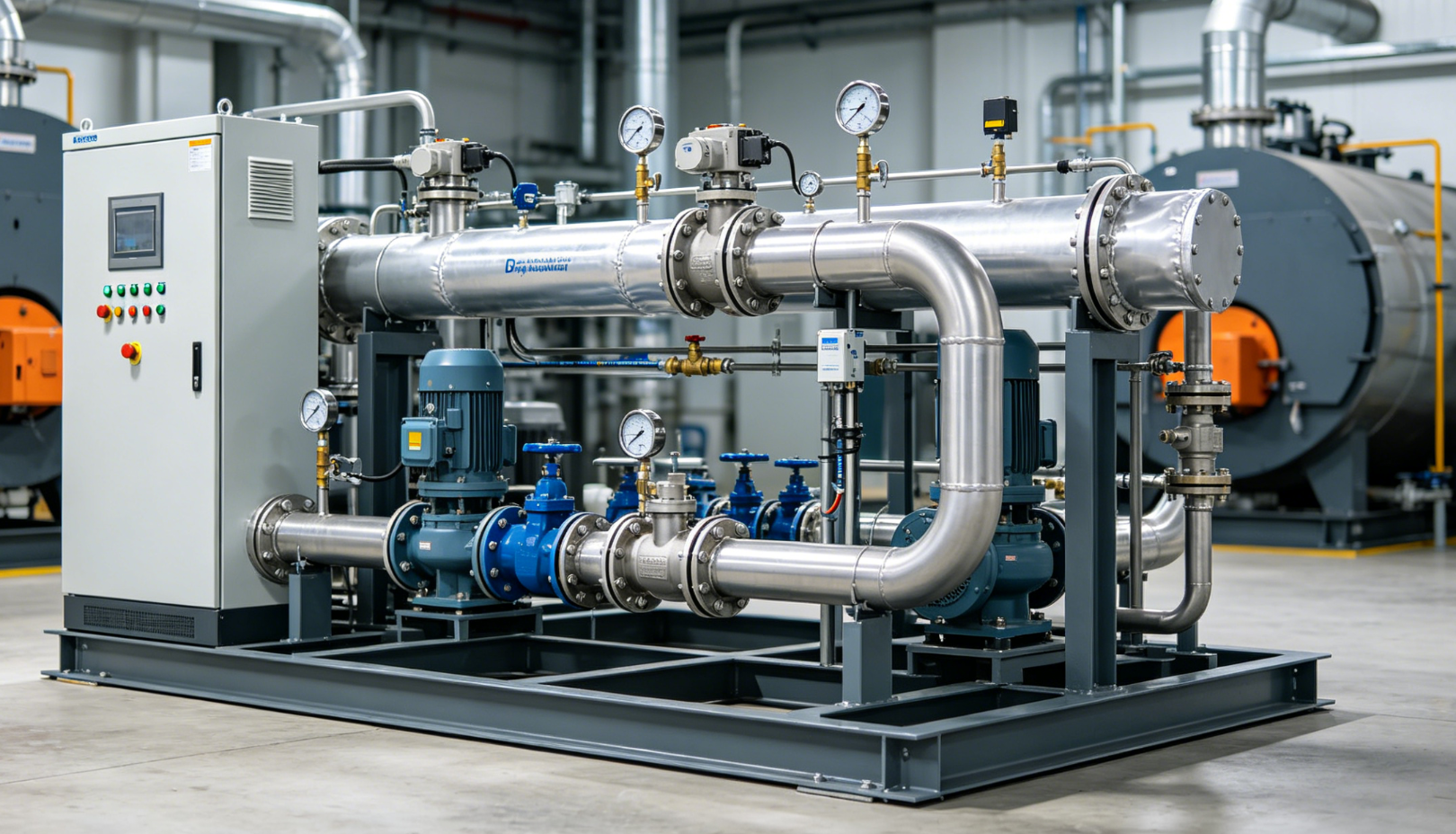

Boiler room projects often require compact layout, fast installation, stable operation, and clear documentation. A skid-mounted Steam PRDS system can be engineered, assembled, inspected, and tested in the factory before delivery. This helps reduce site welding, missing parts, layout errors, and commissioning uncertainty.
Before shipment, the supplier can provide assembly inspection, pressure test, leak test, functional inspection, instrument check, control cabinet inspection, FAT report, final photos, drawings, manuals, and packing information.
For overseas projects, factory-assembled PRDS skids can make communication easier between the buyer, contractor, installer, and end user while reducing site installation risk.
Practical Tip
For boiler room pressure and temperature control, buyers should not evaluate a PRDS system only by valve size. The correct solution should include pressure reduction, desuperheating, spray water control, safety protection, drainage, instruments, testing, and documentation.
Final Buyer Checklist
Provide inlet pressure, inlet temperature, outlet pressure, and outlet temperature.
Provide minimum, normal, and maximum steam flow.
Confirm spray water pressure, temperature, water quality, and available flow.
Review pressure reducing valve and spray water control valve selection.
Check safety valve, instruments, drainage, and control cabinet scope.
Confirm skid footprint, inlet/outlet direction, and maintenance access.
Request P&ID, GA drawing, data sheets, test reports, and operation manual.
Confirm pressure test, leak test, FAT, packing, and delivery details.
Conclusion
A Steam PRDS system for boiler room pressure and temperature control should be designed according to real steam pressure, temperature, flow range, outlet requirements, spray water conditions, safety protection, control accuracy, piping layout, testing, and documentation standards.
For industrial buyers, a well-engineered PRDS skid can improve steam pressure stability, control outlet temperature, protect downstream equipment, reduce site installation risk, and support safe long-term boiler room operation.
FAQ
What is a Steam PRDS system?
A Steam PRDS system is a pressure reducing and desuperheating system used to reduce steam pressure and control steam temperature before steam enters downstream equipment.
What information is needed before quotation?
Buyers should provide inlet steam pressure, inlet temperature, outlet pressure, outlet temperature, steam flow range, spray water conditions, pipe size, control requirements, and site layout.
Why is spray water condition important?
Spray water pressure, flow, temperature, and quality affect atomization, evaporation, outlet temperature stability, and long-term nozzle reliability.
Can the PRDS system be supplied as a skid-mounted package?
Yes. A skid-mounted PRDS package can include valves, desuperheater, spray water control, instruments, control cabinet, piping, safety devices, testing, and documentation.
