How To Reduce Leakage Risk In Gas Pressure Regulator Systems

Reducing leakage risk in gas pressure regulator systems starts with understanding where leakage usually comes from. Official regulator troubleshooting guidance from Emerson links leakage-related problems to damaged valve plugs or orifices, improper sealing between the orifice and body, damaged metal parts, and elastomeric parts that have cuts, cracks, tears, or chemical attack. The same guidance also recommends preventive maintenance and filtration, which shows that leakage risk is not only a sealing issue but also a contamination and upkeep issue.

Start With The Right Materials, Seal Design, And Venting Strategy

One of the most important ways to reduce leakage risk is to make sure the regulator’s materials and sealing arrangement match the actual gas and operating conditions. Swagelok states that safe product selection depends on total system design, including function, material compatibility, adequate ratings, proper installation, operation, and maintenance. Emerson’s compatibility reference likewise explains that elastomers and metals used in regulators should be checked against the service chemicals or compounds. In practice, this means seat materials, diaphragms, O-rings, trim, and body materials should be chosen for the real gas composition, pressure, and temperature range rather than by habit alone.

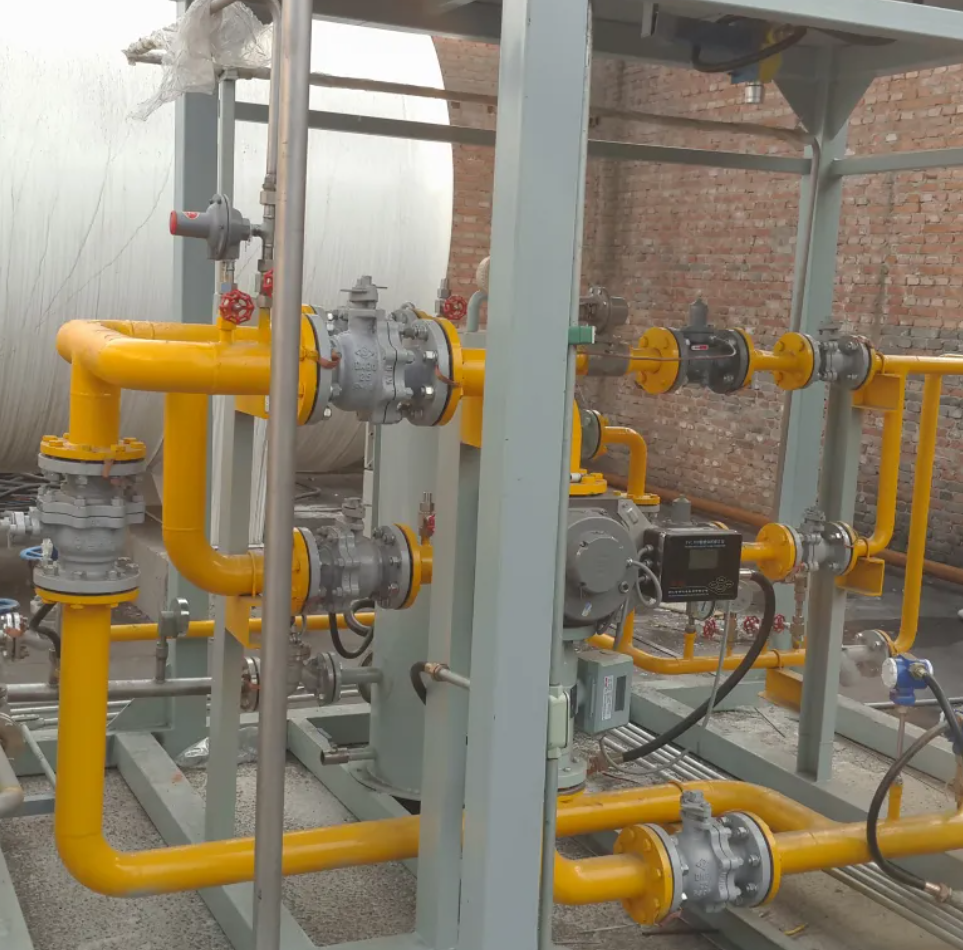

Venting strategy also matters because not every regulator handles seal failure the same way. Swagelok’s regulator catalog explains that self-venting regulators allow media to be vented when set pressure is reduced, while captured-vent regulators route media through a dedicated auxiliary vent port if a sensor seal fails. For gas systems where vented gas creates safety, environmental, or product-loss concerns, choosing a captured-vent design or routing the vent to a safe location can reduce leakage exposure compared with simply allowing gas to discharge locally.

Control Contamination, Piping Stress, And Overpressure Before They Damage The Regulator

Contamination is a major leakage trigger. Emerson’s regulator best-practices guide recommends keeping process fluid free of pipeline debris and contaminants by using appropriate filters, separators, strainers, or similar equipment. Emerson’s troubleshooting guide adds that damaged plugs, orifices, and other moving parts can prevent proper sealing, and specifically suggests filtration in the process line. Emerson’s CS800 documentation further warns that secondary seat protection is only a backup for lockup and does not provide extra overpressure protection if the seat or disk is damaged by debris or contamination. Together, these sources show that dirt control is not optional if long-term leak prevention matters.

Mechanical installation also affects leakage risk. Emerson’s best-practices guidance says piping supports help prevent strain on equipment and recommends enough pressure taps for regulators, control lines, and gauges. Separate installation manuals for commercial and industrial regulators add that if escaping gas must be vented away, remote vent piping should be short, direct, have as few bends as possible, and be large enough to avoid excessive backpressure. In real systems, external leakage risk rises when regulators are stressed by pipe loads, poorly supported lines, or badly designed vent piping that interferes with proper discharge.

Overpressure protection is another key layer. Emerson’s best-practices guide says adequate overpressure protection should be installed to protect regulators, piping, downstream equipment, employees, and the public. Emerson also describes slam-shut valves as safety devices that rapidly and totally shut off gas flow in case of failure and notes that one advantage is reducing gas emissions by containment. That means leakage-risk control should not stop at the regulator body itself; it should also include relief, shutoff, or other overpressure measures that limit the consequences of internal failure.

Treat Inspection, Cleaning, And Maintenance As Part Of Leak Prevention

Leak prevention depends on maintenance discipline as much as design. Emerson’s troubleshooting guide says preventive maintenance can identify worn or damaged parts before sealing performance is lost. It also points to cuts, cracks, tears, and chemical attack on elastomeric parts as reasons regulators stop functioning properly. This means diaphragms, seats, O-rings, and other soft parts should be treated as condition-sensitive components, especially in gas systems with cycling, contamination, or aggressive media.

Cleaning practices are also important before startup and after upset conditions. Emerson’s bulletin on flood-damaged regulators says gas lines should be thoroughly cleaned and blown out when regulators are replaced so water and contaminants do not enter the regulator, and it notes that dirt and sediment can settle into working parts, relief valves, pilots, and caps. Even outside flood service, the lesson is clear: regulators that are installed into dirty lines or returned to service after contamination events face a much higher leakage risk because debris can damage or block sealing surfaces and moving parts.

A practical leakage-risk strategy therefore combines inspection, cleanliness, and documented testing. If the system uses hazardous gas, that strategy may also include captured-vent designs, remote venting, and overpressure shutoff devices. When those measures are combined with proper material selection, filtration, and good piping support, the regulator system has a much better chance of holding tight shutoff and avoiding unintended gas release over the long term.

To reduce leakage risk in gas pressure regulator systems, the most effective approach is to work in layers: choose materials and venting arrangements that fit the gas, prevent contamination and pipe stress from damaging the regulator, add proper overpressure protection, and maintain the system before small seal problems become large release events. Leakage risk usually falls when the regulator is treated as part of a complete pressure-control system rather than as a single standalone component.
