Temperature and Pressure Reducing Device (TPRD): Principle and Function

Temperature and Pressure Reducing Device (TPRD): Principle and Function

The Core Dual-Function Principle: Precision Control for Steam and Thermal Fluids

A Temperature and Pressure Reducing Device (TPRD) is a sophisticated, integrated system designed to simultaneously and precisely control two critical parameters of a thermal fluid—most commonly steam—within industrial processes. Its core function is to reduce a high-pressure, high-temperature (or superheated) inlet fluid to a precisely defined, lower pressure and temperature at the outlet. The system operates on a fundamental engineering principle: the independent yet coordinated control of pressure and temperature. The Pressure Reducing Valve (PRV) is responsible for lowering the fluid pressure to a desired setpoint. This pressure reduction, however, can lead to a phenomenon where the fluid remains at a higher-than-desired temperature (superheat) for the new, lower pressure, which can be inefficient or even damaging for downstream equipment. This is where the second critical component, the Desuperheater, comes into play. The TPRD integrates these two functions, ensuring that the pressure let-down process is immediately followed by precise temperature conditioning. This is achieved by injecting a finely atomized spray of cooling water (typically condensate) directly into the steam flow downstream of the PRV. The water evaporates instantly, absorbing latent heat and precisely lowering the steam temperature to the required saturation point or a specified degree of superheat. For a manufacturer like Shanghai Shenqi Machinery, a TPRD represents a prime example of a pre-engineered, skid-mounted solution that encapsulates complex thermodynamic control into a reliable, ready-to-install package. The principle ensures that process equipment receives steam with consistent, optimal pressure and temperature, which is vital for heat transfer efficiency, product quality, and equipment safety.

Key Components and Their Synergistic Function

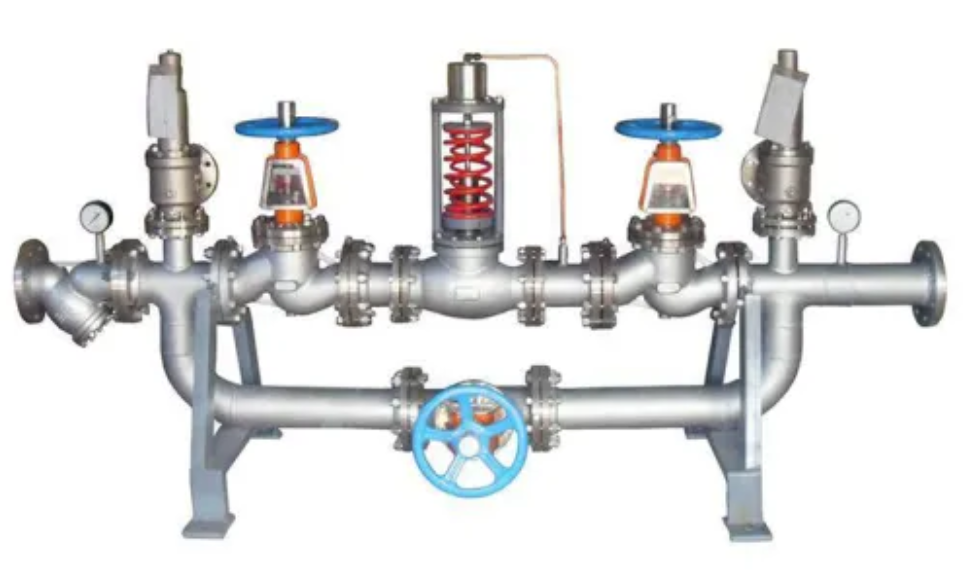

The efficacy of a TPRD stems from the seamless interaction of its key components, each performing a specialized role within a controlled sequence. The system typically begins with a Primary Pressure Reducing Valve (PRV) that executes the main pressure drop. For critical applications demanding failsafe operation, this is often configured in an Active-Monitor arrangement, where a second "monitor" PRV stands ready to take over if the primary valve fails. Immediately downstream, the Desuperheater Assembly performs the temperature control. This assembly consists of a Water Injection Valve that modulates the flow of cooling water, a Atomizing Nozzle that creates a fine mist for rapid evaporation, and a Thermal Sleeve or Lanced Injection Tube that ensures proper penetration and mixing within the steam flow. Accurate control is governed by a suite of Instrumentation: Temperature and Pressure Transmitters continuously measure process conditions before and after the desuperheater. This data is fed to a Programmable Logic Controller (PLC) which dynamically calculates the required cooling water injection rate and adjusts the water valve accordingly. Additional components like Water Control Valves, Strainers to protect the nozzle, and a Thermowell for temperature sensor placement are integral to reliable operation. In Shenqi's skid-mounted TPRD packages, all these components—piping, valves, instruments, and the structural frame—are pre-assembled, pre-wired, and pre-tested. The synergy lies in the system's ability to respond to load changes: if downstream steam demand increases, the PRV opens to maintain pressure, and the PLC instantly commands a proportional increase in cooling water to maintain the set temperature, ensuring a stable supply of conditioned steam.

Critical Applications and the Advantages of a Packaged Skid

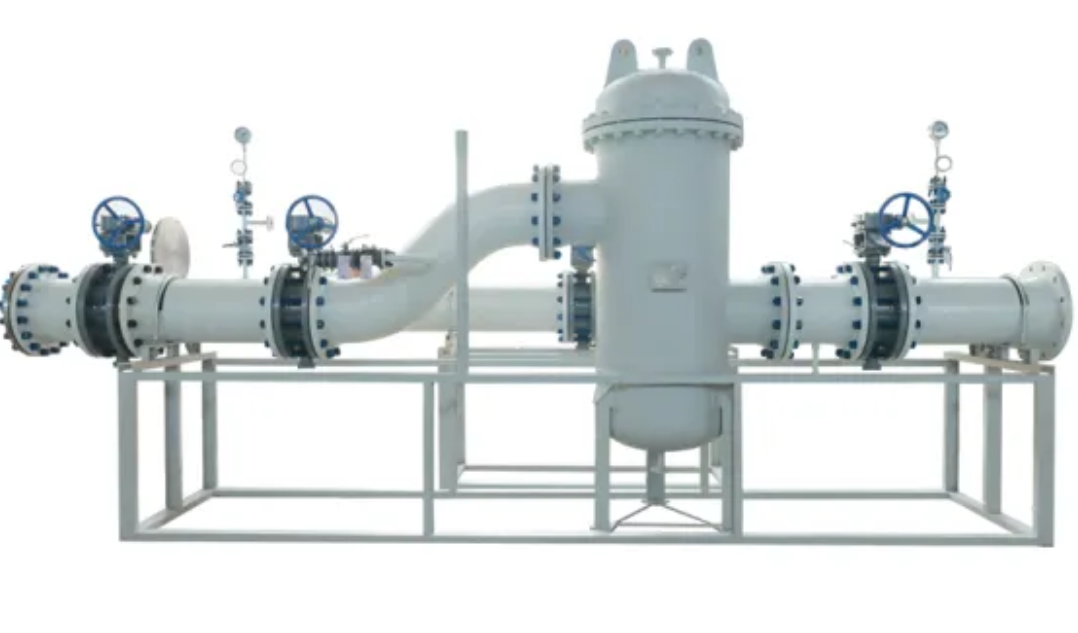

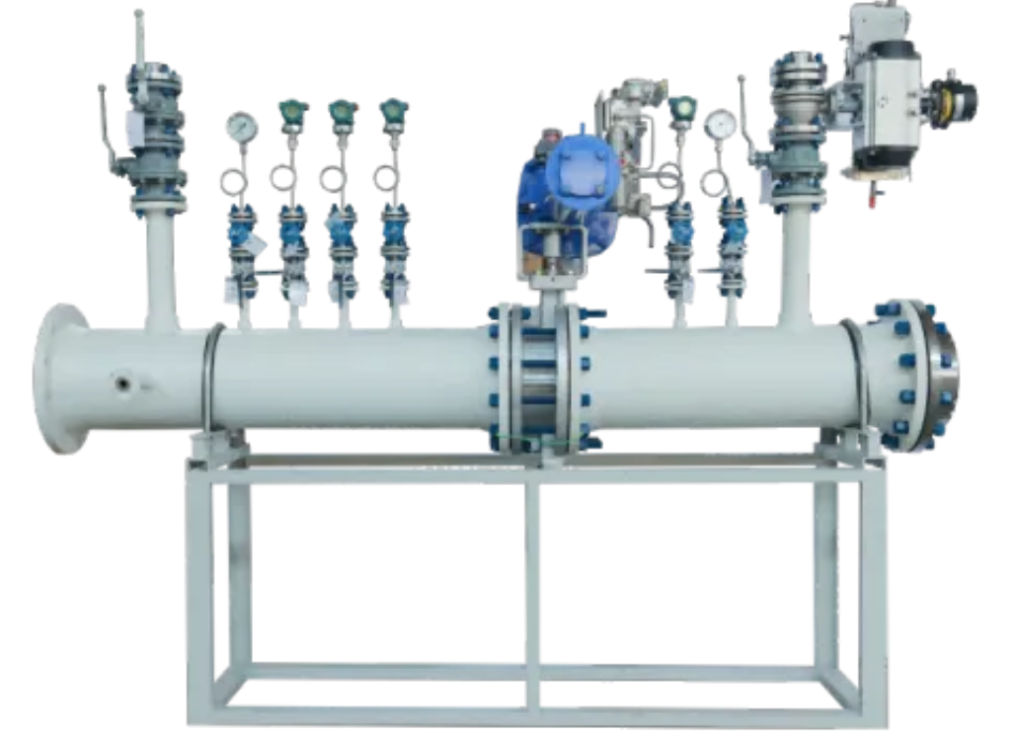

The TPRD is indispensable in a wide range of industrial applications where both pressure and temperature of steam or other thermal fluids must be precisely controlled. Key applications include: supplying Process Heating Steam to reactors, heat exchangers, and drying cylinders in chemical, textile, and food processing plants; providing Turbine Bypass Steam in power generation; conditioning steam for Sterilization and Cleaning-in-Place (CIP) systems in pharmaceutical and biotechnology facilities; and managing Heat Recovery Steam Generator (HRSG) outputs. Opting for a pre-fabricated TPRD skid from a specialist like Shenqi offers significant advantages over field-assembled components. It guarantees System Integration and Performance Assurance, as the entire control loop is factory-tested under simulated conditions, ensuring all components work harmoniously. It provides Superior Temperature Control Accuracy and Speed of Response due to optimized nozzle design and tuned control algorithms. It offers Significant Savings in Engineering, Installation, and Commissioning Time and Cost through its "plug-and-play" design. Furthermore, it ensures Enhanced Safety with integrated safety interlocks and relief valves, and provides a Compact Footprint that saves valuable plant space. The skid-mounted approach transforms a complex control challenge into a reliable, off-the-shelf utility, de-risking project execution and ensuring optimal process performance from day one.

In summary, a Temperature and Pressure Reducing Device (TPRD) is far more than a simple valve; it is an intelligent, self-regulating thermal conditioning station. By mastering the interdependent control of pressure and temperature through the precise integration of pressure reduction and desuperheating technologies, it delivers a stable supply of process-ready steam. This stability is foundational for energy efficiency, product consistency, and operational safety. For industries reliant on precise thermal energy, investing in a custom-engineered, skid-mounted TPRD from an experienced provider like Shanghai Shenqi Machinery is a strategic decision that ensures process reliability, reduces lifecycle costs, and delivers a guaranteed performance from a single, accountable source.
