What Documents Are Needed For Steam Pressure Reducing Skid Procurement
2026-05-16 22:261. Documents Buyers Should Provide Before Quotation
Before a supplier can quote a steam pressure reducing skid accurately, the buyer should provide enough technical information to define the working conditions and project scope. If the inquiry only includes a general product name, the supplier may have to make assumptions, which can result in wrong valve sizing, missing instruments, unsuitable layout, or incomplete pricing.

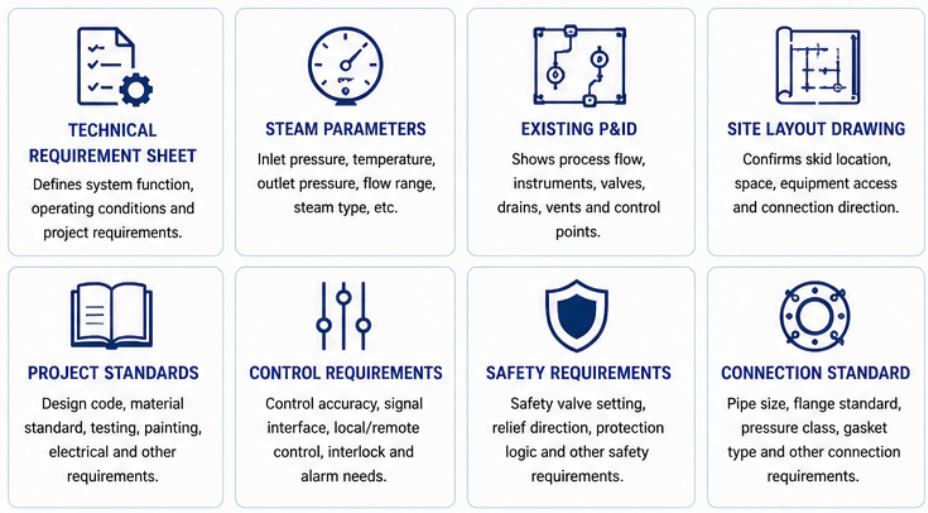

The most important buyer-side document is a technical requirement sheet. It should include inlet steam pressure, inlet steam temperature, outlet pressure, outlet temperature if desuperheating is needed, maximum flow, normal flow, minimum flow, steam type, pipe size, flange standard, site layout, control requirement, and safety requirement.
If available, buyers should also provide existing P&ID, site layout drawing, boiler room plan, process description, and local project standards. These documents help the manufacturer understand not only the equipment itself, but also how the skid will connect to the complete steam system.
Buyer-Side Documents For Quotation
| Document | Purpose |
|---|---|
| Technical Requirement Sheet | Defines steam pressure, temperature, flow, control accuracy, and operating conditions. |
| Existing P&ID | Shows process flow, instruments, valves, and system connection requirements. |
| Site Layout Drawing | Helps confirm skid size, inlet and outlet direction, and installation space. |
| Project Standards | Defines design, material, testing, painting, electrical, or documentation requirements. |
2. Proposal Documents Suppliers Should Provide
After receiving the inquiry data, the supplier should provide proposal documents that clearly explain what is included in the steam pressure reducing skid. Buyers should not rely only on a one-line price quotation. A professional proposal should show technical scope, main component configuration, system design basis, and commercial delivery scope.

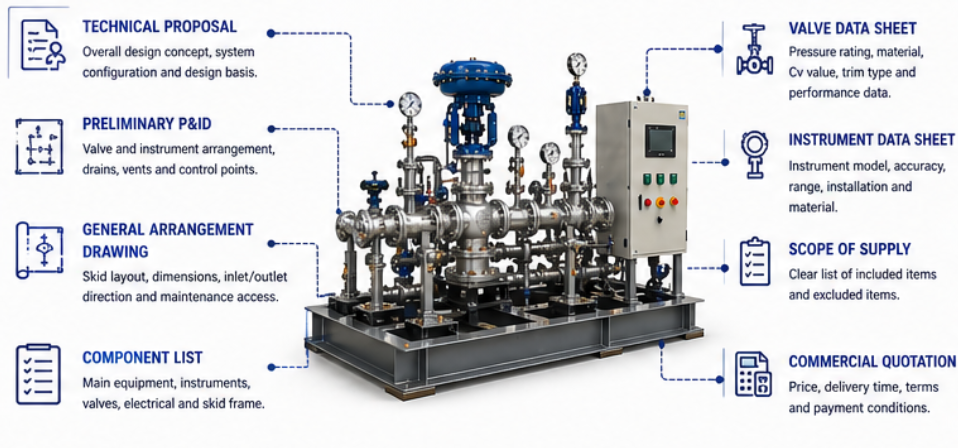

Important proposal documents include a technical proposal, preliminary P&ID, general arrangement drawing, main component list, valve and instrument data sheets, scope of supply, exclusion list, delivery schedule, and commercial quotation. These documents help buyers compare different suppliers on the same technical basis.
When two quotations have a large price difference, document comparison often reveals the real reason. One supplier may include safety valve, pressure transmitter, control cabinet, testing, and documents, while another may only quote a simplified mechanical assembly.
Supplier Proposal Document Checklist
| Document | What Buyers Should Check |
|---|---|
| Technical Proposal | Design concept, system function, configuration, and operating logic. |
| Preliminary P&ID | Valve arrangement, instruments, drains, vents, safety devices, and control points. |
| General Arrangement Drawing | Skid footprint, maintenance access, lifting points, and inlet/outlet direction. |
| Component List | Main valves, instruments, control cabinet, piping, and skid frame included in the scope. |
| Scope Of Supply | Clear included and excluded items to prevent later disputes. |
3. Engineering Documents Before Fabrication
Before fabrication begins, the buyer and supplier should confirm the final engineering documents. This step is critical because it prevents design mistakes from entering production. Once the skid is fabricated, changing nozzle direction, valve position, pipe layout, or control cabinet location can be expensive and time-consuming.
Engineering documents may include final P&ID, approved general arrangement drawing, detailed piping layout, valve data sheets, instrument list, electrical wiring diagram, control logic description, material list, painting specification, welding requirements, and inspection plan.
Buyers should review whether the skid layout matches the site conditions, whether the maintenance space is sufficient, whether the instrument positions are logical, and whether the control and safety functions meet the project requirements.
Engineering Documents To Approve
Final piping and instrumentation diagram
Approved general arrangement drawing
Valve data sheets and instrument data sheets
Control cabinet and wiring diagram when applicable
Control logic or signal interface description
Material list and main component list
Welding, painting, and surface treatment requirements
Inspection and test plan
Practical Tip
Never approve fabrication based only on a commercial quotation. For a steam pressure reducing skid, final P&ID and layout drawing should be reviewed and confirmed before production starts.
4. Inspection And Test Documents Before Shipment

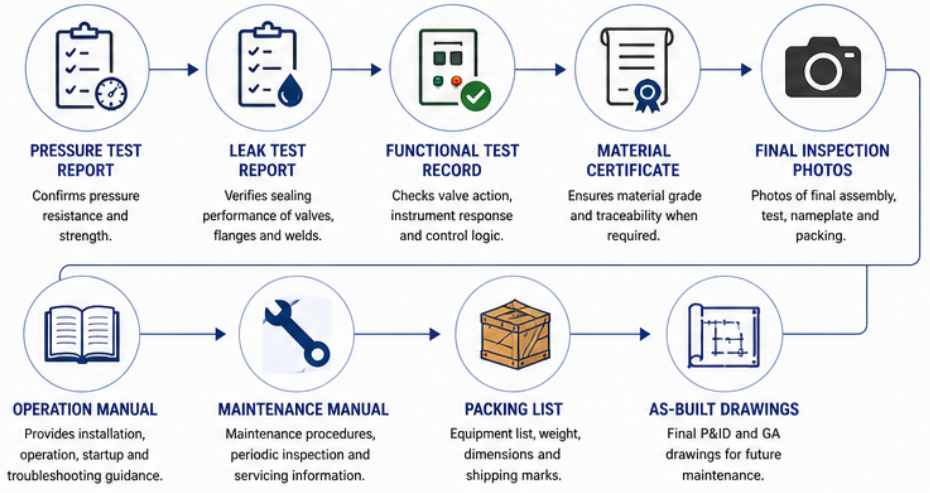

Inspection and test documents prove that the skid has been manufactured and checked according to the agreed requirements. For steam pressure reducing skids, common inspection documents include pressure test report, leak test report, visual inspection record, dimensional inspection record, instrument check record, control cabinet inspection record, and factory acceptance test record when required.
Buyers should define these documents before ordering, not after delivery. If the project requires specific inspection format, third-party inspection, material certificates, or photo records, these requirements should be written into the purchase agreement or technical appendix.
For overseas projects, pre-shipment documents are especially important. They help buyers confirm quality before shipment and reduce uncertainty during installation and commissioning.
| Inspection Document | Purpose |
|---|---|
| Pressure Test Report | Confirms pressure resistance of piping and pressure-bearing parts. |
| Leak Test Report | Verifies sealing performance of valves, flanges, welds, and connections. |
| Functional Test Record | Checks valve action, instrument response, and control system operation. |
| Material Certificate | Confirms material grade and traceability when required by the project. |
| Final Inspection Photos | Helps buyers confirm assembly quality, layout, labels, and packing before shipment. |
5. Delivery, Installation, And Operation Documents
After the skid is completed, the supplier should provide delivery and operation documents to support installation, commissioning, and long-term maintenance. These may include packing list, shipping marks, lifting instructions, installation notes, operation manual, maintenance manual, recommended spare parts list, and final as-built drawings.
For skid-mounted systems, lifting and packing documents are important because the equipment may include heavy valves, instruments, control cabinet, and connected piping. Improper lifting or transportation can damage instruments or cause alignment problems before installation.
As-built documents should match the final delivered equipment. This is important for future maintenance, spare parts ordering, troubleshooting, and plant documentation management.
Final Document Package Checklist
Final as-built P&ID
Final general arrangement drawing
Valve and instrument data sheets
Pressure test and leak test reports
Material certificates when required
Operation and maintenance manual
Control cabinet wiring diagram when applicable
Packing list and shipping marks
Lifting and installation instructions
Recommended spare parts list
Conclusion
Documents are a key part of steam pressure reducing skid procurement. Buyers should provide complete technical data before quotation and request clear proposal documents, approved engineering drawings, inspection records, test reports, delivery documents, and operation manuals from the supplier.
A complete document package reduces procurement risk, improves technical communication, supports factory inspection, simplifies site installation, and helps future maintenance. For customized steam pressure reducing skids, good documentation is just as important as good equipment.
FAQ
What documents should buyers provide before quotation?
Buyers should provide steam pressure, temperature, flow range, site layout, control requirements, project standards, and existing P&ID if available.
Why is P&ID important for steam pressure reducing skid procurement?
P&ID shows process flow, valves, instruments, safety devices, drains, vents, and control points, helping both buyer and supplier confirm the complete system scope.
What test reports should be requested before shipment?
Common reports include pressure test report, leak test report, functional test record, visual inspection record, instrument check record, and final inspection photos.
Are final as-built drawings necessary?
Yes. As-built drawings help installation, maintenance, troubleshooting, spare parts ordering, and future plant documentation management.
