Gas Regulating Skid For LNG Satellite Stations
2026-05-26 14:031. Why LNG Satellite Stations Need Gas Regulating Skids

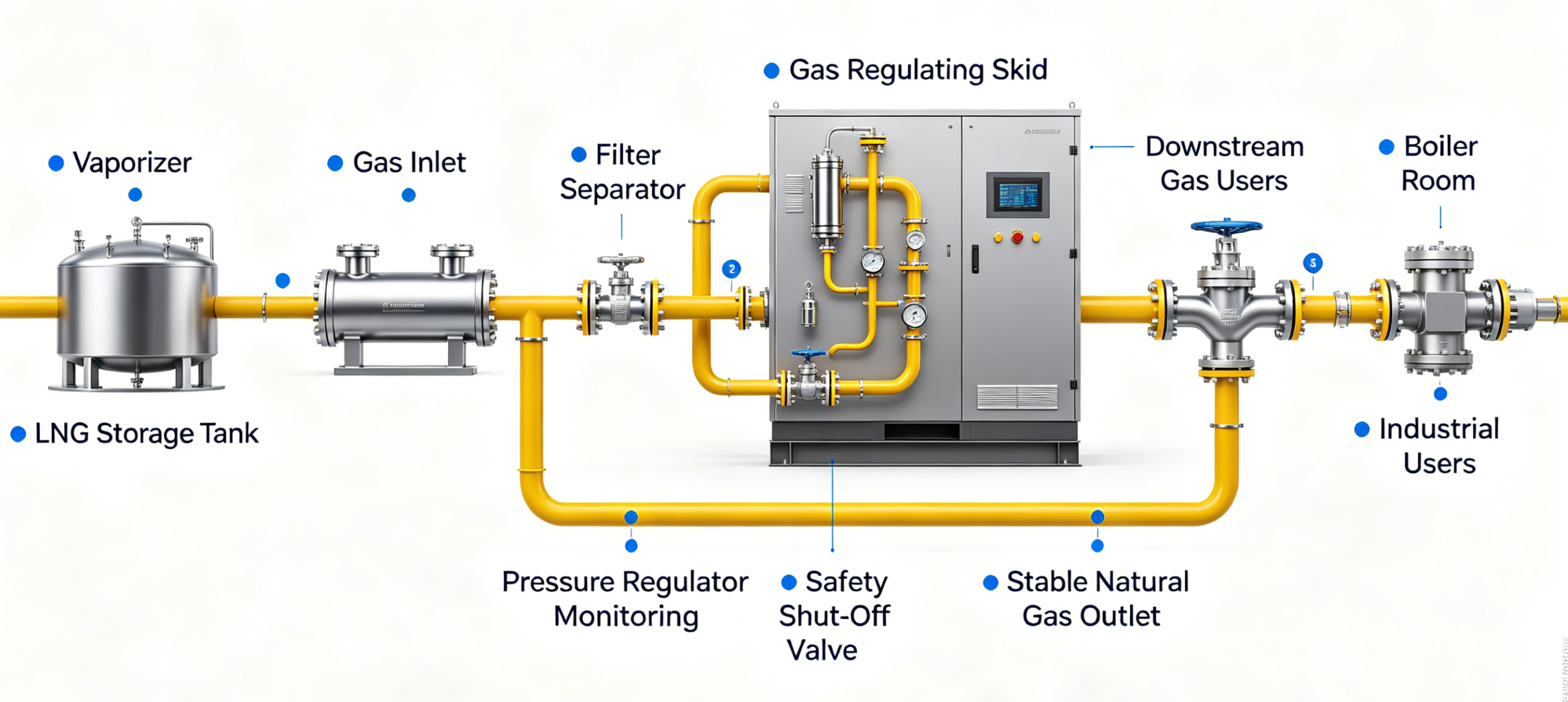

LNG satellite stations are commonly used where pipeline natural gas supply is limited or where industrial users need a stable local gas supply. LNG is stored at low temperature, vaporized through vaporizers, and then regulated to the pressure required by downstream users.
After vaporization, gas pressure may need to be reduced and stabilized before entering boilers, burners, heating systems, production lines, city gas distribution networks, or industrial utility systems. If the pressure regulation is unstable, downstream equipment may experience pressure fluctuation, burner instability, emergency shutdowns, or unsafe operation.
A gas regulating skid provides a compact and factory-assembled solution that integrates regulators, filters, valves, pressure monitoring, safety protection, venting, control cabinet, piping, and skid frame into one system.
Typical LNG Satellite Station Applications
Gas pressure regulation after LNG vaporization
Natural gas supply for industrial boiler rooms
Gas supply for industrial parks and manufacturing plants
City gas or commercial gas distribution stations
Fuel gas supply for burners, furnaces, and heating systems
Backup or peak-shaving gas supply systems
2. Key Parameters Required Before Skid Design

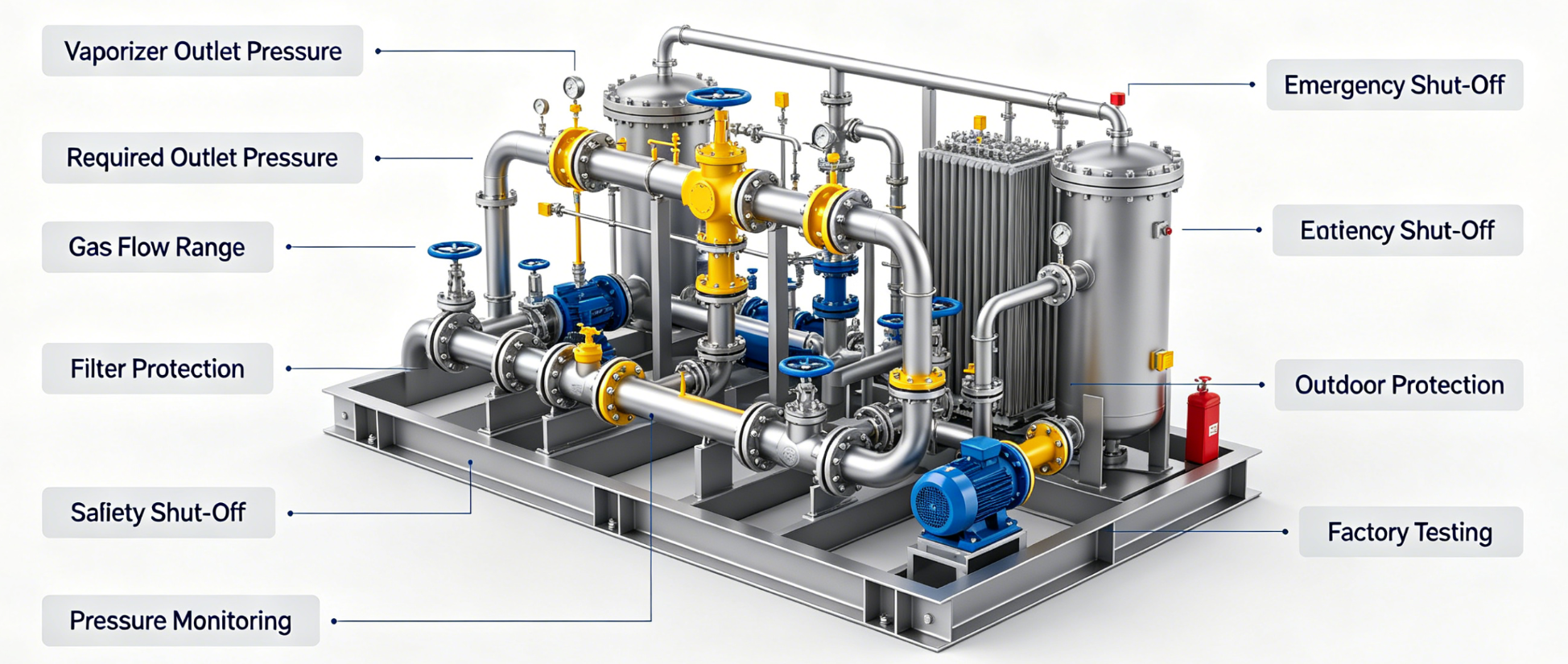

Before designing a gas regulating skid for an LNG satellite station, buyers should provide complete operating data. The supplier needs to understand gas medium, inlet pressure after vaporization, required outlet pressure, gas flow range, gas temperature, vaporizer capacity, station operation mode, downstream application, and control requirements.
Flow range is especially important. LNG satellite stations may operate under different loads during startup, low demand, normal supply, and peak demand. The regulator must maintain stable outlet pressure across the required flow range, not only at one design point.
A complete inquiry helps the manufacturer select the correct regulator, filter, safety shut-off valve, relief valve, pressure transmitter, pipe size, skid layout, and control system configuration.
LNG Satellite Station Gas Skid Data Checklist
| Required Data | Why It Matters |
|---|---|
| Gas Medium | Confirms material, sealing, filtration, safety, and regulator selection. |
| Inlet Pressure After Vaporization | Determines regulator pressure class and pressure reduction design. |
| Required Outlet Pressure | Matches downstream users such as boilers, burners, or gas networks. |
| Gas Flow Range | Ensures stable pressure regulation at minimum, normal, and peak demand. |
| Station Layout | Affects skid footprint, inlet/outlet direction, installation space, and maintenance access. |
3. Main Components Of An LNG Station Gas Regulating Skid

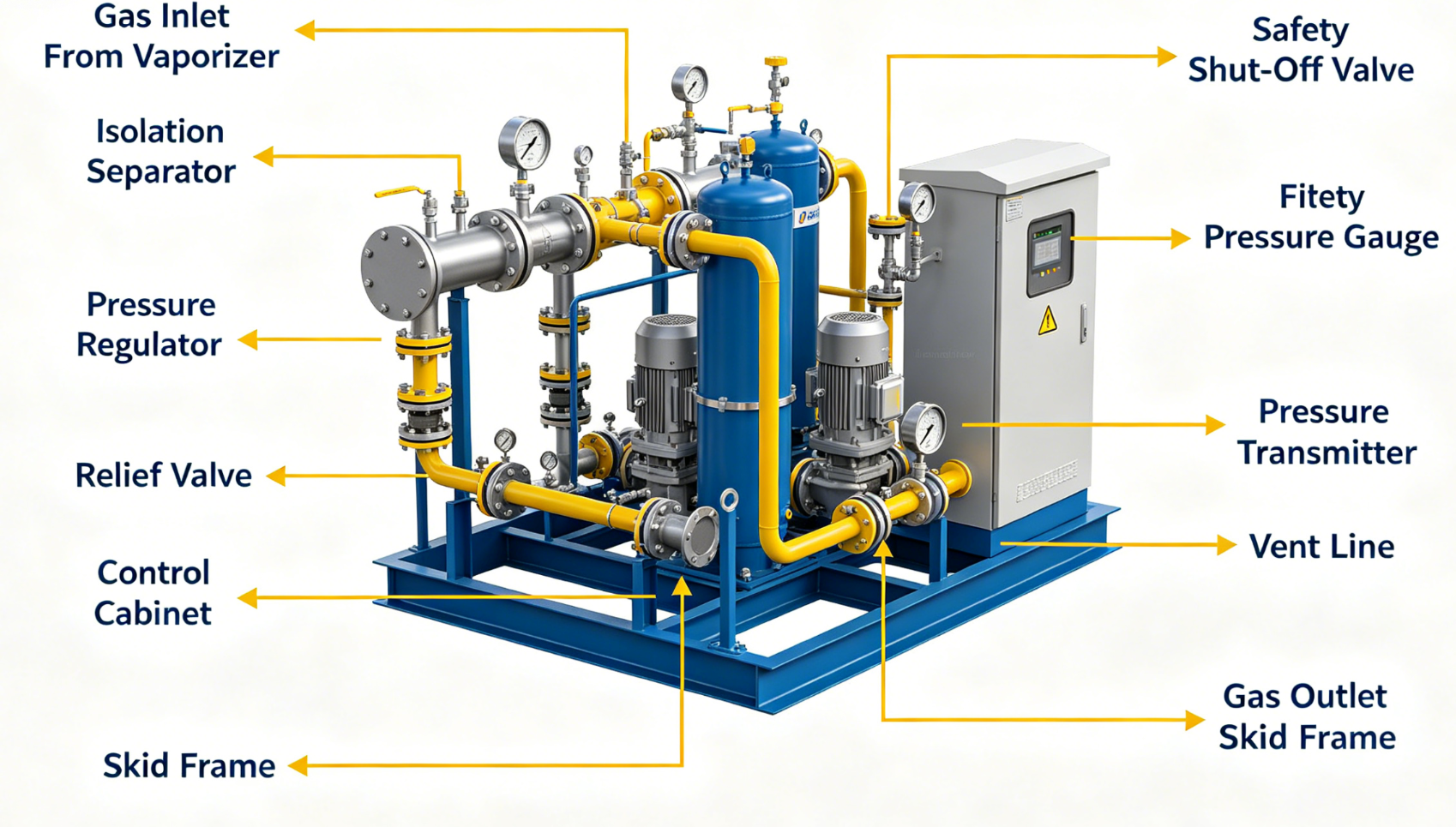

A gas regulating skid for LNG satellite stations is usually designed as an integrated package. It may include inlet isolation valve, filter or filter separator, pressure regulator, safety shut-off valve, relief valve, pressure gauges, pressure transmitters, temperature sensor, outlet isolation valve, vent line, bypass line, control cabinet, piping, supports, and skid-mounted frame.
The filter section removes particles or impurities before pressure regulation. The pressure regulator reduces gas pressure to the required downstream level. Safety shut-off and relief protection help protect the system from abnormal pressure conditions.
Depending on project requirements, the skid may also include dual-line configuration, one-duty-one-standby design, monitor regulator, flow meter, gas leak detector, emergency shut-off valve, SCADA interface, or remote monitoring module.
| Component | Function |
|---|---|
| Filter / Filter Separator | Removes impurities before gas enters the regulator and downstream equipment. |
| Pressure Regulator | Reduces and stabilizes gas pressure after LNG vaporization. |
| Safety Shut-Off Valve | Cuts off gas flow during abnormal pressure or emergency conditions. |
| Relief Valve / Monitor Regulator | Provides overpressure protection for the downstream system. |
| Pressure Transmitter | Provides pressure data for monitoring, alarms, and control system integration. |
4. Safety, Control, And Layout Requirements
LNG satellite stations require careful safety design. The gas regulating skid should include suitable overpressure protection, underpressure protection, pressure monitoring, emergency shut-off, venting arrangement, and alarm output when required. For automated stations, signal output may need to connect with PLC, SCADA, or local station monitoring systems.
Layout should also be reviewed early. Buyers should confirm skid footprint, inlet and outlet direction, pipe connection standard, control cabinet location, lifting points, maintenance space, and installation environment. Good layout reduces site modification and makes operation easier.
For outdoor LNG satellite stations, weather protection, corrosion protection, instrument enclosure grade, and safe maintenance access should also be considered during the skid design stage.
Safety And Layout Checklist
Confirm overpressure and underpressure protection requirements.
Check safety shut-off valve and relief protection configuration.
Confirm pressure gauge and pressure transmitter locations.
Review gas leak detection and emergency shut-off requirements.
Check skid footprint, inlet/outlet direction, and maintenance access.
Confirm vent line, drain point, and safe discharge arrangement.
Review control cabinet, alarm output, and remote monitoring needs.
Define FAT, pressure test, leak test, and final documentation scope.

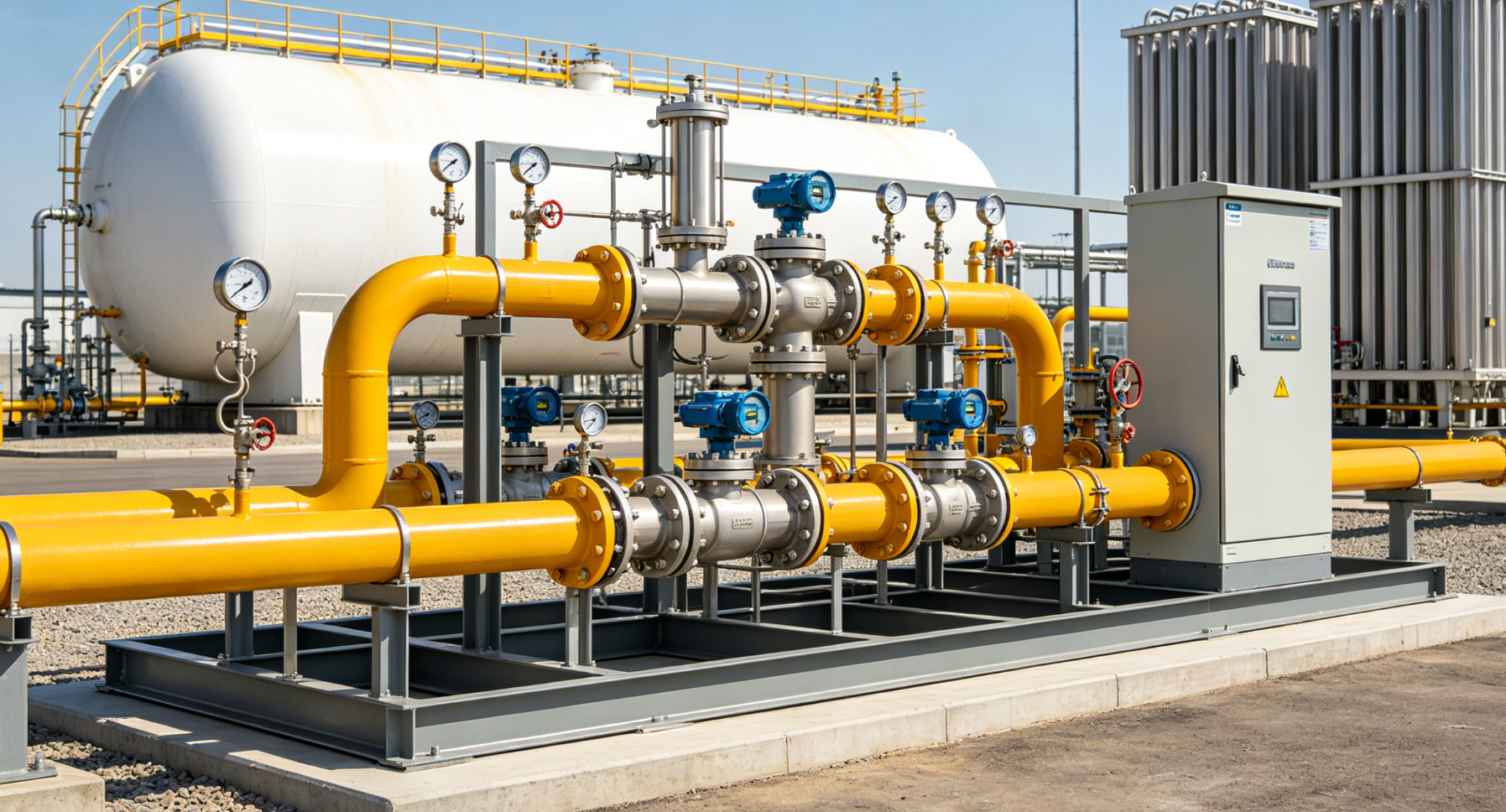

5. Why Skid-Mounted Design Is Suitable For LNG Satellite Stations
LNG satellite station projects often require compact layout, fast installation, reliable safety protection, and clear equipment interfaces. A skid-mounted gas regulating system can be designed and assembled in the factory before delivery, helping reduce site welding, installation errors, missing components, and commissioning uncertainty.
Before shipment, the supplier can complete assembly inspection, pressure test, leak test, functional inspection, instrument check, final photos, and document preparation. This gives buyers a clearer view of equipment quality before the skid reaches the site.
A well-designed skid can improve station pressure stability, simplify installation, reduce project risk, and support safe long-term natural gas supply.
Practical Tip
For LNG satellite stations, buyers should not only ask for a gas regulator. A complete skid solution should include filtration, pressure regulation, safety shut-off, overpressure protection, monitoring instruments, control interface, testing, and documentation.
Final Buyer Checklist
Provide gas medium, inlet pressure, outlet pressure, and flow range.
Confirm LNG vaporizer outlet conditions and downstream application.
Review pressure regulator, filter, safety shut-off, and relief protection scope.
Confirm pressure monitoring, alarm output, and control signal requirements.
Check station layout, skid footprint, inlet/outlet direction, and maintenance access.
Review weather protection and corrosion protection for outdoor installation.
Request P&ID, GA drawing, data sheets, test reports, and manuals.
Confirm pressure test, leak test, FAT, packing, and delivery details.
Conclusion
A gas regulating skid for LNG satellite stations should be designed according to vaporized gas pressure, downstream outlet pressure, flow demand, safety protection, control requirements, station layout, testing standards, and documentation requirements.
For industrial buyers, a skid-mounted gas regulating system helps improve station reliability, reduce site installation risk, protect downstream users, and support stable natural gas supply after LNG vaporization.
FAQ
What is a gas regulating skid for LNG satellite stations?
It is a skid-mounted system used to filter, reduce, stabilize, monitor, and protect gas pressure after LNG vaporization before gas enters downstream users.
What information is needed before quotation?
Buyers should provide gas medium, inlet pressure after vaporization, outlet pressure, flow range, gas temperature, station layout, downstream application, and safety requirements.
What safety devices are commonly included?
Common safety devices include safety shut-off valve, relief valve, pressure transmitter, pressure gauge, vent line, emergency shut-off valve, and gas leak detection when required.
Why choose a skid-mounted design?
Skid-mounted design reduces site installation work, improves factory quality control, supports pre-shipment testing, and makes LNG station operation and maintenance easier.
