Skid-Mounted Steam Control System For Industrial Process Lines
2026-05-25 14:001. Why Industrial Process Lines Need Steam Control Systems
Steam is widely used in industrial process lines for heating, drying, sterilization, reaction, evaporation, cleaning, humidification, and temperature control. Different process equipment may require different steam pressure and temperature levels. If steam conditions are unstable, the process may suffer from poor product quality, temperature fluctuation, equipment alarms, or production downtime.

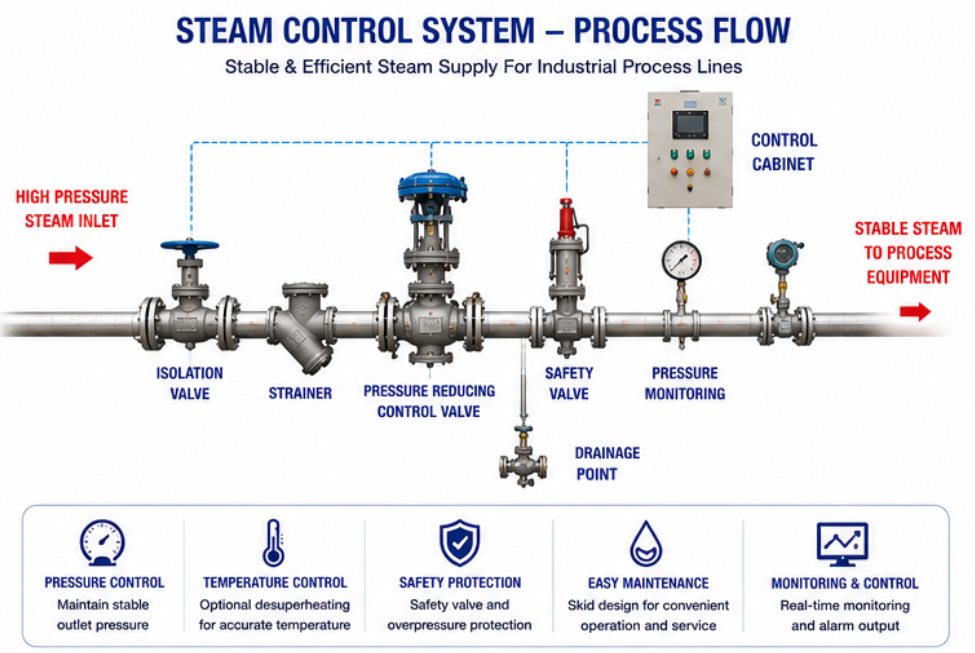

A skid-mounted steam control system helps reduce high-pressure steam to the required process pressure, stabilize outlet conditions, monitor operating data, and protect downstream equipment from overpressure, water hammer, vibration, and control instability.
Compared with assembling valves and instruments separately on site, a skid-mounted system can be designed, assembled, inspected, and tested in the factory before delivery. This reduces installation uncertainty and improves project execution efficiency.
Typical Industrial Applications
Process steam supply for heat exchangers and reactors
Steam pressure control for drying and curing lines
Steam supply for food processing and sterilization systems
Temperature control for textile, paper, and rubber production lines
Utility steam distribution for chemical and pharmaceutical plants
Steam pressure reducing and desuperheating for production equipment
2. Key Data Required Before System Design
Before selecting a skid-mounted steam control system for industrial process lines, buyers should provide complete working condition data. The supplier needs to understand inlet steam pressure, inlet steam temperature, required outlet pressure, outlet temperature target if desuperheating is needed, steam flow range, process equipment type, control accuracy, site layout, and automation requirements.
Industrial process steam demand may change during startup, normal operation, peak load, batch processing, or product switching. If the system is designed only according to nominal pipe size or one flow value, the control valve may not perform well across the actual operating range.
Providing minimum, normal, and maximum steam flow helps the manufacturer select the correct control valve, safety valve, instruments, pipe size, drainage arrangement, and control logic.
Process Steam Control Data Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure | Determines pressure class, valve rating, and pressure reducing design. |
| Outlet Pressure Requirement | Defines the stable pressure required by downstream process equipment. |
| Steam Temperature | Affects material selection, insulation, and desuperheating requirement. |
| Steam Flow Range | Ensures stable control at minimum, normal, and maximum operating loads. |
| Process Application | Affects response speed, control accuracy, safety design, and system layout. |
3. Main Components Of A Skid-Mounted Steam Control System

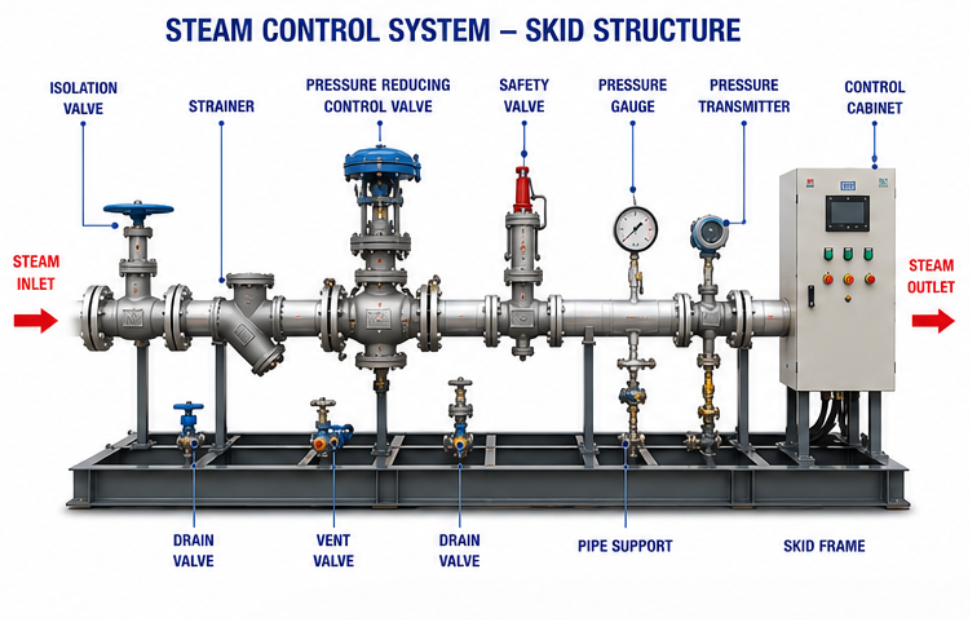

A skid-mounted steam control system is usually designed as a complete package instead of a single valve assembly. It may include inlet isolation valve, strainer, pressure reducing control valve, actuator, positioner, safety valve, pressure gauges, pressure transmitters, temperature sensors, drain valves, vent valves, bypass line, control cabinet, piping, pipe supports, and skid frame.
If outlet steam temperature needs to be controlled, the system can also include a desuperheater, spray water control valve, spray water inlet, temperature feedback loop, and downstream straight pipe arrangement. Pressure control and temperature control should be reviewed together to avoid unstable process operation.
Buyers should compare the complete scope of supply. A low quotation may exclude control cabinet, transmitters, safety valve, desuperheating section, testing, documents, or important accessories required for reliable process operation.
| Component | Function |
|---|---|
| Pressure Reducing Control Valve | Reduces and stabilizes steam pressure for process equipment. |
| Safety Valve | Protects downstream equipment from overpressure. |
| Pressure Transmitter | Provides feedback for monitoring, alarms, and automatic control. |
| Drain And Vent Valves | Support startup drainage, condensate removal, maintenance, and safe operation. |
| Control Cabinet | Supports local control, alarms, signal output, and plant system integration. |
4. Control Accuracy, Safety, And Drainage Requirements
Industrial process lines may be sensitive to steam pressure and temperature changes. The steam control system should therefore provide stable pressure regulation, accurate feedback, reliable safety protection, and fast response under changing load conditions. Control valve sizing, actuator selection, positioner configuration, and transmitter location should be reviewed carefully.
Safety protection is also essential. The system should include suitable overpressure protection, pressure monitoring, alarm output, and emergency control logic when required. For automated factories, the skid may need to connect with DCS, PLC, SCADA, or local process control systems.
Drainage design should not be ignored. Condensate accumulation can cause water hammer, vibration, unstable operation, and equipment damage. Proper drain points, vent points, pipe slope, and startup procedure help improve long-term reliability.

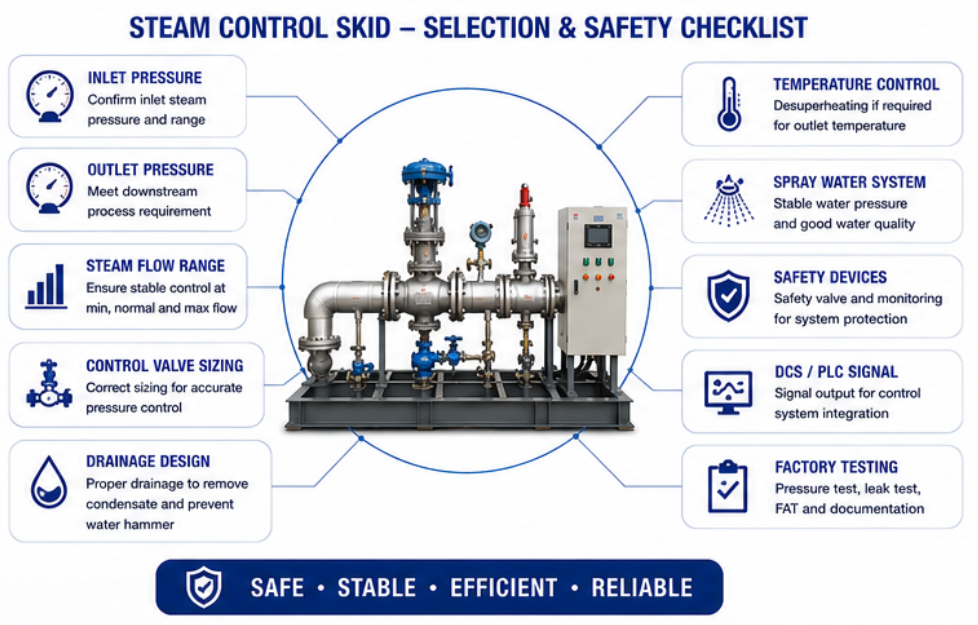

Control And Safety Checklist
Confirm control valve sizing and calculated flow capacity.
Review actuator type, positioner, and control signal compatibility.
Check pressure transmitter and temperature sensor installation positions.
Confirm safety valve sizing and set pressure.
Review drain points, vent points, and condensate removal design.
Confirm DCS / PLC / SCADA signal requirements.
Check pipe supports, vibration control, and maintenance access.
Define FAT, pressure test, leak test, and final document requirements.
5. Why Skid-Mounted Design Is Better For Process Line Projects
Process line projects often require short installation time, predictable quality, clear interfaces, and reliable documentation. A skid-mounted steam control system can reduce site welding, minimize missing parts, shorten installation time, and make commissioning easier.
Before delivery, the supplier can complete assembly inspection, pressure test, leak test, instrument check, control cabinet inspection, functional inspection, and final documentation. Buyers can review photos, test records, drawings, and packing details before shipment.
For overseas projects, factory-assembled skid systems help reduce site uncertainty and improve communication between the buyer, supplier, contractor, and end user.
Practical Tip
For industrial process lines, buyers should not only ask for a steam control valve. A complete steam control skid should include pressure control, safety protection, drainage, instruments, control interface, testing, and documentation.
Final Buyer Checklist
Provide inlet pressure, outlet pressure, steam temperature, and flow range.
Confirm downstream process equipment and required control accuracy.
Review control valve, safety valve, instruments, and control cabinet scope.
Confirm whether desuperheating is needed for outlet temperature control.
Check drainage design, pipe support, and maintenance access.
Review skid footprint, inlet/outlet direction, and site layout.
Request P&ID, GA drawing, data sheets, test reports, and manuals.
Confirm pressure test, leak test, FAT, packing, and delivery details.
Conclusion
A skid-mounted steam control system for industrial process lines should be designed according to real steam pressure, temperature, flow range, downstream process requirements, control accuracy, safety protection, drainage design, automation interface, and documentation standards.
For industrial buyers, a properly engineered skid-mounted system can improve process steam stability, reduce site installation risk, protect downstream equipment, and support long-term production reliability.
FAQ
What is a skid-mounted steam control system?
It is a factory-assembled steam control package that integrates valves, instruments, safety devices, piping, control cabinet, and skid frame for stable process steam supply.
What information is needed before quotation?
Buyers should provide inlet steam pressure, outlet pressure, steam temperature, flow range, downstream application, control requirements, pipe size, and site layout.
Can the system include desuperheating?
Yes. If outlet steam temperature needs to be reduced, the skid can include a desuperheater, spray water control valve, temperature sensor, and control loop.
Why choose a skid-mounted design?
Skid-mounted design reduces site installation work, improves factory quality control, supports pre-shipment testing, and makes operation and maintenance easier.
