Steam Desuperheating System For Power Plant Steam Lines
2026-05-24 13:541. Why Power Plant Steam Lines Need Desuperheating
In power plants, steam temperature stability is critical for safe and efficient operation. Superheated steam may need to be cooled before it enters auxiliary steam systems, process heating lines, district heating networks, deaerators, heat exchangers, bypass systems, or other downstream users.
If steam temperature is too high, downstream equipment may face thermal stress, sealing damage, material fatigue, or unstable process performance. If temperature control is poor, the plant may experience fluctuating steam conditions, inefficient heat transfer, water carryover, or operational alarms.
A properly designed steam desuperheating system helps maintain outlet steam temperature within the required range, improves equipment protection, and supports stable plant operation under changing load conditions.
Typical Power Plant Applications
Auxiliary steam temperature control
Steam bypass and pressure reducing desuperheating systems
Steam supply for deaerators and heat exchangers
District heating or process heating steam lines
Boiler outlet steam conditioning systems
Steam line protection for downstream equipment
2. Key Data Required Before System Selection
Before selecting a steam desuperheating system for power plant steam lines, buyers should provide complete working conditions. The supplier needs to know inlet steam pressure, inlet steam temperature, required outlet temperature, steam flow range, steam type, spray water pressure, spray water temperature, spray water quality, installation layout, and control requirements.
Power plant steam load can change during startup, shutdown, load adjustment, bypass operation, and normal generation conditions. The desuperheating system must be able to respond to these changes without causing wet steam, temperature overshoot, or unstable control.
Complete data helps the manufacturer select the right desuperheater type, spray water control valve, nozzle design, temperature sensor position, control logic, and downstream pipe arrangement.
Power Plant Desuperheating Data Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure | Determines pressure class, nozzle design, and system safety requirements. |
| Inlet Steam Temperature | Defines how much temperature reduction is required. |
| Outlet Temperature Target | Sets the final control target for downstream equipment. |
| Steam Flow Range | Ensures stable operation at minimum, normal, and maximum load. |
| Spray Water Conditions | Affects atomization quality, evaporation, and outlet temperature stability. |

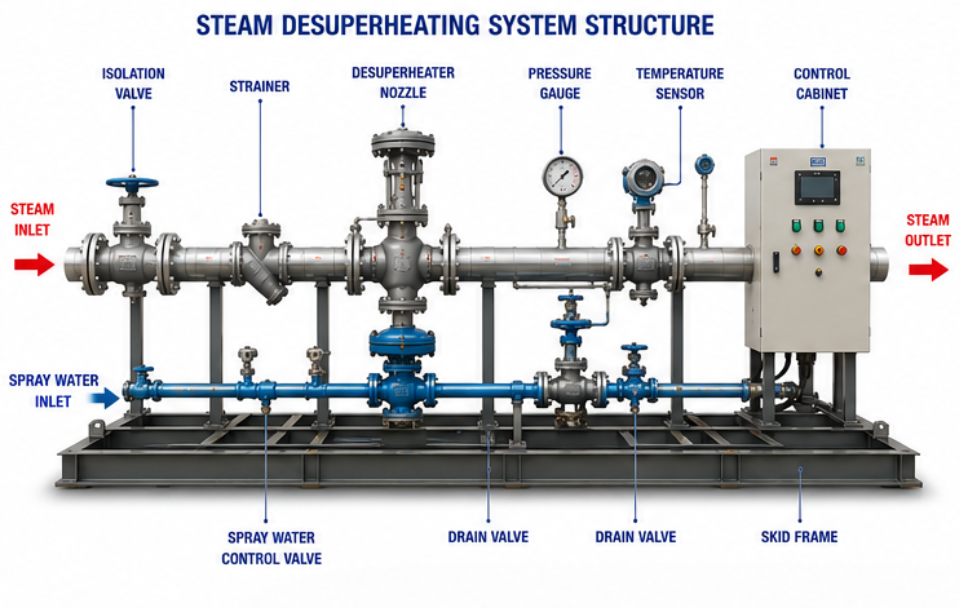

3. Main Components Of A Steam Desuperheating System
A steam desuperheating system for power plant steam lines may include desuperheater body, spray water nozzle, spray water control valve, isolation valves, pressure gauges, pressure transmitters, temperature sensors, drain valves, control cabinet, piping, pipe supports, and skid-mounted frame when required.
The desuperheater nozzle is responsible for injecting spray water into the steam flow. The spray water control valve adjusts water flow based on temperature feedback. The temperature sensor must be installed at a suitable downstream position to ensure accurate measurement after water evaporation and steam mixing.
For high-pressure or variable-load power plant applications, the system may require high-performance nozzles, precise spray water control, reliable automation, and sufficient downstream straight pipe length.
| Component | Function |
|---|---|
| Desuperheater Nozzle | Injects spray water into superheated steam for temperature reduction. |
| Spray Water Control Valve | Controls spray water flow according to outlet temperature feedback. |
| Temperature Sensor | Provides outlet steam temperature feedback for automatic control. |
| Drain Valve | Helps remove condensate or unevaporated water during operation and startup. |
| Control Cabinet | Supports temperature control, alarms, signal output, and plant system integration. |

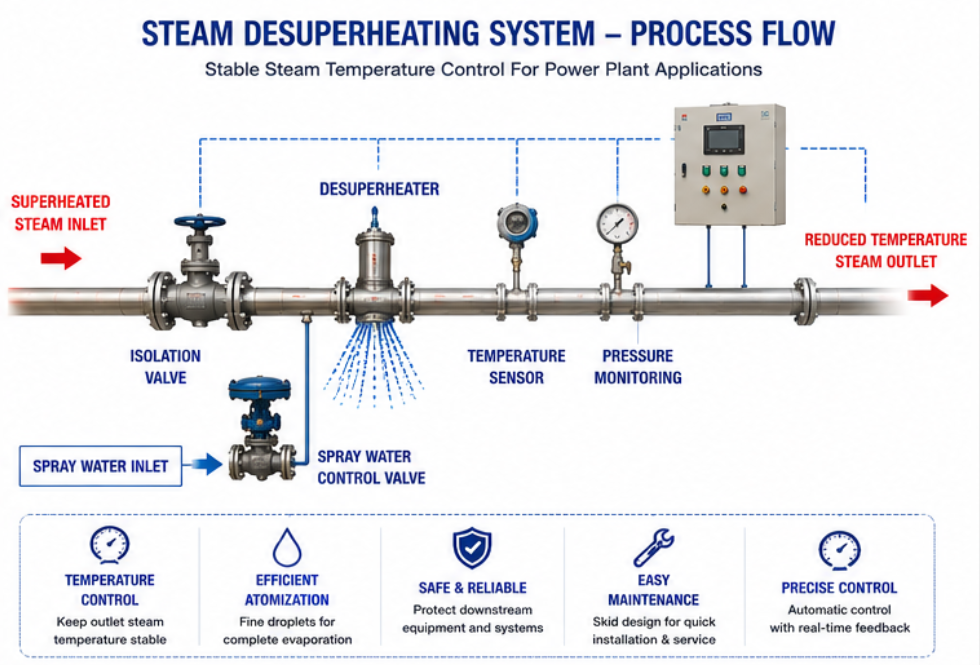

4. Spray Water, Atomization, And Piping Layout Requirements
Spray water quality and atomization directly affect desuperheating performance. If spray water pressure is too low, the droplets may be too large and may not evaporate fully. If spray water flow is unstable, outlet steam temperature may fluctuate. If water quality is poor, the nozzle may become blocked, scaled, or damaged.
Downstream piping layout is also important. After spray water is injected, the droplets need enough distance to evaporate and mix with steam before temperature measurement. If the temperature sensor is installed too close to the injection point, the control system may receive unstable feedback and cause poor temperature control.
Power plant buyers should review spray water pressure, water temperature, water quality, available flow, nozzle design, straight pipe length, drainage points, pipe support, and maintenance access before final approval.

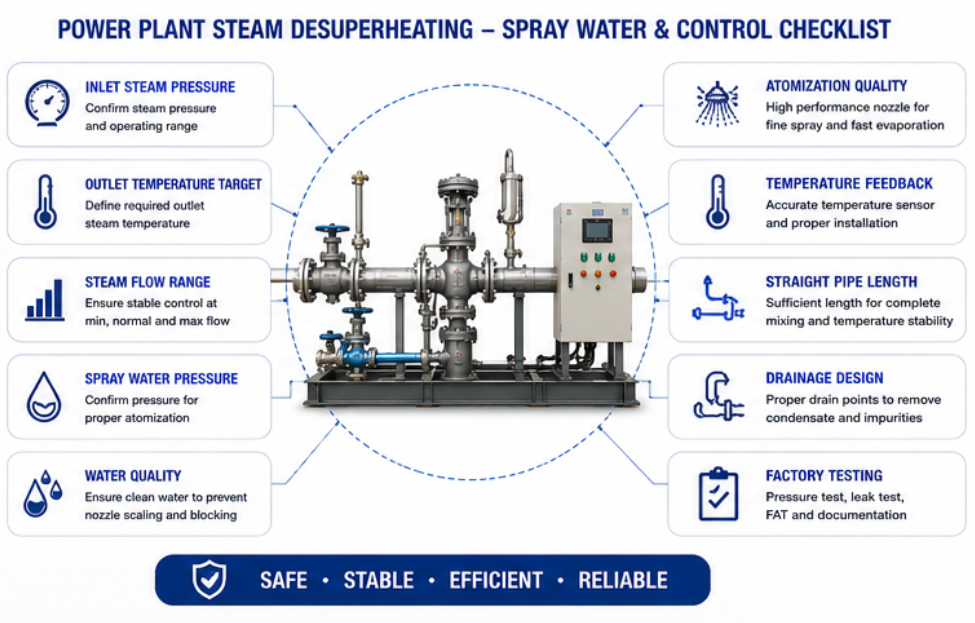

Spray Water And Layout Checklist
Confirm spray water pressure and available flow.
Check spray water temperature and water quality.
Review nozzle atomization performance.
Confirm spray water control valve sizing and response.
Check downstream straight pipe length.
Confirm temperature sensor location.
Review drainage design and condensate removal.
Check pipe support, vibration control, and maintenance access.
5. Testing, Documentation, And Project Delivery
For power plant projects, testing and documentation are essential. Before shipment, the supplier should check pressure-bearing parts, valve installation, nozzle assembly, instrument installation, control cabinet wiring, skid layout, and final appearance. Depending on project requirements, pressure test, leak test, functional inspection, instrument check, and FAT may be required.
Buyers should request technical proposal, P&ID, general arrangement drawing, component list, valve data sheets, instrument data sheets, test reports, operation manual, packing information, and final inspection photos.
Clear documentation helps the power plant project team install, commission, operate, maintain, and troubleshoot the desuperheating system more efficiently.
Practical Tip
For power plant steam lines, buyers should not evaluate a desuperheating system only by nozzle size. The correct solution should include spray water control, temperature feedback, downstream pipe layout, drainage, testing, and complete documentation.
Final Buyer Checklist
Provide inlet steam pressure, temperature, and flow range.
Confirm required outlet steam temperature.
Provide spray water pressure, temperature, quality, and available flow.
Review desuperheater nozzle type and spray water control valve.
Confirm temperature sensor position and downstream straight pipe length.
Check drainage, pipe support, and vibration control.
Request P&ID, GA drawing, data sheets, test reports, and manuals.
Confirm pressure test, leak test, FAT, packing, and delivery details.
Conclusion
A steam desuperheating system for power plant steam lines should be selected according to steam conditions, outlet temperature target, spray water conditions, control accuracy, nozzle design, piping layout, drainage, testing, and documentation requirements.
For power plant buyers, a reliable desuperheating solution helps improve steam temperature stability, protect downstream equipment, reduce water carryover risk, and support safe long-term plant operation.
FAQ
What is a steam desuperheating system for power plant steam lines?
It is a system used to reduce superheated steam temperature by injecting controlled spray water into the steam flow and stabilizing outlet steam temperature.
What information is needed before quotation?
Buyers should provide steam pressure, steam temperature, steam flow range, outlet temperature target, spray water pressure, spray water temperature, water quality, and installation layout.
Why is spray water pressure important?
Spray water pressure affects atomization quality. Better atomization helps water droplets evaporate faster and improves outlet temperature stability.
Why is downstream straight pipe length important?
Enough downstream straight pipe length helps spray water evaporate fully and allows the temperature sensor to measure stable steam temperature.
