Steam Pressure Reducing Skid For Chemical Plant Utility Systems
2026-05-23 13:521. Why Chemical Plants Need Steam Pressure Reducing Skids
In chemical plants, steam is often distributed from a high-pressure boiler or central steam header to multiple utility users. Different process sections may require different steam pressures. If the pressure is not properly reduced and controlled, downstream equipment may experience unstable heating, temperature fluctuation, process instability, safety alarms, or equipment damage.

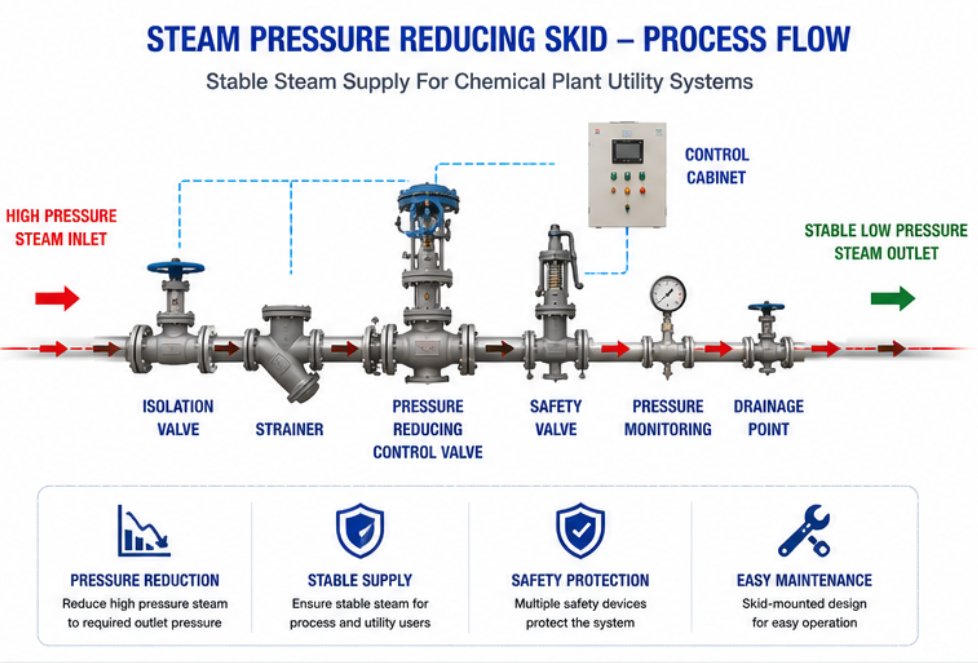

A steam pressure reducing skid provides a compact and controlled solution by integrating the pressure reducing valve, control valve, safety valve, instruments, drain points, pipe supports, control cabinet, and skid-mounted frame into one engineered package. Compared with site assembly, a skid-mounted solution can be pre-designed, pre-assembled, inspected, and tested before delivery.
For chemical utility systems, this reduces installation uncertainty and helps the plant maintain stable steam pressure for production, heating, cleaning, tracing, and process support.
Typical Chemical Plant Applications
Steam supply for reactors and process heating systems
Steam pressure control for heat exchangers
Utility steam distribution for chemical production lines
Steam tracing for pipelines, tanks, and process equipment
Steam supply for dryers, evaporators, and distillation units
Boiler room steam pressure reduction before plant distribution
2. Key Steam Data Required Before Skid Design
Before selecting a steam pressure reducing skid for a chemical plant utility system, buyers should provide complete steam working conditions. The supplier needs to know the inlet pressure, inlet temperature, required outlet pressure, outlet temperature if desuperheating is included, maximum flow, normal flow, minimum flow, steam type, pipe size, and downstream process requirements.
Chemical plant steam demand may change during startup, normal production, batch operation, process switching, and peak load. If the skid is selected only according to normal flow, the pressure reducing valve may be oversized or undersized, which can cause pressure fluctuation, valve hunting, noise, vibration, or insufficient steam supply.
The more accurate the steam data, the easier it is to select the correct valve, safety device, pipe size, instrument configuration, and control logic.
Chemical Plant Steam Skid Data Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure | Determines pressure class, valve rating, and pressure reduction design. |
| Required Outlet Pressure | Matches the downstream process or utility steam pressure requirement. |
| Steam Temperature | Affects material selection, insulation, and desuperheating requirement. |
| Steam Flow Range | Ensures stable control at minimum, normal, and maximum operating loads. |
| Downstream Process | Affects control accuracy, response speed, safety design, and system layout. |
3. Main Components Of A Chemical Plant Steam Pressure Reducing Skid

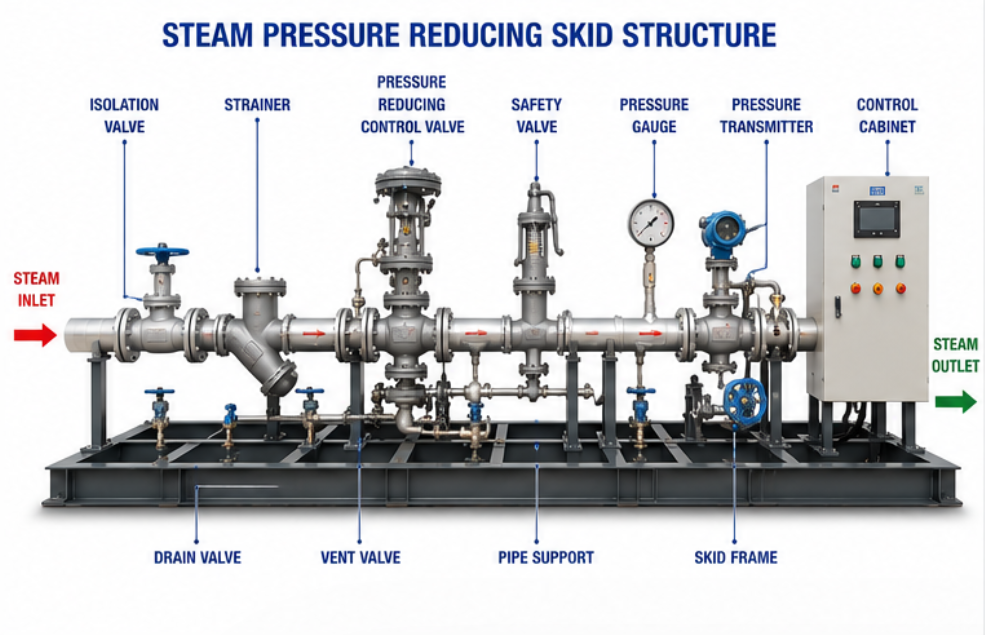

A steam pressure reducing skid for chemical plant utility systems is usually designed as an integrated package. It may include inlet isolation valve, strainer, pressure reducing control valve, actuator, positioner, safety valve, pressure gauges, pressure transmitters, temperature sensors, drain valves, vent valves, bypass line, control cabinet, piping, pipe supports, and skid frame.
If superheated steam temperature needs to be reduced, the skid can also include a desuperheater, spray water control valve, spray water inlet, temperature feedback loop, and downstream straight pipe arrangement. For chemical plants, pressure and temperature control may need to work together to keep utility steam stable and safe for process users.
Buyers should compare the complete scope of supply instead of only checking the pressure reducing valve. A low quotation may exclude instruments, control cabinet, safety devices, testing, or documentation.
| Component | Function |
|---|---|
| Pressure Reducing Control Valve | Reduces high-pressure steam to the required utility pressure. |
| Safety Valve | Protects downstream chemical plant equipment from overpressure. |
| Pressure Transmitter | Provides pressure feedback for monitoring, alarms, and automatic control. |
| Drain And Vent Valves | Support startup drainage, condensate removal, maintenance, and safe operation. |
| Control Cabinet | Supports local control, signal output, alarms, and plant control system integration. |
4. Safety, Drainage, And Control Requirements In Chemical Plants
Chemical plant utility systems often have strict safety and reliability requirements. The steam pressure reducing skid should include suitable overpressure protection, pressure monitoring, temperature monitoring, alarm output, drain points, vent points, and safe maintenance access. If the process is sensitive to pressure fluctuation, the control valve and control logic should be reviewed carefully.
Drainage is especially important in steam systems. Condensate accumulation may cause water hammer, vibration, valve damage, and unstable operation. The skid should include proper drainage before and after the pressure reducing section, especially during startup and shutdown.
For automated chemical plants, the skid may need signal output to DCS, PLC, or plant monitoring systems. Buyers should confirm control signal type, alarm logic, fail-safe requirements, and local operation needs before quotation.

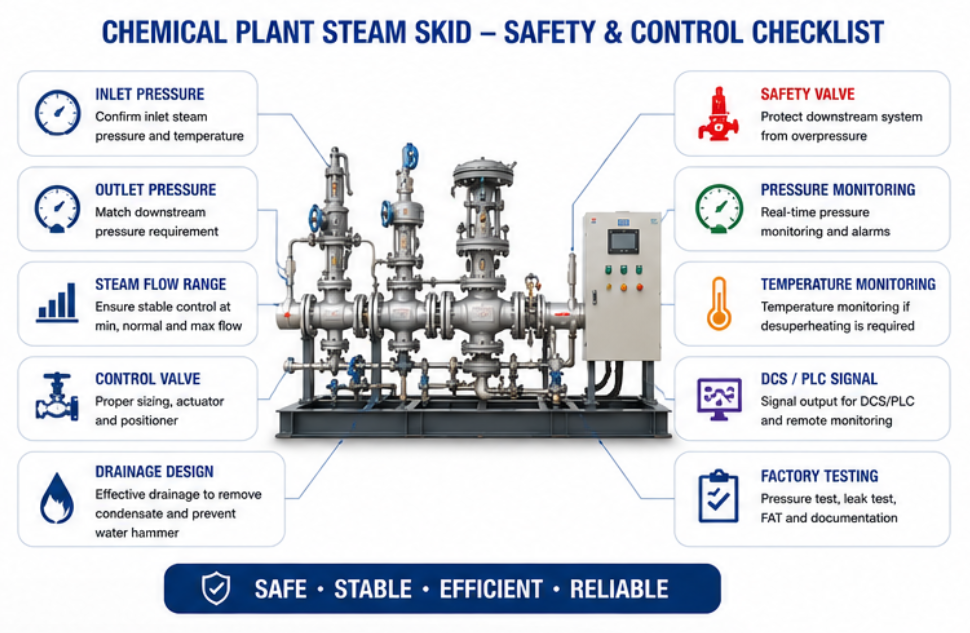

Safety And Control Checklist
Confirm safety valve sizing and set pressure.
Check pressure transmitter and pressure gauge locations.
Review control valve sizing, actuator, and positioner configuration.
Confirm alarm output and DCS / PLC signal requirements.
Check drain points, vent points, and condensate removal design.
Review pipe supports, vibration control, and maintenance access.
Confirm desuperheating requirement if outlet temperature control is needed.
Define FAT, pressure test, leak test, and final documentation scope.
5. Why Skid-Mounted Design Helps Chemical Plant Projects
Chemical plant projects usually require clear engineering coordination, controlled quality, reliable documentation, and predictable site installation. A skid-mounted steam pressure reducing system can be designed and assembled in the factory before shipment, reducing site welding, layout mistakes, missing parts, and commissioning uncertainty.
Before delivery, the supplier can provide pressure test, leak test, visual inspection, functional inspection, instrument check, final photos, drawings, and test reports. This is especially useful for overseas projects where correcting issues after shipment can be expensive.
A well-designed skid also makes plant operation and maintenance easier because valves, instruments, drains, vents, and control components are arranged in an organized and accessible layout.
Practical Tip
For chemical plant utility systems, buyers should not only ask for a steam pressure reducing valve. A complete skid solution should include pressure control, safety protection, drainage, instrumentation, layout design, testing, and documentation.
Final Buyer Checklist
Provide inlet pressure, outlet pressure, temperature, and steam flow range.
Confirm downstream chemical plant process or utility application.
Review control valve sizing, trim type, actuator, and positioner.
Check safety valve, pressure monitoring, drain, and vent arrangement.
Confirm whether desuperheating is needed for outlet temperature control.
Review skid layout, inlet/outlet direction, and maintenance access.
Request P&ID, GA drawing, data sheets, test reports, and manuals.
Confirm pressure test, leak test, FAT, packing, and delivery details.
Conclusion
A steam pressure reducing skid for chemical plant utility systems should be selected according to real steam pressure, temperature, flow range, downstream process requirements, safety protection, drainage design, control accuracy, and documentation standards. It is not only a valve package, but a complete engineered steam control solution.
For industrial buyers, the safest approach is to provide complete working conditions and work with a supplier that can design, assemble, test, and document the skid as an integrated chemical plant utility system.
FAQ
What is a steam pressure reducing skid for chemical plant utility systems?
It is a skid-mounted system used to reduce, stabilize, monitor, and protect steam pressure before steam enters chemical plant utility users or process equipment.
What information is needed before quotation?
Buyers should provide inlet steam pressure, outlet pressure, steam temperature, flow range, downstream application, pipe size, control requirements, and site layout.
Why is drainage important in steam pressure reducing systems?
Proper drainage helps remove condensate, prevent water hammer, reduce vibration, and protect valves, instruments, and downstream equipment.
Is skid-mounted design better than site assembly?
For many chemical plant projects, skid-mounted design improves factory quality control, reduces site installation work, supports pre-shipment testing, and makes documentation easier.
