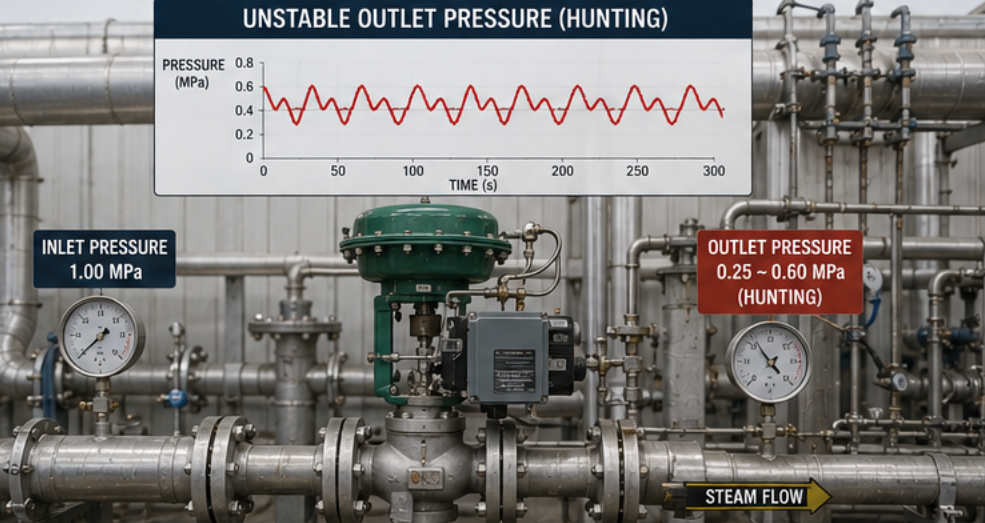

1. What Is Steam Pressure Hunting?

Steam pressure hunting means the outlet pressure after a pressure reducing valve does not remain stable. Instead, it rises and falls repeatedly. The control valve may open, close, open again, and continue cycling. In some systems, the pressure gauge needle shakes, the actuator moves frequently, and downstream process temperature becomes unstable.

This problem can appear after a new PRV installation, after factory expansion, after production load changes, or after replacing an old valve with a new model. It may also happen when the system operates at very low steam flow compared with the original design condition.

If pressure hunting is not corrected, it may cause unstable heating, poor process control, valve wear, actuator damage, noise, vibration, water hammer risk, and repeated maintenance.

Common Symptoms

• Outlet pressure repeatedly rises and falls after the pressure reducing valve.

• Pressure gauge needle shakes or oscillates during operation.

• Control valve actuator moves frequently even when demand is stable.

• Downstream equipment temperature becomes unstable.

• Steam line noise, vibration, or water hammer appears near the PRV station.

• The problem becomes worse during low-load operation or sudden load changes.

2. Main Causes Of Pressure Hunting After A PRV

Steam pressure hunting should be treated as a system problem. The pressure reducing valve, actuator, controller, pressure transmitter, strainer, pipe layout, steam demand, and condensate drainage should all be checked together.

Troubleshooting Table

3. First Check Whether The PRV Is Oversized

Oversizing is one of the most common reasons for steam pressure hunting. A valve selected for a very large maximum flow may not control well when the plant is running at low steam demand. The valve may operate near its minimum controllable opening and react too strongly to small changes.

This often happens when a system is designed for future expansion, but the current operating flow is much lower than the design flow. It can also happen when the supplier selects a valve only by pipe size instead of real steam flow range.

Valve Sizing Data To Prepare

• Inlet steam pressure and temperature.

• Required outlet pressure.

• Minimum, normal, and maximum steam flow.

• Actual operating flow during low-load production.

• Future expansion flow if the system is designed with reserve capacity.

• Valve size, actuator type, positioner, and control signal.

4. Check Pressure Feedback And Control Response

Pressure hunting can also happen when the control system receives unstable or delayed feedback. If the pressure transmitter is installed too close to the valve outlet, pipe turbulence may cause unstable readings. If it is installed too far away, the feedback may be delayed and the controller may overcorrect.

Controller tuning is also important. If PID parameters are too aggressive, the valve may open and close too quickly. If actuator response is too fast for the steam system volume, pressure oscillation may continue even when the valve itself is not damaged.

Control Loop Checklist

• Check pressure transmitter installation position.

• Compare transmitter reading with local pressure gauge reading.

• Review PID parameters and control cabinet settings.

• Check actuator speed and valve response time.

• Confirm whether pressure feedback represents stable downstream pressure.

• Check whether downstream steam demand changes too quickly for the control loop.

5. Review Strainers, Drainage, And Downstream Pipe Layout

A blocked strainer before the PRV can restrict steam flow and make valve control unstable. Rust, scale, welding slag, or pipe debris may collect in the strainer screen, especially after new installation or pipeline modification.

Condensate is another important factor. If condensate collects near the pressure reducing valve, the steam flow may become unstable and cause vibration, pressure fluctuation, or water hammer. Drain valves, steam traps, pipe slope, and low-point drainage should be reviewed carefully.

Mechanical Inspection Checklist

• Inspect strainer screen before the pressure reducing valve.

• Check pressure drop across the strainer.

• Drain condensate before and after the reducing section.

• Check steam traps, drain valves, and pipe low points.

• Confirm downstream pipe size and straight pipe length.

• Check whether downstream branch lines open and close suddenly.

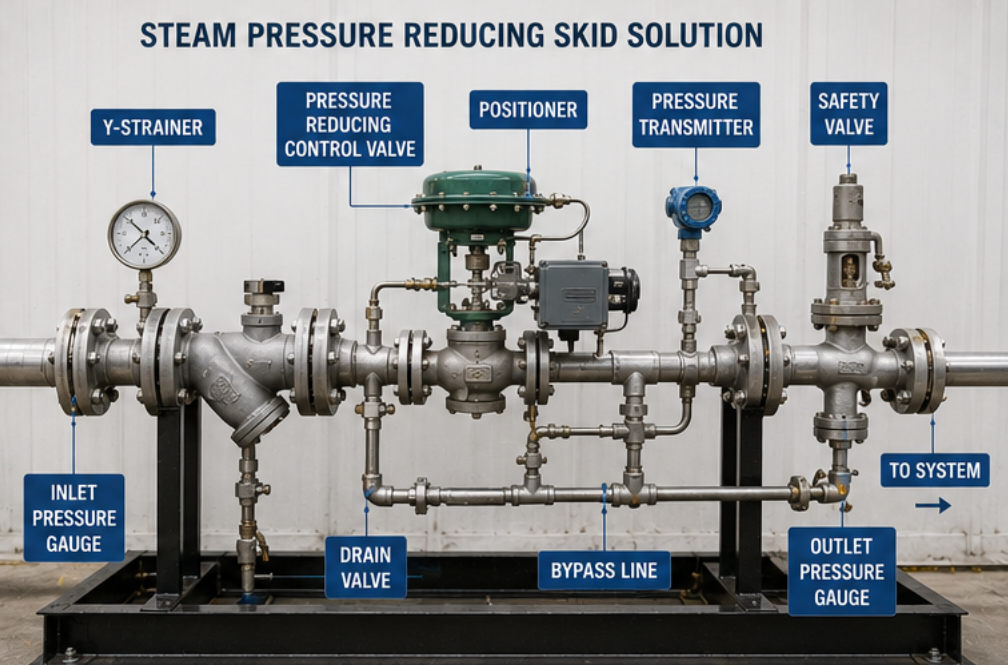

6. How A Steam Pressure Reducing Skid Helps Prevent Hunting

A steam pressure reducing skid can help reduce pressure hunting risk by integrating valve selection, pressure feedback, strainer, safety valve, drain points, pressure transmitters, control cabinet, bypass line, and pipe layout into one engineered package.

Compared with separate site assembly, a skid-mounted system allows the supplier to review valve capacity, instrument location, drainage design, control logic, and factory testing before delivery. If both pressure and temperature control are required, a PRDS system with desuperheating can also be considered.

Engineering Review Checklist

• Confirm actual minimum, normal, and maximum steam flow.

• Check whether the PRV is oversized for current operating load.

• Review pressure transmitter location and feedback stability.

• Check controller tuning and actuator response speed.

• Inspect strainer blockage and differential pressure.

• Check condensate drainage before and after the valve.

• Review downstream pipe layout and demand changes.

• Consider a custom steam pressure reducing skid for stable operation.

Conclusion

Steam pressure hunting after a pressure reducing valve is usually caused by oversized valve selection, low-load operation, unstable pressure feedback, aggressive controller tuning, blocked strainers, condensate accumulation, or poor downstream pipe layout.

A properly designed steam pressure reducing skid can help improve valve sizing, control response, pressure monitoring, drainage, safety protection, and long-term steam supply stability.

FAQ

What causes steam pressure hunting after a PRV?

Common causes include oversized PRV, low-load operation, incorrect PID tuning, unstable pressure transmitter feedback, blocked strainer, condensate accumulation, and downstream load changes.

Can an oversized pressure reducing valve cause hunting?

Yes. If the valve is too large for actual steam demand, it may not control smoothly at low flow and may cause outlet pressure oscillation.

Should the controller be adjusted first?

Controller tuning should be checked, but it should not be the only step. Valve sizing, transmitter location, strainer blockage, condensate, and downstream demand should also be reviewed.

When is a steam pressure reducing skid needed?

A skid-mounted system is useful when the plant needs stable pressure control, correct valve sizing, integrated instruments, proper drainage, factory testing, and easier installation.
