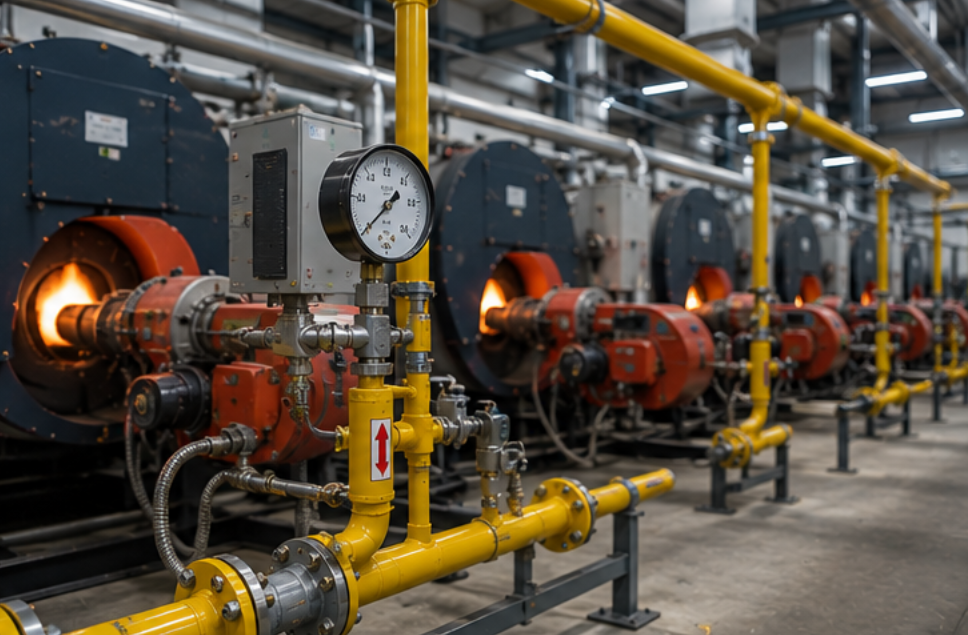

1. Why Stable Gas Pressure Is Critical Before Industrial Burners
Industrial burners are sensitive to gas pressure changes. If the pressure is too low, the burner may fail to ignite or lose flame stability. If the pressure fluctuates, the burner control system may detect unsafe combustion conditions and trigger shutdown protection.
This problem is common in boiler rooms, furnaces, ovens, dryers, heat treatment lines, coating lines, food processing equipment, textile equipment, and other factory heating systems. In many cases, the upstream pressure may look normal, but the pressure near the burner changes during real operation.
To fix unstable gas pressure before industrial burners, the complete gas supply path should be reviewed, including upstream pressure, filter, pressure regulator, gas train, safety devices, pipe size, load changes, and burner gas demand.
Common Symptoms
Burner ignition fails even when gas supply appears available.
Flame becomes unstable during load increase.
Low gas pressure alarm appears during high-fire operation.
Burner shuts down when multiple users run together.
Pressure gauge reading fluctuates before the burner gas train.
Regulator noise, vibration, or hunting appears during operation.
2. Main Causes Of Unstable Gas Pressure Before Burners
Gas pressure instability before burners may come from upstream supply, pressure regulation, filtration, piping, safety devices, or downstream load changes. Before replacing the burner or regulator, buyers should identify where the pressure changes occur.
Troubleshooting Table
| Possible Cause | Typical Result | What To Check |
|---|---|---|
| Blocked Filter Or Separator | Gas flow becomes restricted before the burner. | Filter element, dirt, rust, liquid, and differential pressure. |
| Regulator Undersized | Pressure drops during peak burner demand. | Minimum, normal, and maximum gas flow. |
| Regulator Oversized | Outlet pressure hunts during low-load operation. | Low-fire burner demand and regulator controllable range. |
| Unstable Inlet Pressure | Regulator cannot maintain stable outlet pressure. | Minimum and maximum upstream pressure during operation. |
| Pipe Pressure Loss | Pressure is stable after skid but unstable near burner. | Pipe diameter, pipe length, elbows, valves, and branch lines. |
| Sudden Load Change | Pressure drops when multiple burners start together. | Burner startup sequence and total gas demand. |
3. Check Dynamic Pressure, Not Only Static Pressure
Many burner problems are missed because only static pressure is checked. Static pressure may look normal when the burner is stopped. But when the burner starts, modulates, or reaches high fire, gas flow demand increases and dynamic pressure may drop quickly.
To find the real cause, pressure should be recorded during ignition, low fire, high fire, load change, and multi-burner operation. If pressure only drops during operation, the problem is likely related to flow capacity, filter blockage, pipe loss, or regulator response.
Pressure Data To Record
Upstream pressure before the gas pressure regulating skid.
Pressure before and after the filter or filter separator.
Regulator inlet and outlet pressure.
Pressure before the burner gas train.
Pressure during ignition, low fire, and high fire.
Pressure when multiple burners or boilers run together.
4. Review The Gas Train And Safety Devices
The gas train before an industrial burner may include manual valves, filter, regulator, pressure switch, safety shut-off valve, pressure gauge, pressure transmitter, relief device, and burner control connection. If any part is incorrectly selected, dirty, blocked, or installed in the wrong position, burner pressure may become unstable.
Pressure switch and transmitter positions are also important. If the main pressure gauge is installed far from the burner inlet, the reading may not reflect the real pressure seen by the burner protection system.
Gas Train Checklist
Check filter or separator condition before the burner.
Confirm regulator capacity for low-fire and high-fire operation.
Review pressure switch location and setting value.
Check safety shut-off valve response and reset conditions.
Confirm gauge and transmitter locations reflect real burner inlet pressure.
Inspect valves, flanges, vents, and bypass arrangement.

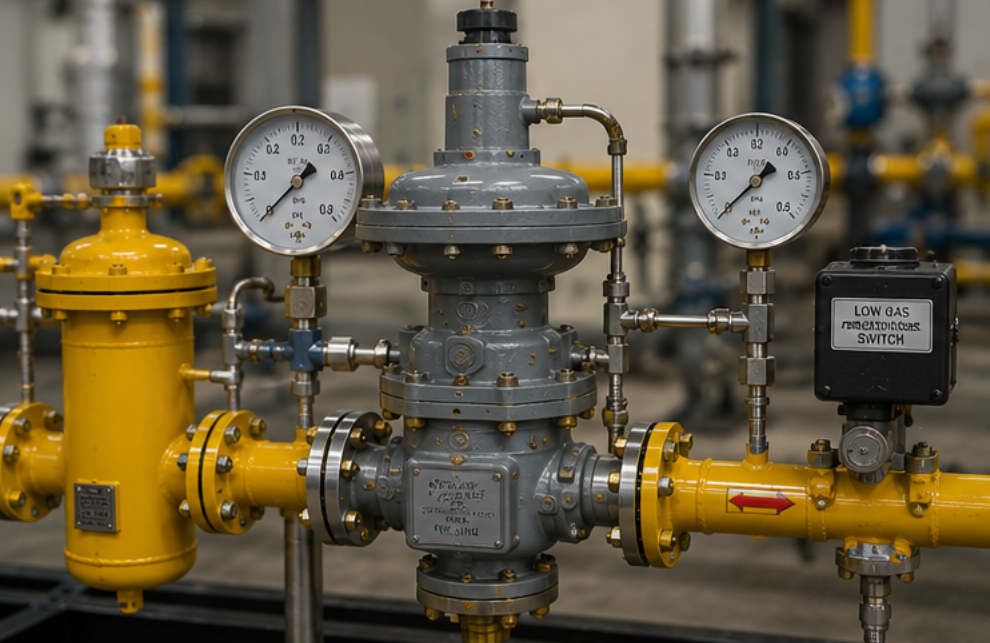

5. How A Gas Pressure Regulating Skid Helps Stabilize Burner Supply
A gas pressure regulating skid treats burner gas supply as a complete system. It can integrate filter separator, pressure regulator, safety shut-off valve, relief valve, pressure gauges, pressure transmitters, bypass line, vent line, control cabinet, piping, supports, and skid-mounted frame.
For industrial burners, the skid should be selected according to inlet pressure range, required burner inlet pressure, gas flow range, startup demand, low-fire demand, high-fire demand, safety protection, pressure monitoring, and site layout.
Practical Tip
If burner gas pressure is unstable, do not only adjust the burner setting. Check dynamic pressure, filter blockage, regulator sizing, pipe pressure loss, pressure switch location, and total gas demand together.
Engineering Review Checklist
Confirm burner gas consumption at ignition, low fire, and high fire.
Check minimum, normal, and maximum gas flow.
Review inlet pressure stability during peak demand.
Inspect filter separator and differential pressure.
Calculate pressure loss from skid outlet to burner inlet.
Review regulator sizing and response speed.
Check safety shut-off valve, relief protection, and alarm settings.
Consider a custom gas pressure regulating skid for stable burner operation.
Conclusion
Unstable gas pressure before industrial burners can be caused by blocked filters, wrong regulator sizing, unstable inlet pressure, pipe pressure loss, sudden load changes, incorrect pressure switch position, or poor gas train layout.
A properly designed gas pressure regulating skid can help stabilize burner inlet pressure, protect burner operation, reduce shutdown risk, improve monitoring, and support safer long-term factory heating performance.
FAQ
What causes unstable gas pressure before industrial burners?
Common causes include blocked filters, wrong regulator sizing, unstable inlet pressure, pipe pressure loss, sudden load changes, poor gas train layout, and incorrect pressure switch position.
Why does pressure look normal when the burner is stopped?
Static pressure may look normal without gas flow. When the burner starts or reaches high fire, gas demand increases and dynamic pressure may drop.
Can a blocked filter cause burner shutdown?
Yes. A blocked filter restricts gas flow before the burner, causing pressure drop during operation and triggering burner protection.
When is a gas pressure regulating skid needed?
A skid-mounted gas regulating system is useful when the factory needs stable burner pressure, complete safety protection, factory testing, better monitoring, and easier installation.
