Why Gas Pressure Drops When Multiple Boilers Start At The Same Time
2026-06-20 21:06Need To Solve Gas Pressure Drop In A Multi-Boiler Room?
Send us your gas medium, inlet pressure range, required outlet pressure, boiler capacity, number of boilers, burner gas consumption, startup sequence, flow range, and site layout. Our engineering team can help review whether a gas pressure regulating skid solution is suitable for your project.

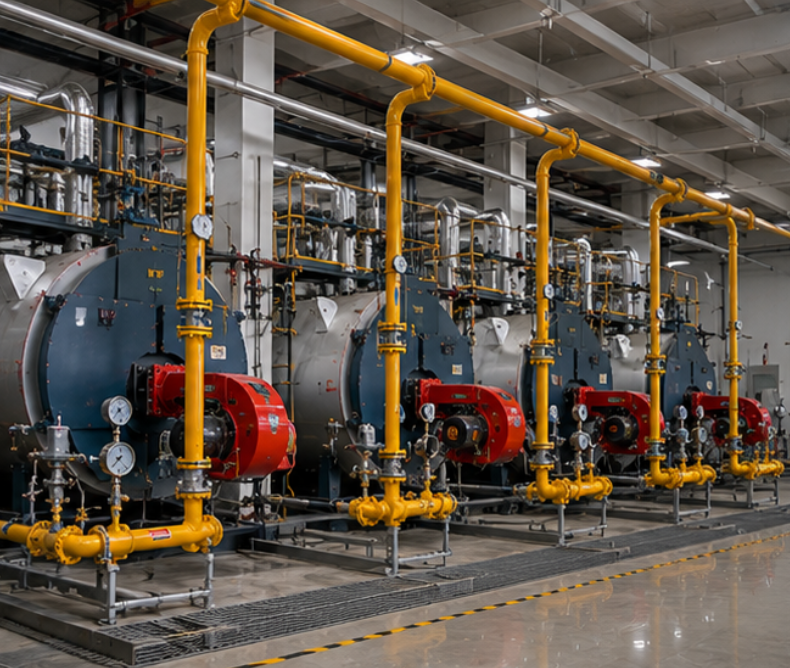

1. Why Pressure Drops When Several Boilers Start Together
Each boiler burner needs a certain gas flow and inlet pressure during ignition, low fire, high fire, and load increase. When only one boiler is running, the gas regulating system may still maintain pressure. But when several burners start at the same time, total gas demand rises quickly.
If the gas regulator, filter, pipe network, or upstream gas supply cannot provide enough flow under peak demand, the downstream pressure will drop. This pressure drop may only happen for a short time, but it can still trigger burner protection, low gas pressure alarms, ignition failure, or shutdown.
For industrial boiler rooms, hotels, hospitals, food factories, chemical plants, textile mills, and industrial parks, this problem can directly affect steam supply stability and production continuity.
Common Symptoms
Gas pressure is stable when one boiler runs but drops when multiple boilers start.
Burners alarm during ignition or high-fire operation.
Boiler flame becomes unstable when plant steam demand increases.
Outlet pressure gauge drops quickly and then recovers after shutdown.
Low gas pressure alarms occur during morning startup or production peak.
Operators need to start boilers one by one to avoid pressure drop.
2. Main Causes Of Gas Pressure Drop In Multi-Boiler Systems
A pressure drop during multi-boiler startup is usually a peak-demand problem. The system may look correct during normal operation, but it may not have enough capacity when several boilers require gas at the same time.
Troubleshooting Table
| Possible Cause | Typical Result | What To Check |
|---|---|---|
| Regulator Capacity Too Small | Outlet pressure drops when total boiler gas demand increases. | Total gas flow of all boilers at peak load. |
| Blocked Filter Or Separator | Gas flow is restricted before the regulator. | Filter element, dirt, rust, liquid, and differential pressure. |
| Insufficient Inlet Pressure | The regulator cannot maintain outlet pressure during peak demand. | Minimum upstream pressure when all boilers start. |
| Pipe Size Too Small | Pressure loss increases sharply at high flow. | Pipe diameter, length, elbows, and pressure drop. |
| Boilers Start Too Close Together | Instant gas demand rises faster than the system can respond. | Boiler startup sequence and control logic. |
| Poor Skid Layout | Pressure control becomes unstable under changing load. | Regulator location, sensing line, bypass, and downstream piping. |
3. Calculate Total Peak Gas Demand, Not Only Single Boiler Demand
A common design mistake is selecting the gas regulating system based only on one boiler or normal daily load. In real operation, several boilers may start together during morning startup, cold weather operation, production peak, or process steam demand increase.
The gas pressure regulating skid should be selected according to minimum, normal, and maximum gas flow. For multi-boiler rooms, maximum flow should consider the combined gas consumption of all boilers that may operate at the same time.
Gas Demand Data Buyers Should Prepare
Number of boilers connected to the gas supply system.
Gas consumption of each boiler burner.
Minimum, normal, and maximum total gas flow.
Ignition flow, low-fire flow, and high-fire flow if available.
Whether all boilers may start or run together.
Required burner inlet pressure and allowable pressure fluctuation.
4. Check Pressure At The Right Locations During Startup
If pressure only drops during multi-boiler startup, one pressure gauge is not enough. The system should be checked at different points, including upstream gas supply, skid inlet, skid outlet, branch lines, and burner inlet.
If pressure is already low before the skid, the upstream supply may be insufficient. If pressure is normal before the skid but low after it, the regulator, filter, or skid configuration should be checked. If pressure is normal after the skid but low at the burner, the downstream pipe network may have excessive pressure loss.
Pressure Recording Checklist
Upstream pressure before the gas regulating skid.
Inlet pressure of the pressure regulator.
Outlet pressure after pressure regulation.
Pressure at each boiler burner inlet.
Pressure during ignition, low fire, high fire, and simultaneous startup.
Pressure alarm time and burner shutdown records.

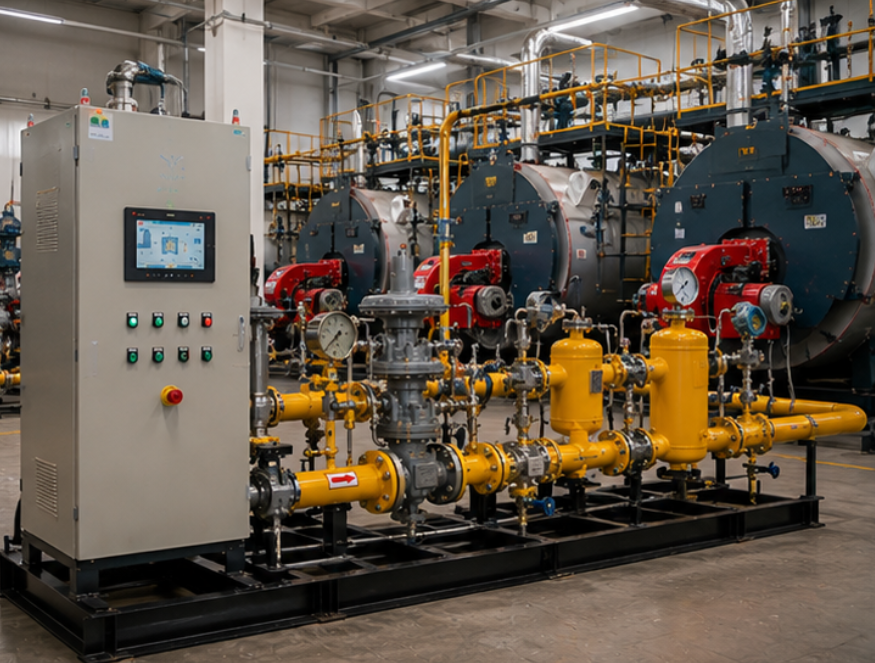

5. How A Gas Pressure Regulating Skid Helps Stabilize Multi-Boiler Supply
A gas pressure regulating skid is designed to provide stable gas pressure before boilers and industrial burners. It can integrate filter separator, pressure regulator, safety shut-off valve, relief valve, pressure gauges, pressure transmitters, bypass line, vent line, control cabinet, piping, supports, and skid-mounted frame.
For multi-boiler rooms, the skid should be designed according to total peak gas demand, inlet pressure variation, downstream burner pressure requirement, startup sequence, safety protection, and maintenance access. In some projects, two-stage regulation or separate regulating branches may be needed to improve stability.
Practical Tip
If gas pressure drops only when several boilers start together, do not only replace the pressure regulator. First check total peak gas demand, filter blockage, upstream pressure, downstream pipe loss, and boiler startup sequence.
Engineering Review Checklist
Confirm total gas consumption when all boilers run together.
Check whether inlet pressure remains stable during peak demand.
Review regulator capacity under minimum, normal, and maximum flow.
Inspect filter separator and differential pressure.
Calculate downstream pipe pressure loss to each boiler.
Review safety shut-off valve, relief protection, and alarm settings.
Check whether boiler startup sequence should be staggered.
Consider a custom gas pressure regulating skid for stable multi-boiler operation.
Conclusion
Gas pressure may drop when multiple boilers start at the same time because total gas demand increases suddenly. Common causes include undersized regulators, blocked filters, insufficient inlet pressure, excessive pipe pressure loss, poor skid layout, and boilers starting too close together.
A properly designed gas pressure regulating skid can help stabilize outlet pressure, protect boiler burners, reduce shutdown risk, improve monitoring, and support safer long-term boiler room operation.
FAQ
Why does gas pressure drop when several boilers start together?
Because total gas demand rises suddenly. If the regulator, filter, pipe network, or upstream supply cannot handle peak flow, outlet pressure will drop.
Can a blocked filter cause pressure drop during boiler startup?
Yes. A blocked filter restricts gas flow. The problem may become obvious only when several boilers require high flow at the same time.
Should boilers be started one by one?
Staggered startup can reduce instant peak demand, but the gas regulating system should still be checked to confirm whether it can meet total operating demand.
What data is needed for a gas regulating skid quote?
Buyers should provide gas medium, inlet pressure, outlet pressure, number of boilers, burner gas consumption, flow range, startup sequence, site layout, and safety requirements.
