1. Why Industrial Projects Need Steam PRDS Systems
Many industrial steam systems generate or distribute steam at a pressure and temperature higher than the downstream process requires. Before steam enters process lines, heat exchangers, utility networks, drying systems, sterilizers, turbines, or heating equipment, both pressure and temperature may need to be controlled accurately.
A Steam PRDS system combines pressure reduction and desuperheating in one engineered package. The pressure reducing section lowers steam pressure, while the desuperheating section injects controlled spray water to reduce steam temperature. This helps deliver steam at the required pressure and temperature for downstream users.
For boiler rooms, power plants, chemical plants, food processing plants, textile plants, paper mills, pharmaceutical plants, and industrial utility stations, a properly designed PRDS system can improve steam stability, protect equipment, reduce site installation risk, and support safer long-term operation.
Typical PRDS System Applications
Steam pressure and temperature control for boiler rooms
Steam supply conditioning for process production lines
Pressure reducing and desuperheating for power plant auxiliary steam
Steam temperature control before heat exchangers and heating networks
Utility steam control for chemical, food, textile, and pharmaceutical plants
Skid-mounted steam control packages for overseas industrial projects
2. Key Parameters Needed Before PRDS System Design
A Steam PRDS system should not be selected only by pipe size. The supplier needs complete working conditions to size the pressure reducing valve, desuperheater, spray water control valve, safety valve, instruments, piping, control cabinet, and skid layout correctly.
Steam demand may change during startup, low load, normal operation, and peak load. If the pressure reducing valve is oversized, pressure may fluctuate at low flow. If the desuperheater or spray water control valve is not selected correctly, outlet steam temperature may become unstable or wet steam may occur.
Steam PRDS System Quotation Checklist
| Required Data | Why It Matters |
|---|---|
| Inlet Steam Pressure | Determines valve pressure class, pressure drop, and system design basis. |
| Inlet Steam Temperature | Determines desuperheating demand, material selection, and temperature control range. |
| Outlet Pressure And Temperature | Defines the required steam condition for downstream equipment. |
| Minimum / Normal / Maximum Flow | Ensures stable control across real operating loads. |
| Spray Water Conditions | Affects atomization, evaporation, outlet temperature stability, and nozzle reliability. |
| Control Requirements | Defines control cabinet, valve actuator, signal output, alarm logic, and plant system interface. |
3. Main Components Of A Steam PRDS System

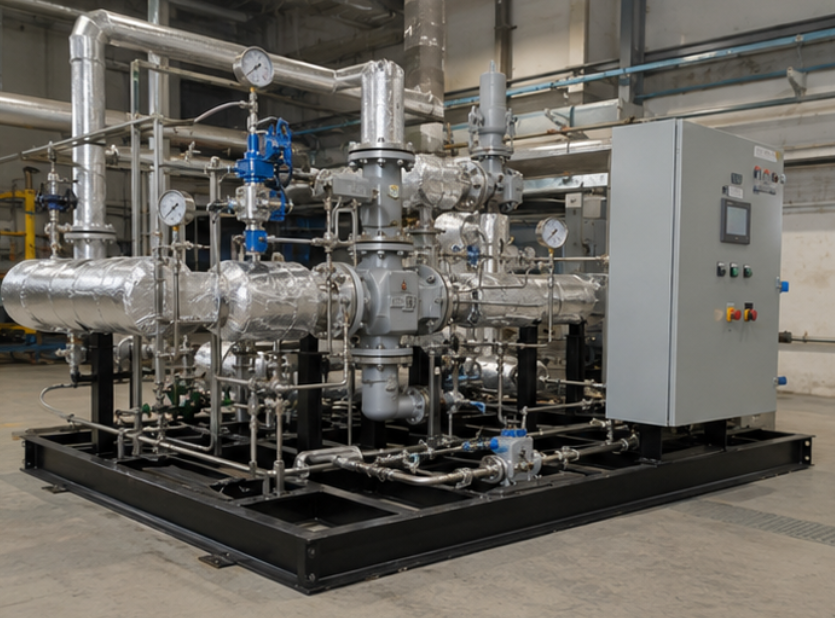

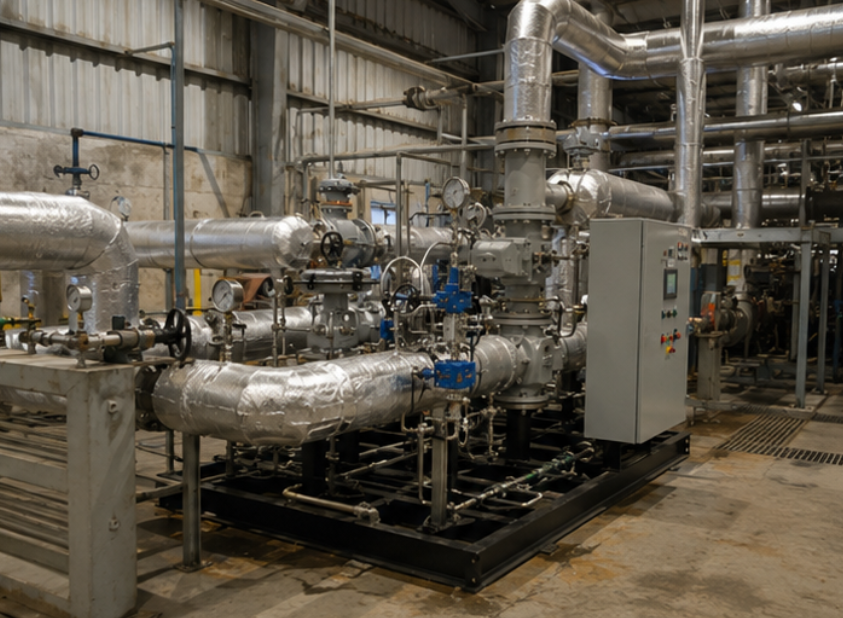

A complete Steam PRDS system is usually supplied as an integrated skid-mounted package. It may include inlet isolation valve, strainer, pressure reducing control valve, actuator, positioner, desuperheater, spray water control valve, spray water inlet line, safety valve, pressure gauges, pressure transmitters, temperature sensors, drain valves, vent valves, control cabinet, piping, pipe supports, and skid-mounted frame.

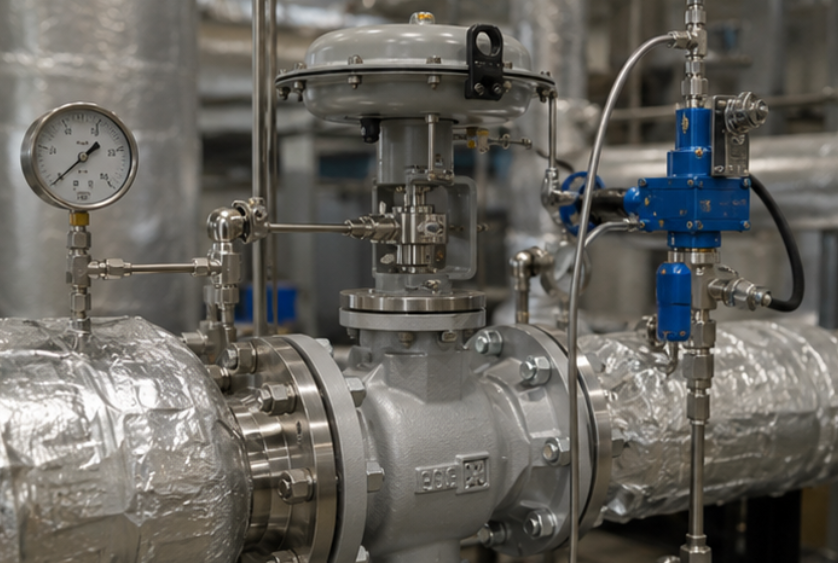

The pressure reducing control valve reduces high-pressure steam to the required outlet pressure. The desuperheater injects spray water into the steam flow. The temperature sensor provides outlet temperature feedback, and the control system adjusts the spray water control valve to maintain stable outlet temperature.
| Component | Function |
|---|---|
| Pressure Reducing Control Valve | Reduces high-pressure steam to the required outlet pressure. |
| Desuperheater | Injects spray water into superheated steam to reduce temperature. |
| Spray Water Control Valve | Controls spray water flow according to temperature feedback. |
| Safety Valve | Protects downstream steam lines and equipment from overpressure. |
| Temperature Sensor | Provides outlet steam temperature feedback for automatic control. |
| Control Cabinet | Supports pressure and temperature control, alarm output, and plant system integration. |
4. Pressure Control, Temperature Control, And Safety Design
Pressure control depends on correct valve sizing, pressure drop calculation, valve trim selection, actuator performance, positioner configuration, and control signal compatibility. If the valve is not selected properly, the system may experience pressure fluctuation, noise, vibration, or insufficient steam supply during peak load.
Temperature control depends on spray water pressure, spray water flow, nozzle atomization, downstream straight pipe length, temperature sensor location, and control logic. Poor atomization or incorrect sensor position may cause unstable outlet temperature, wet steam, water carryover, pipe erosion, or water hammer.
Safety design should include suitable safety valve sizing, pressure and temperature monitoring, drain points, vent points, control alarms, emergency logic, and maintenance access. For automated plants, the PRDS system may need to connect with PLC, DCS, SCADA, or local control systems.
Control And Safety Checklist
Confirm pressure reducing valve sizing and calculated flow capacity.
Review valve trim, actuator, positioner, and control signal compatibility.
Confirm spray water pressure, temperature, quality, and available flow.
Check desuperheater nozzle type and atomization performance.
Confirm downstream straight pipe length and temperature sensor location.
Review safety valve sizing, set pressure, and discharge arrangement.
Check drainage, venting, pipe support, and maintenance access.
Define pressure test, leak test, functional inspection, FAT, and final documentation scope.
5. Why Choose A Skid-Mounted Steam PRDS System Supplier

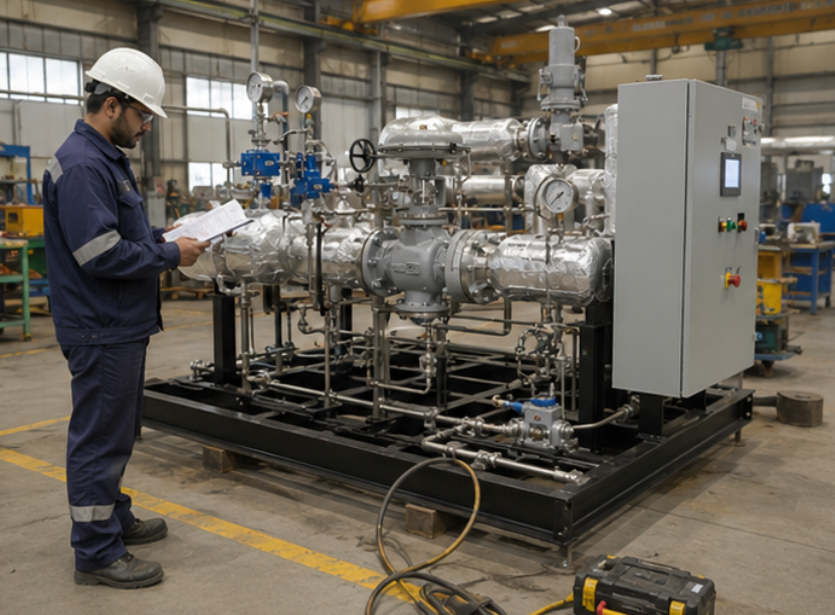

A skid-mounted PRDS system allows pressure reducing, desuperheating, spray water control, instruments, control cabinet, safety devices, drainage, and piping to be integrated into one factory-assembled package. Compared with site assembly, this can reduce installation work, missing components, layout errors, and commissioning uncertainty.
A qualified supplier should support engineering review, valve sizing, desuperheater selection, P&ID preparation, general arrangement drawing, component selection, factory testing, inspection documents, export packing, and after-sales technical communication.
Practical Tip
When comparing Steam PRDS system suppliers, do not only compare valve price. Check pressure control stability, desuperheating performance, spray water conditions, safety devices, testing scope, documentation, and engineering support.
Final Buyer Checklist
Provide inlet pressure, inlet temperature, outlet pressure, and outlet temperature.
Provide minimum, normal, and maximum steam flow.
Confirm spray water pressure, temperature, quality, and available flow.
Review pressure reducing valve and spray water control valve selection.
Check desuperheater, safety valve, instruments, and control cabinet scope.
Confirm skid footprint, inlet/outlet direction, and maintenance access.
Request P&ID, GA drawing, component list, data sheets, and test reports.
Confirm FAT, packing method, lifting points, delivery schedule, and after-sales support.
Conclusion
A Steam PRDS system for pressure and temperature control should be designed according to real steam conditions, outlet requirements, spray water conditions, downstream application, control accuracy, safety protection, piping layout, testing standards, and documentation needs.
For industrial buyers, choosing a qualified Steam PRDS system supplier can help improve pressure stability, control outlet temperature, protect downstream equipment, reduce site installation risk, and support reliable long-term steam system operation.
FAQ
What is a Steam PRDS system?
A Steam PRDS system is a pressure reducing and desuperheating system used to reduce steam pressure and control outlet steam temperature before steam enters downstream equipment.
What information is needed before quotation?
Buyers should provide inlet steam pressure, inlet temperature, outlet pressure, outlet temperature, steam flow range, spray water conditions, downstream application, and control requirements.
Why is spray water condition important?
Spray water pressure, temperature, quality, and flow capacity affect atomization, evaporation, outlet temperature stability, and desuperheater reliability.
Can a PRDS system be supplied as a skid-mounted package?
Yes. A skid-mounted PRDS package can include pressure reducing valve, desuperheater, spray water control valve, instruments, safety valve, control cabinet, piping, testing, and documentation.
