1. Why Steam Pressure Stability Matters In Boiler Rooms

Boiler room steam systems are usually designed to supply stable steam to different downstream users. When pressure fluctuates, process temperature becomes difficult to control. Heat exchangers may lose efficiency, dryers may become unstable, sterilization performance may be affected, and production lines may experience quality variation.

Steam pressure fluctuation also affects valves and instruments. A pressure reducing control valve may keep opening and closing frequently, causing valve hunting, noise, vibration, and faster wear. If condensate is present, the risk of water hammer may increase.

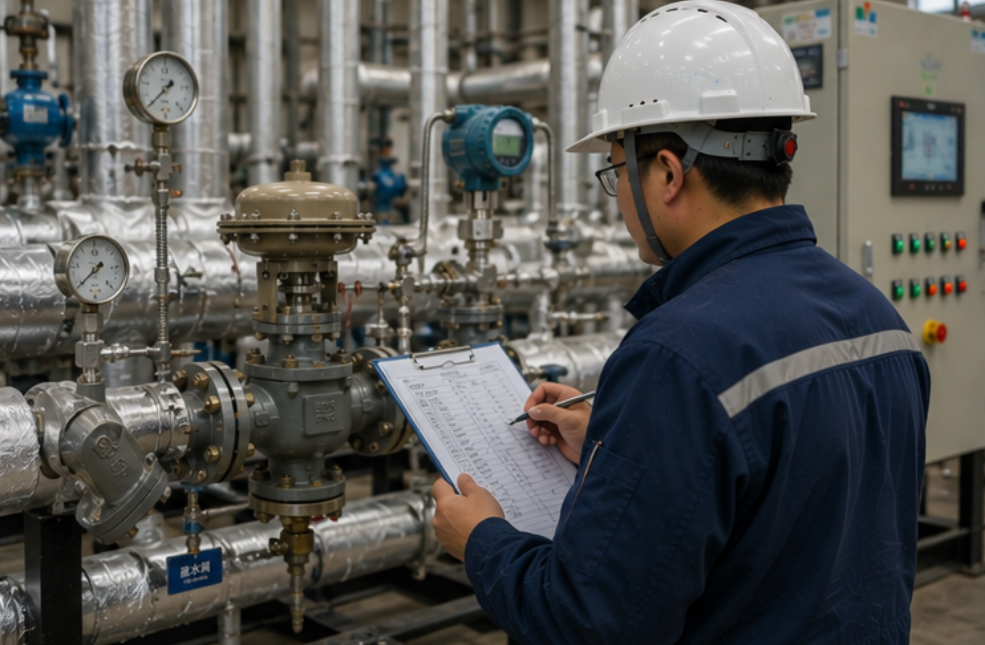

To solve the problem, buyers should review the complete steam system from boiler outlet to downstream equipment, not only the boiler or one pressure gauge.

Common Symptoms Of Steam Pressure Fluctuation

• Steam pressure rises and falls during production.

• Downstream equipment cannot maintain stable temperature.

• Pressure reducing valve opens and closes frequently.

• Steam line noise, vibration, or water hammer appears.

• Pressure becomes unstable when several users run together.

• Steam pressure looks normal at the boiler but unstable after reduction.

2. Main Causes Of Steam Pressure Fluctuation

Steam pressure fluctuation may come from load changes, boiler control, pressure reducing valve selection, piping design, condensate drainage, or downstream equipment operation. Before replacing valves, buyers should identify whether the pressure fluctuation happens before pressure reduction, after pressure reduction, or near the final user.

Troubleshooting Table

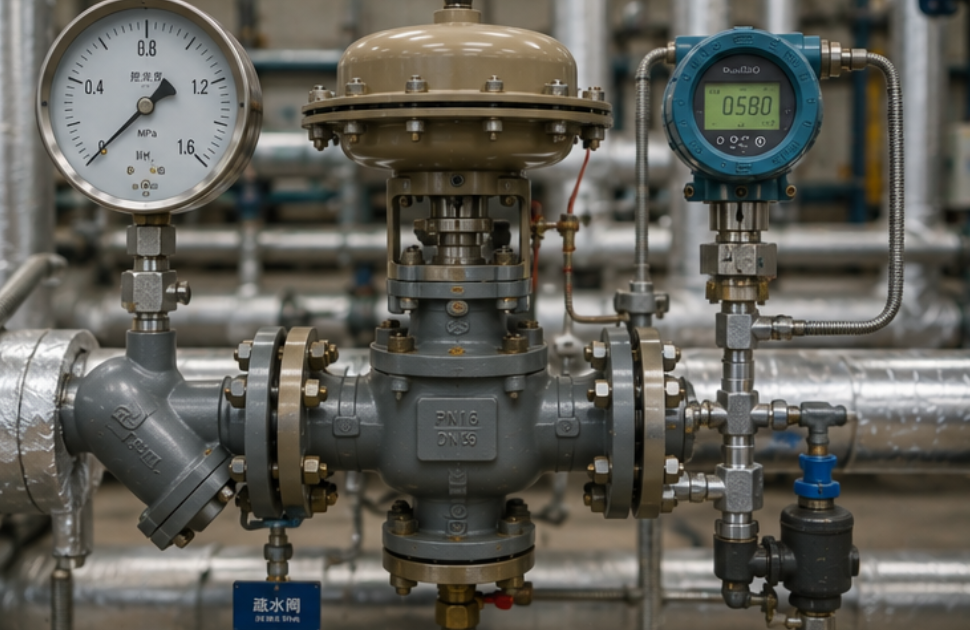

3. Why Pressure Reducing Valve Sizing Is Critical

One of the most common reasons for steam pressure fluctuation is incorrect pressure reducing valve sizing. If the valve is oversized, it may not control smoothly at low flow. The valve may open and close repeatedly, causing outlet pressure hunting. If the valve is undersized, it may not supply enough steam during peak demand.

For this reason, a steam pressure reducing system should be selected according to minimum, normal, and maximum steam flow. It should also consider inlet pressure, outlet pressure, steam temperature, downstream users, and control accuracy requirements.

Valve And Control Data To Review

• Inlet steam pressure and outlet pressure target.

• Minimum, normal, and maximum steam flow.

• Steam temperature and pipe pressure rating.

• Required control accuracy and response speed.

• Valve type, actuator, positioner, and control signal.

• Pressure transmitter position and control feedback location.

4. Condensate And Drainage Problems Can Make Pressure Unstable

Condensate is another major cause of steam pressure fluctuation. If condensate is not removed properly, it can reduce effective pipe area, disturb steam flow, cause water hammer, and damage control valves. The result may be unstable pressure and poor downstream heating performance.

Drain valves, steam traps, pipe slope, low point drainage, and condensate return should be checked carefully. For steam pressure reducing skids, drain points should be arranged before and after pressure reduction when required.

Drainage And Condensate Checklist

• Check whether drain points are installed in correct locations.

• Inspect steam traps for blockage, leakage, or incorrect sizing.

• Check whether pipe slope allows condensate to move properly.

• Look for water hammer, vibration, or knocking noise.

• Inspect insulation damage that may increase condensate formation.

• Check condensate return pressure and return line condition.

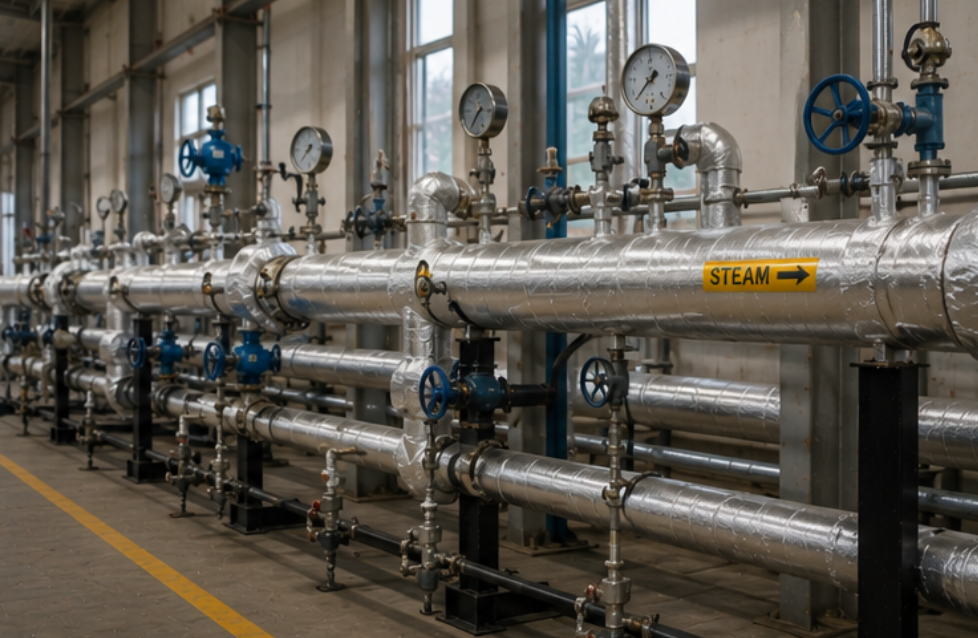

5. How A Steam Pressure Reducing Skid Helps Stabilize Pressure

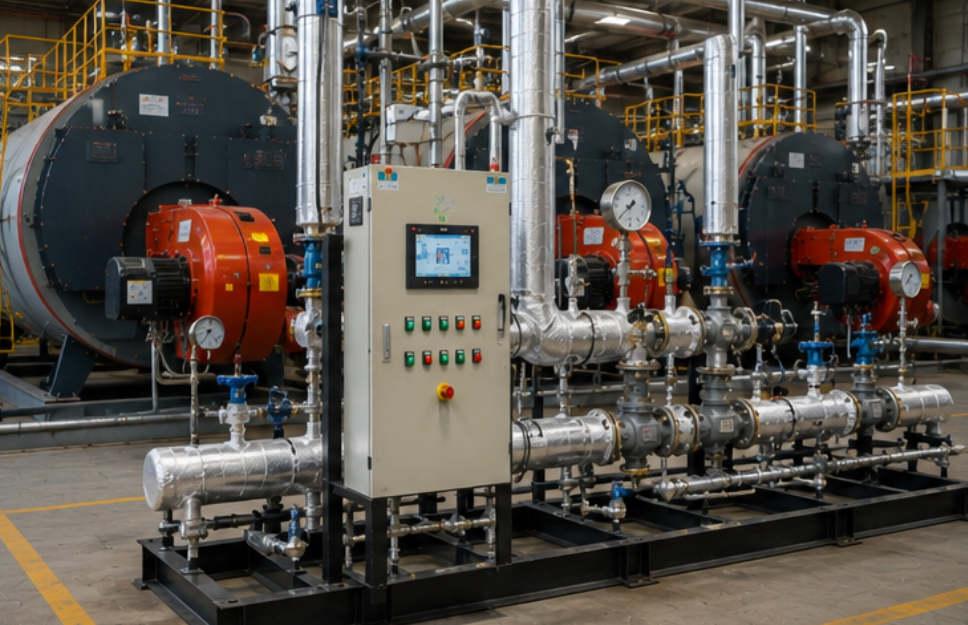

A steam pressure reducing skid can integrate strainer, pressure reducing control valve, actuator, positioner, safety valve, pressure gauges, pressure transmitters, drain valves, bypass line, control cabinet, piping, pipe supports, and skid-mounted frame into one engineered package.

Compared with separate site assembly, a skid-mounted package can help improve layout quality, reduce missing components, support factory testing, and provide clearer pressure monitoring points. If both pressure and temperature control are needed, a PRDS system with desuperheating can also be considered.

Data To Send For Engineering Review

• Boiler outlet pressure and steam header pressure.

• Required downstream outlet pressure.

• Minimum, normal, and maximum steam flow.

• Steam temperature and pipe size.

• Downstream users and production load sequence.

• Existing pressure reducing valve or skid data.

• Strainer, drain point, steam trap, and condensate return information.

• Pressure fluctuation records, photos, or system drawings.

Conclusion

Steam pressure fluctuation in boiler room systems may be caused by sudden load changes, incorrect PRV sizing, blocked strainers, condensate accumulation, poor drainage, unstable boiler operation, undersized piping, or poor skid layout.

A properly designed steam pressure reducing skid can help stabilize outlet pressure, protect downstream production equipment, reduce control valve hunting, improve monitoring, and support safer long-term steam system operation.

FAQ

What causes steam pressure fluctuation in boiler rooms?

Common causes include sudden load changes, wrong pressure reducing valve sizing, blocked strainers, condensate accumulation, poor drainage, unstable boiler firing, and pipe pressure loss.

Can an oversized pressure reducing valve cause fluctuation?

Yes. If the valve is oversized, it may not control smoothly at low flow and may cause outlet pressure hunting.

Can condensate affect steam pressure?

Yes. Condensate can restrict steam flow, cause water hammer, disturb pressure control, and damage valves or instruments.

When is a steam pressure reducing skid needed?

A skid-mounted system is useful when the plant needs stable steam pressure, integrated valves and instruments, factory testing, better safety protection, and easier installation.
