1. Why Temperature Fluctuation Happens After A Desuperheater

A desuperheater reduces steam temperature by injecting spray water into superheated steam. The injected water should atomize into fine droplets, evaporate quickly, and mix evenly with the steam before the temperature sensor reads the outlet condition.

If the spray water does not atomize well, if steam flow changes too quickly, or if the sensor reads temperature before full mixing, the control system may keep overcorrecting. The result is outlet temperature fluctuation, unstable process heating, wet steam risk, and poor downstream temperature control.

This problem should be reviewed as a complete system issue. The desuperheater, spray water line, nozzle, temperature transmitter, control valve, straight pipe length, drainage, and control cabinet must work together.

Common Symptoms

• Outlet steam temperature rises and falls repeatedly after the desuperheater.

• Temperature looks stable at one flow condition but fluctuates during load changes.

• Spray water valve keeps opening and closing frequently.

• Outlet temperature overshoots below or above the setpoint.

• Wet steam, water carryover, or drain discharge appears downstream.

• Downstream equipment temperature becomes difficult to control.

2. Main Causes Of Temperature Fluctuation After A Desuperheater

Temperature fluctuation usually happens when spray water injection, steam flow, measurement location, and control response do not match each other. Before replacing the desuperheater, buyers should check the full temperature control loop.

Troubleshooting Table

3. Spray Water Stability Should Be Checked First

Spray water is the direct cooling source in a desuperheating system. If spray water pressure or flow is unstable, outlet steam temperature will also be unstable. This can happen when the water pump fluctuates, the water source is shared with other users, the water filter is blocked, or the control valve is incorrectly sized.

Water pressure should be checked both before the spray water control valve and near the nozzle inlet. If pressure is stable at the pump but unstable near the nozzle, the issue may be local pressure loss, filter blockage, valve response, or pipe sizing.

Spray Water Checklist

• Spray water pressure before the control valve.

• Spray water pressure at the nozzle inlet.

• Available spray water flow during low, normal, and peak steam load.

• Water pump pressure stability.

• Water filter condition and pressure loss.

• Spray water control valve sizing and actuator response.

4. Nozzle Atomization Affects Temperature Stability

A desuperheater nozzle must create fine droplets that can evaporate quickly. If the nozzle is blocked, worn, scaled, or selected incorrectly, spray water distribution becomes uneven. Some droplets may evaporate too late, while others may not evaporate fully before reaching downstream equipment.

Poor atomization may cause both high temperature fluctuation and wet steam risk. The system may show alternating high and low temperatures because the cooling effect is delayed and uneven.

Nozzle Inspection Checklist

• Nozzle type and design pressure range.

• Nozzle blockage, scaling, rust, or wear.

• Spray pattern and atomization quality.

• Spray water pressure difference across the nozzle.

• Steam velocity near the injection point.

• Maintenance access for nozzle inspection and cleaning.

5. Temperature Sensor Location Can Create False Fluctuation

Temperature sensor location is often overlooked. If the sensor is installed too close to the desuperheater, it may measure local temperature before steam and water are fully mixed. This can make the control system believe the outlet temperature is unstable, even when the final mixed steam condition is different.

If the sensor is too far away, the control response may become delayed. The spray water valve may react too late, causing outlet temperature to overshoot. The correct sensor location depends on steam flow, pipe size, desuperheater type, spray water rate, and available straight pipe length.

Sensor Location Checklist

• Distance from desuperheater outlet to temperature sensor.

• Available straight pipe length after spray water injection.

• Location of elbows, reducers, valves, and branch lines.

• Whether the sensor measures fully mixed steam temperature.

• Whether the control response is too fast or too delayed.

• Whether multiple sensors are needed for verification.

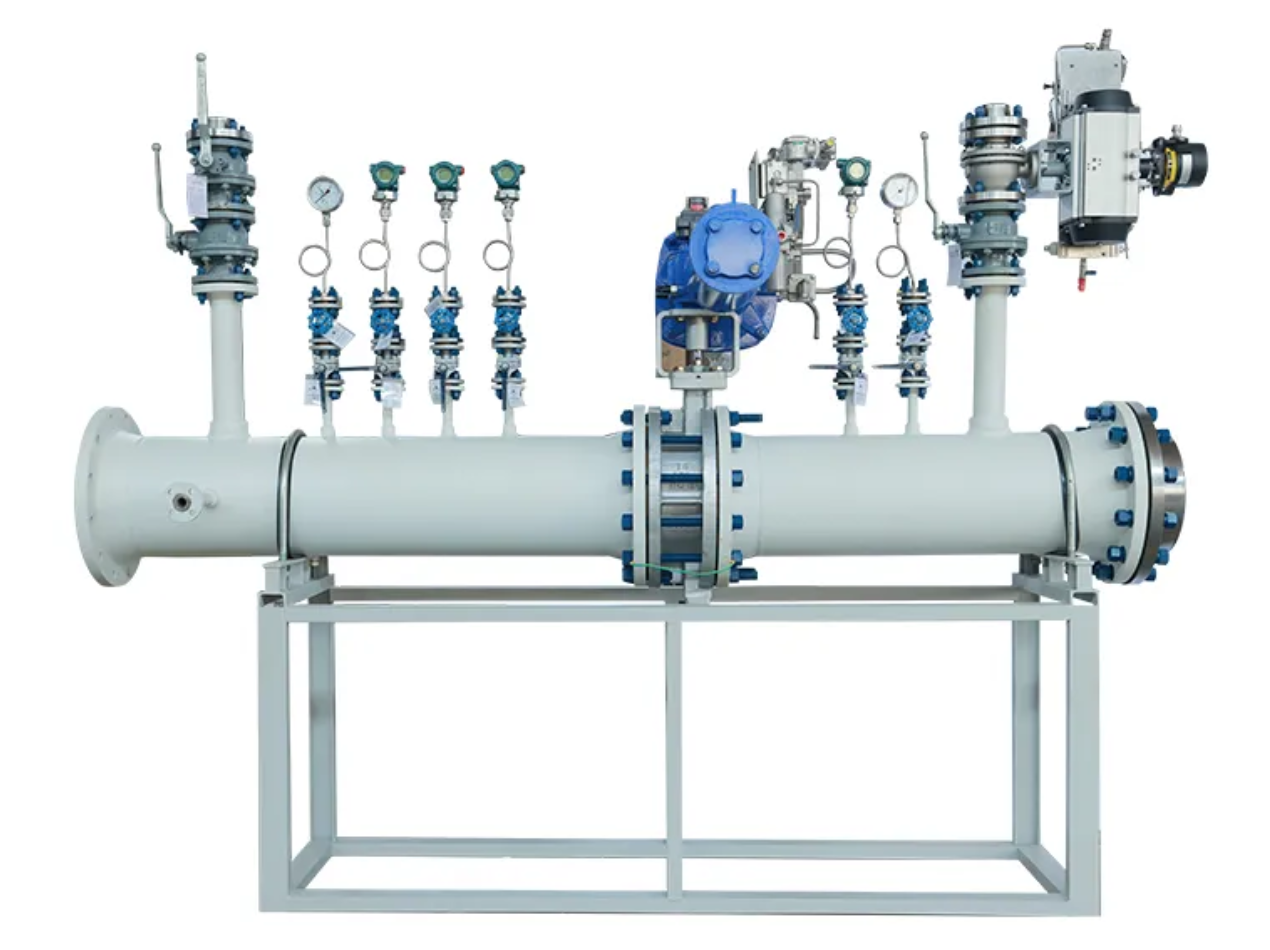

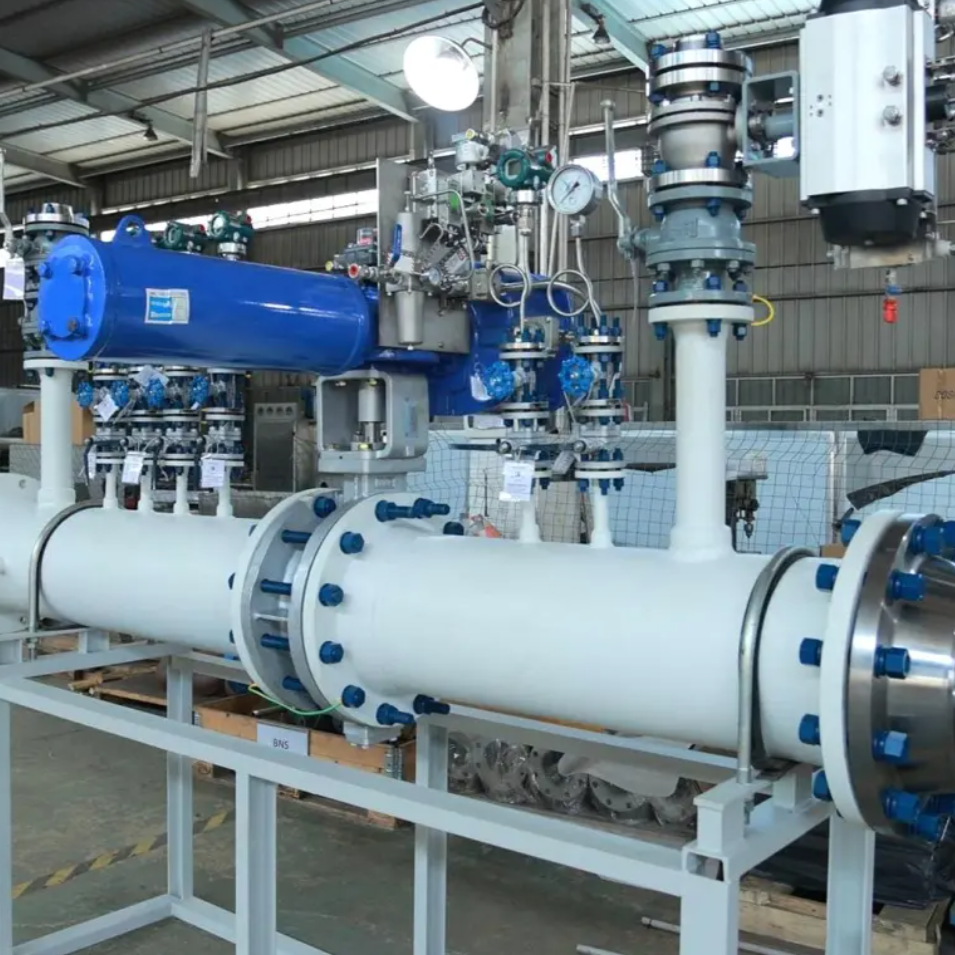

6. How A Proper PRDS Skid Improves Temperature Stability

A properly designed PRDS skid can integrate pressure reducing control valve, desuperheater, spray water control valve, water filter, pressure gauges, pressure transmitters, temperature sensors, safety valve, drain valves, control cabinet, piping, supports, and skid-mounted frame into one engineered package.

Compared with separate site assembly, a skid-mounted PRDS system allows spray water pressure, nozzle atomization, sensor location, straight pipe requirement, drainage, control logic, and factory testing to be reviewed together before delivery.

Engineering Review Checklist

• Confirm inlet steam pressure and inlet temperature.

• Confirm required outlet temperature and acceptable fluctuation range.

• Review minimum, normal, and maximum steam flow.

• Check spray water pressure, flow, temperature, and quality.

• Inspect nozzle type, atomization condition, and blockage risk.

• Check temperature sensor location and downstream straight pipe length.

• Review spray water control valve response and PID settings.

• Consider a custom PRDS skid for stable temperature control.

Conclusion

Steam temperature fluctuation after a desuperheater may be caused by unstable spray water pressure, poor nozzle atomization, blocked nozzle, short mixing distance, wrong temperature sensor location, fast load changes, aggressive control parameters, or incomplete PRDS skid design.

A reliable desuperheating system should match spray water pressure, water flow, nozzle design, steam flow range, sensor location, straight pipe length, drainage, and control logic together to achieve stable outlet steam temperature.

FAQ

What causes steam temperature fluctuation after a desuperheater?

Common causes include unstable spray water pressure, poor nozzle atomization, wrong temperature sensor location, short mixing distance, fast steam load changes, and poor control logic.

Can spray water pressure cause temperature fluctuation?

Yes. If spray water pressure fluctuates, atomization and cooling performance will change, causing outlet steam temperature to rise and fall.

Why does sensor location matter?

If the sensor is too close to the desuperheater, it may read unmixed steam temperature. If it is too far away, control response may become delayed.

How can temperature fluctuation be reduced?

Check spray water stability, nozzle atomization, steam flow range, sensor location, mixing distance, drainage, and control valve response. A properly designed PRDS skid can help stabilize the system.
