Why Factory Gas Supply Pressure Is Normal At Inlet But Low At Equipment
2026-06-22 21:17Need To Solve Low Gas Pressure At Factory Equipment?
Send us your inlet pressure, required equipment pressure, gas medium, flow range, pipe size, pipe length, number of gas users, equipment gas consumption, and site layout. Our engineering team can help review whether a gas pressure regulating skid or pipeline optimization solution is suitable for your project.

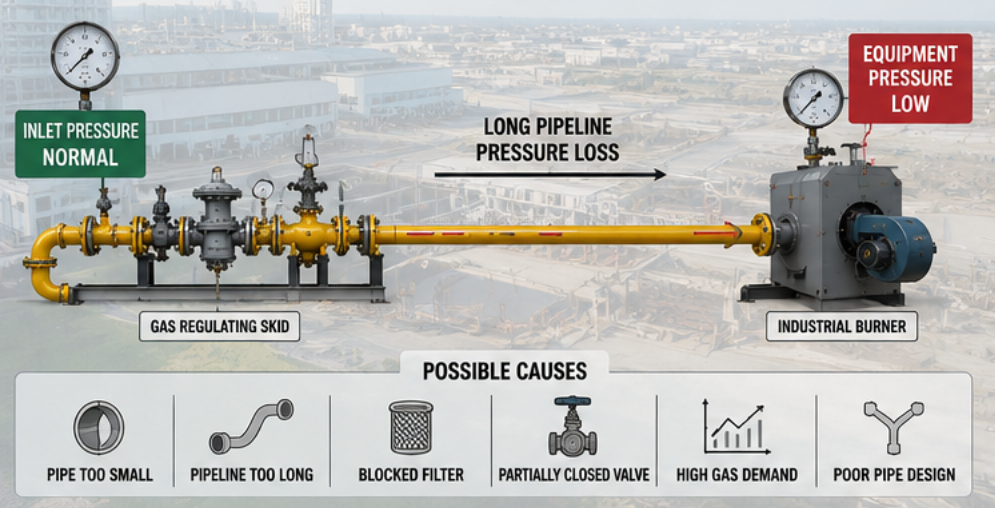

1. Why Normal Inlet Pressure Does Not Mean Enough Pressure At Equipment

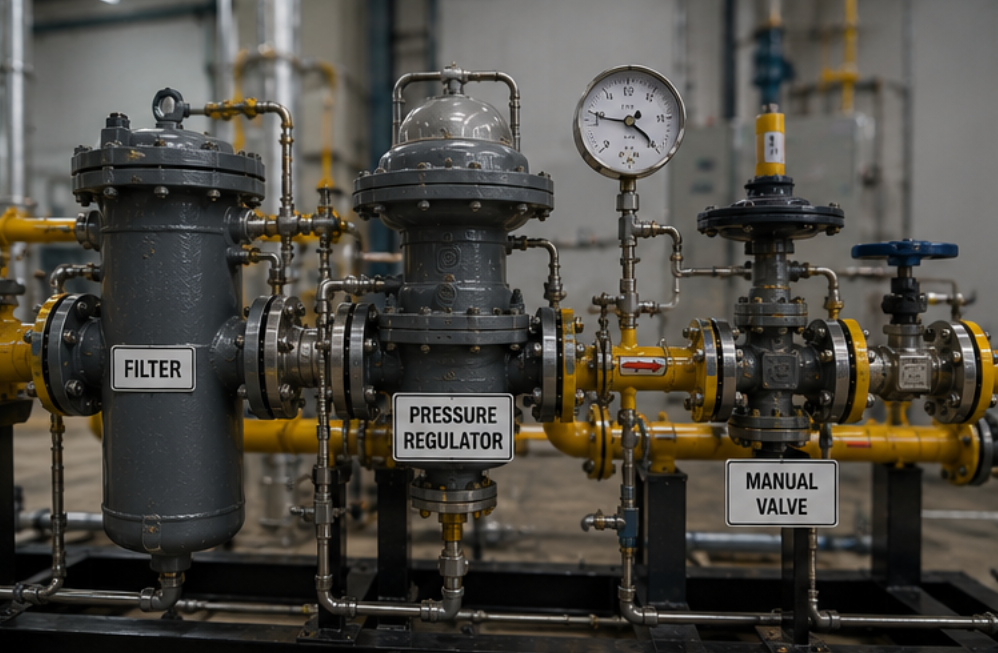

The inlet pressure of a factory gas supply system is usually measured near the gas source, gas station, or pressure regulating skid. However, downstream equipment may be located far away from this point. Gas still needs to pass through filters, regulators, valves, branch pipes, elbows, meters, safety devices, and long pipelines before reaching production equipment.
When gas flow increases, every restriction in the system can create pressure loss. A pressure gauge at the inlet may still show normal pressure, while the pressure at the burner, furnace, oven, or dryer inlet becomes too low for stable operation.
This is why factory gas pressure problems should be checked at multiple points, not only at the gas station inlet.
Common Symptoms
Gas station inlet pressure looks normal, but equipment inlet pressure is low.
Burners or boilers shut down during high-load operation.
Furnaces, ovens, or dryers cannot reach target temperature.
Pressure drops when multiple production lines start together.
Pressure is acceptable at low flow but unstable at peak demand.
Operators repeatedly adjust equipment settings but cannot solve the pressure problem.
2. Main Causes Of Low Pressure At Factory Equipment
If inlet pressure is normal but equipment pressure is low, the cause is often located between the regulating skid outlet and the equipment inlet. Buyers should check the downstream pipe network, filters, valves, flow demand, and pressure measurement points before replacing equipment.
Troubleshooting Table
| Possible Cause | Typical Result | What To Check |
|---|---|---|
| Pipe Size Too Small | Pressure loss increases sharply when gas flow rises. | Pipe diameter, gas velocity, and maximum flow demand. |
| Long Distance To Equipment | Pressure is normal after the skid but low at equipment. | Pipeline length, elbows, reducers, branch lines, and pressure loss. |
| Blocked Filter | Gas flow is restricted before downstream users. | Filter element, dirt, rust, liquid, and differential pressure. |
| Partially Closed Valve | Local pressure drop appears after the valve. | Manual valves, isolation valves, bypass valves, and valve position. |
| Peak Demand Too High | Pressure drops when several gas users run together. | Total gas consumption of boilers, burners, furnaces, ovens, and production lines. |
| Wrong Measurement Point | Operators see normal pressure at one point but equipment receives lower pressure. | Gauge, transmitter, and pressure switch locations. |
3. Measure Pressure At Several Points Under Real Load
To find the real cause, pressure should be measured at different points while equipment is running. Static pressure may look normal when equipment is stopped. Dynamic pressure under real gas flow is more important for troubleshooting.
If pressure is normal at the skid outlet but low at the equipment inlet, the downstream pipe network may be too small, too long, or restricted. If pressure already drops before the skid outlet, the regulator, filter, or upstream gas supply should be checked first.
Pressure Points To Record
Upstream gas pressure before the regulating skid.
Pressure before and after the filter or filter separator.
Regulator inlet and outlet pressure.
Pressure at main branch lines.
Pressure at each equipment inlet.
Pressure during startup, normal production, and peak demand.
4. Check Whether The Downstream Pipe Network Matches Factory Demand
A factory gas supply network may work well when only one production line is running. But after adding new boilers, burners, ovens, dryers, or furnaces, the original pipe network may become undersized. The inlet pressure may still be normal, but pressure near the farthest or highest-demand equipment may drop.
Branch line design is also important. If several high-demand users are connected to one small branch, the pressure at the end of the line may become too low during peak operation. In this case, the problem is not the gas source but the downstream distribution design.
Pipe Network Review Checklist
Check pipe diameter from skid outlet to each equipment inlet.
Calculate pressure loss under maximum gas flow.
Review long-distance pipelines and far-end equipment pressure.
Check elbows, reducers, valves, filters, and meters that create local pressure loss.
Review whether several high-demand users share one small branch line.
Confirm whether factory expansion has increased total gas demand.
5. How A Gas Pressure Regulating Skid Helps Reduce Downstream Pressure Problems
A gas pressure regulating skid can help stabilize outlet pressure before gas enters the factory distribution network. It can integrate filter separator, pressure regulator, safety shut-off valve, relief valve, pressure gauges, pressure transmitters, bypass line, vent line, control cabinet, piping, supports, and skid-mounted frame.
However, the skid should be designed together with the downstream pipe network. If the skid is correctly selected but the downstream pipe is undersized, equipment pressure may still be low. A professional review should include both skid outlet pressure and pressure loss to final gas users.
Practical Tip
If gas pressure is normal at the inlet but low at equipment, do not only adjust the regulator. Check downstream pipe pressure loss, branch line capacity, filter blockage, valve position, peak demand, and pressure measurement points together.
Data To Send For Engineering Review
Gas medium and inlet pressure range.
Required pressure at each equipment inlet.
Minimum, normal, and maximum gas flow.
Gas consumption of boilers, burners, furnaces, ovens, or dryers.
Pipe size, pipe length, branch line layout, and equipment distance.
Existing gas pressure regulating skid data and photos.
Filter condition, valve arrangement, and pressure gauge locations.
Current pressure drop symptoms and alarm records.
Conclusion
Factory gas supply pressure may be normal at the inlet but low at equipment because of downstream pressure loss, small pipe size, long pipeline distance, blocked filters, partially closed valves, peak gas demand, wrong measurement points, or poor branch line design.
A properly designed gas pressure regulating skid, combined with correct downstream pipe sizing and pressure monitoring, can help stabilize equipment inlet pressure, reduce burner shutdown risk, improve factory heating performance, and support safer long-term operation.
FAQ
Why is gas pressure normal at the inlet but low at equipment?
Common causes include downstream pipe pressure loss, small pipe diameter, long distance, blocked filters, partially closed valves, peak gas demand, and incorrect pressure measurement locations.
Should the gas regulator be adjusted first?
Not always. If the downstream pipeline is too small or restricted, adjusting the regulator may not solve the low pressure at equipment. The full gas supply path should be checked.
Can long pipelines cause low gas pressure?
Yes. Long pipelines, elbows, reducers, valves, and branch lines can create pressure loss, especially when gas flow increases during peak production.
What data is needed for a gas regulating skid review?
Buyers should provide gas medium, inlet pressure, required equipment pressure, flow range, gas user list, pipe layout, current pressure readings, and site photos if available.
