Why Industrial Burners Shut Down When Gas Pressure Looks Normal
2026-06-12 21:02Need To Solve Burner Shutdown Problems?
Send us your gas medium, inlet pressure, outlet pressure, burner gas demand, boiler capacity, pressure alarm records, existing gas train photos, and site layout. Our engineering team can help review whether the gas pressure regulating system needs to be upgraded.
1. Why Normal Gauge Pressure Does Not Always Mean Stable Gas Supply

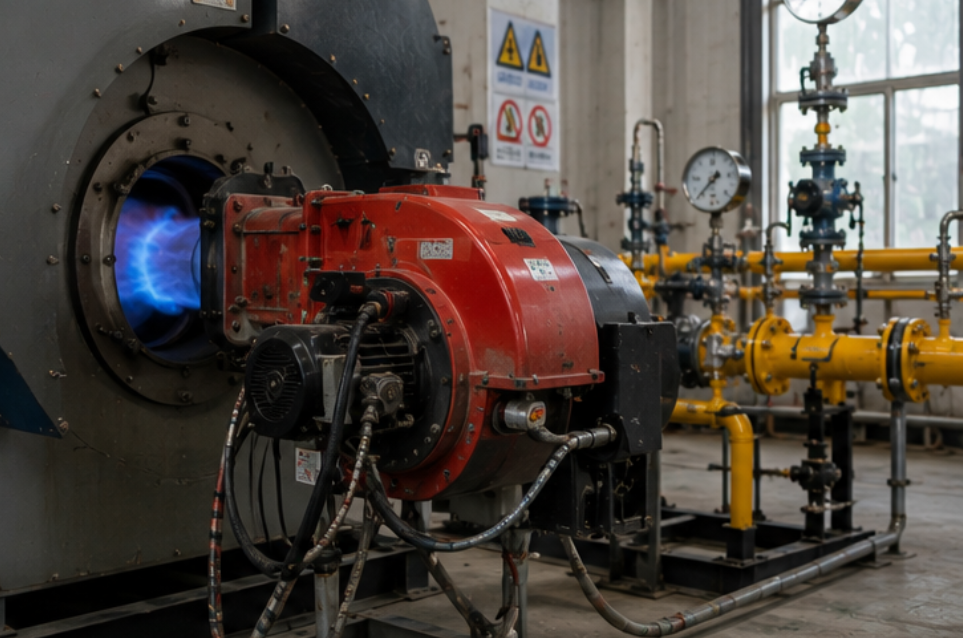

A pressure gauge often shows only the pressure at one position and one moment. When the burner is not running, the gas pressure may look normal. But when the burner starts, modulates, or reaches high fire, the gas flow demand increases quickly. If the gas regulating system cannot respond fast enough, the pressure at the burner inlet may drop suddenly.
The burner control system may then detect low gas pressure, unstable flame, poor ignition condition, or unsafe combustion risk. As a result, it shuts down even though the operator sees normal pressure before or after the shutdown.
This is why burner shutdown problems should be checked under real operating conditions, not only by looking at a static pressure reading.
Common Symptoms
Burner starts normally but shuts down after load increases.
Pressure gauge looks normal when the burner is stopped.
Low gas pressure alarm appears only during operation.
Burner flame becomes unstable before shutdown.
Shutdown happens when multiple burners or boilers run together.
Regulator noise, vibration, or outlet pressure hunting is observed.
2. Main Reasons Burners Shut Down When Pressure Looks Normal
Burner shutdown should be diagnosed as a system problem. The pressure regulator, filter, pipe size, safety shut-off valve, pressure switch, transmitter position, burner demand, and upstream gas supply all need to be reviewed together.
Troubleshooting Table
| Possible Cause | Why It Causes Shutdown | What To Check |
|---|---|---|
| Dynamic Pressure Drop | Pressure drops only when burner gas flow increases. | Pressure during ignition, low fire, and high fire. |
| Blocked Filter | Gas flow is restricted before the regulator or burner. | Filter element, dirt, rust, liquid, and differential pressure. |
| Undersized Regulator | The regulator cannot supply enough gas at peak burner demand. | Minimum, normal, and maximum flow requirement. |
| Oversized Regulator | Outlet pressure may hunt or fluctuate at low flow. | Low-load stability and regulator response. |

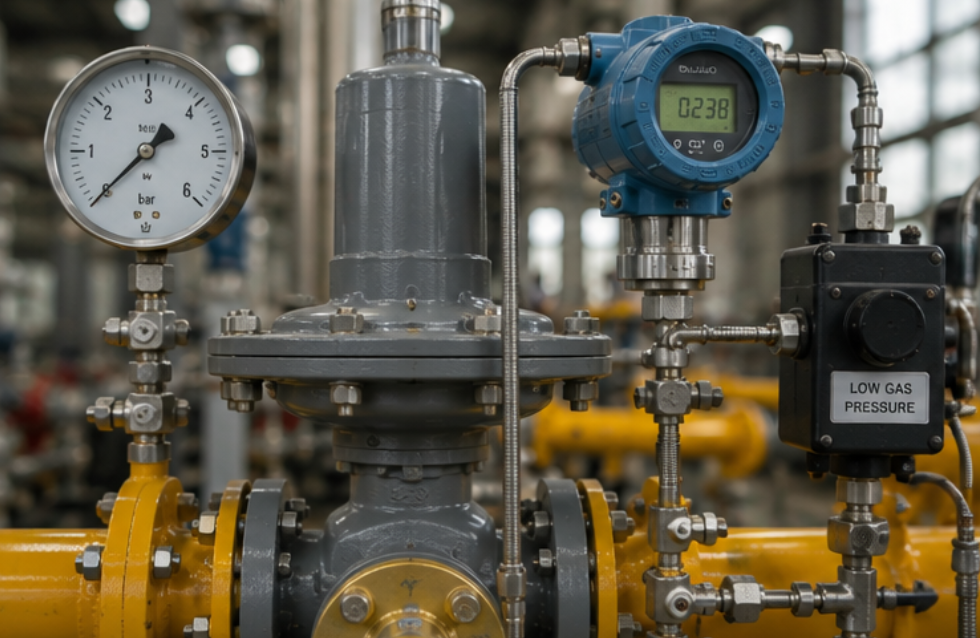

| Wrong Pressure Switch Position | The switch may detect a different pressure than the main gauge. | Gauge, transmitter, and pressure switch locations. |
| Pipe Pressure Loss | Pressure looks normal at the skid outlet but drops near the burner. | Pipe diameter, length, elbows, valves, and burner inlet pressure. |
3. Check Pressure Under Real Burner Load

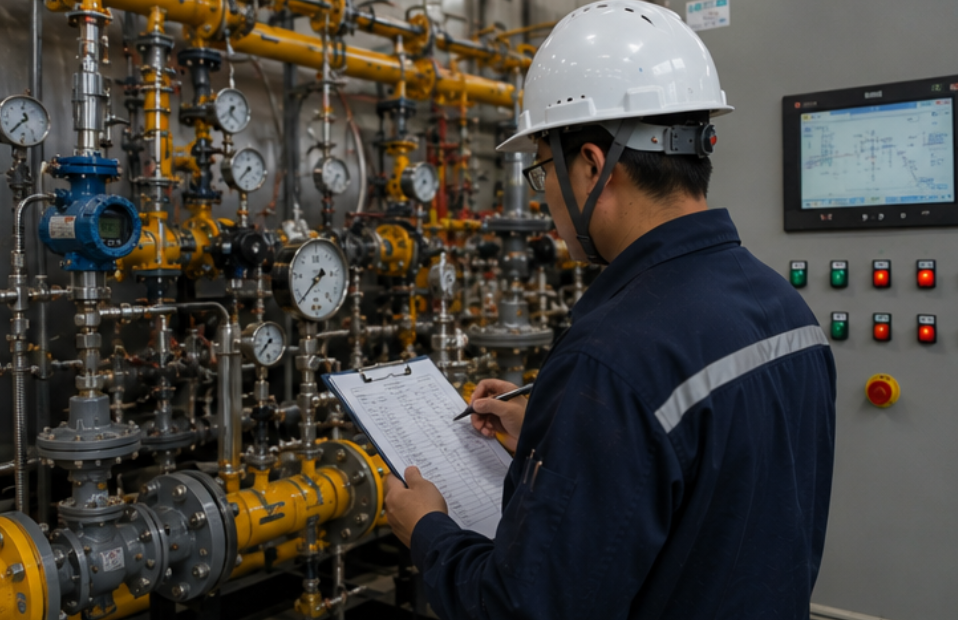

One of the most important troubleshooting steps is to record gas pressure while the burner is actually running. The pressure should be checked during ignition, low fire, high fire, load change, and multi-burner operation. If pressure only drops during high demand, the problem may be regulator capacity, filter blockage, pipe pressure loss, or insufficient upstream supply.
For factory gas supply systems, the problem may become more obvious when several boilers, furnaces, or burners start at the same time. The gas pressure regulating skid should be selected according to the full operating range, not only one normal working point.
Data To Record During Troubleshooting
Inlet pressure before the gas pressure regulating skid.
Outlet pressure after the regulator.
Pressure at the burner inlet if possible.
Pressure during ignition, low fire, and high fire.
Pressure when multiple burners start together.
Pressure alarm time and burner shutdown records.
4. Why A Gas Pressure Regulating Skid Can Help

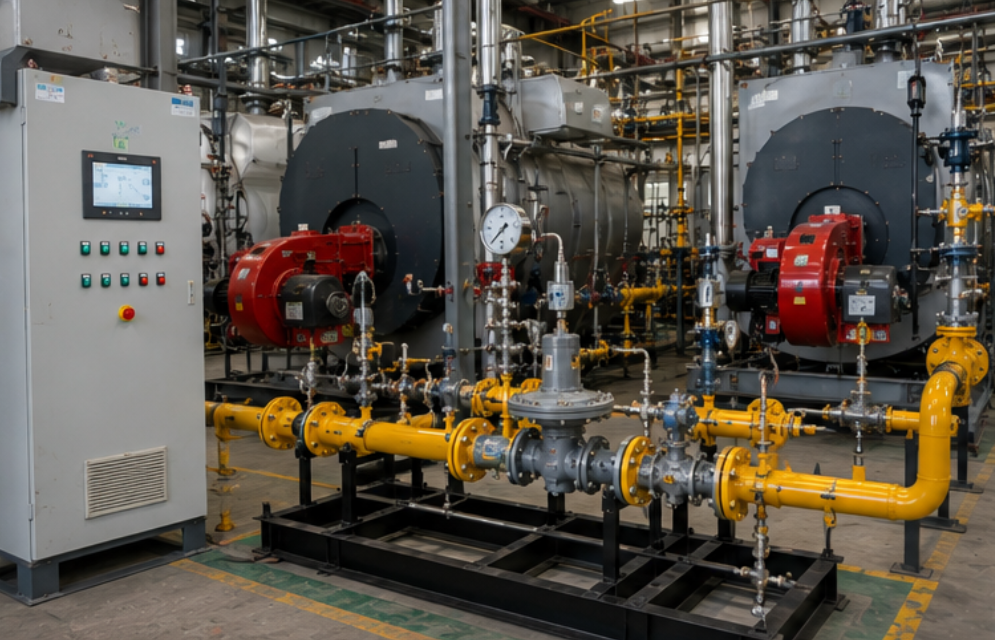

A gas pressure regulating skid is designed to stabilize gas supply before the burner system. Instead of relying on separate site-installed parts, it can integrate filtration, pressure regulation, safety shut-off, relief protection, pressure monitoring, venting, bypass line, control cabinet, and skid-mounted piping into one engineered package.
When burner shutdown is related to gas pressure instability, a properly designed skid can improve pressure control, reduce pressure drop, protect downstream burners, provide better monitoring points, and make maintenance easier.
Skid Components That Should Be Reviewed
Filter or filter separator: prevents dirt and liquid from affecting regulator performance.
Pressure regulator: reduces and stabilizes gas pressure for burner operation.
Safety shut-off valve: cuts off gas flow during abnormal pressure or emergency conditions.
Relief protection: helps protect downstream equipment from overpressure.
Pressure transmitter: supports monitoring, alarm output, and remote signal feedback.
Control cabinet: supports local indication, alarm logic, and plant control integration.
5. Practical Steps To Reduce Burner Shutdown Risk
To reduce repeated burner shutdown, buyers should first identify whether the gas pressure problem happens before regulation, after regulation, or near the burner. Then they should review the filter, regulator, pipe pressure loss, pressure switch settings, safety shut-off logic, and total burner gas demand.
If the factory has added new burners, upgraded boiler capacity, or changed production loads, the existing gas supply system may no longer match the new demand. In this case, a new or upgraded gas pressure regulating skid may be needed.
Practical Tip
If a burner shuts down when the pressure gauge looks normal, check pressure during real burner operation. Static pressure and dynamic pressure may tell very different stories.
Burner Shutdown Troubleshooting Checklist
Record inlet, outlet, and burner inlet pressure during operation.
Check filter blockage and pressure loss before the regulator.
Confirm regulator capacity under low-load and peak-load conditions.
Check pressure switch and transmitter installation positions.
Review pipe size, pipe length, elbows, and local pressure loss.
Confirm burner gas demand and number of burners running together.
Check safety shut-off valve, relief valve, and alarm settings.
Review whether a custom gas pressure regulating skid is needed for stable operation.
Conclusion
Industrial burners can shut down even when gas pressure looks normal because the visible pressure may not reflect real dynamic pressure during burner operation. The actual cause may be regulator sizing, blocked filters, pressure loss, safety switch position, sudden load change, or incomplete gas pressure regulation design.
A properly designed gas pressure regulating skid can help stabilize gas pressure, improve burner reliability, reduce shutdown risk, provide better monitoring, and support safer long-term factory operation.
FAQ
Why does the burner shut down if gas pressure looks normal?
The pressure may look normal when the burner is not running, but it may drop during ignition, high fire, or peak gas demand. This dynamic pressure drop can trigger burner protection.
Can a blocked filter cause burner shutdown?
Yes. A blocked gas filter can restrict flow before the regulator or burner, causing pressure drop during operation even if the static pressure looks acceptable.
What should be checked first?
Check pressure during real burner operation, including ignition, low fire, high fire, and multi-burner operation. Also check the filter, regulator, pipe loss, and pressure switch position.
When is a gas pressure regulating skid needed?
A skid-mounted gas regulating system is useful when the factory needs stable pressure control, complete safety protection, factory testing, easier installation, and better monitoring for burners or boiler rooms.
