1. What Happens When PRDS Outlet Temperature Is Not Controlled Properly?

A PRDS system should deliver steam at the required pressure and temperature. If outlet temperature cannot be controlled properly, downstream users may receive steam that is too hot, too wet, or unstable. This can affect heat exchangers, reactors, dryers, sterilizers, turbine bypass lines, process heating systems, and temperature-sensitive production equipment.

In many sites, operators keep adjusting the temperature setpoint, spray water valve, or pressure reducing valve, but the outlet temperature still rises and falls. This usually means the system design, measurement point, spray water condition, or mixing distance needs to be reviewed.

A stable PRDS system depends on pressure reduction, desuperheating, spray water control, steam velocity, temperature feedback, straight pipe length, drainage, and control logic working together.

Common Symptoms

• Outlet steam temperature remains higher than the target value.

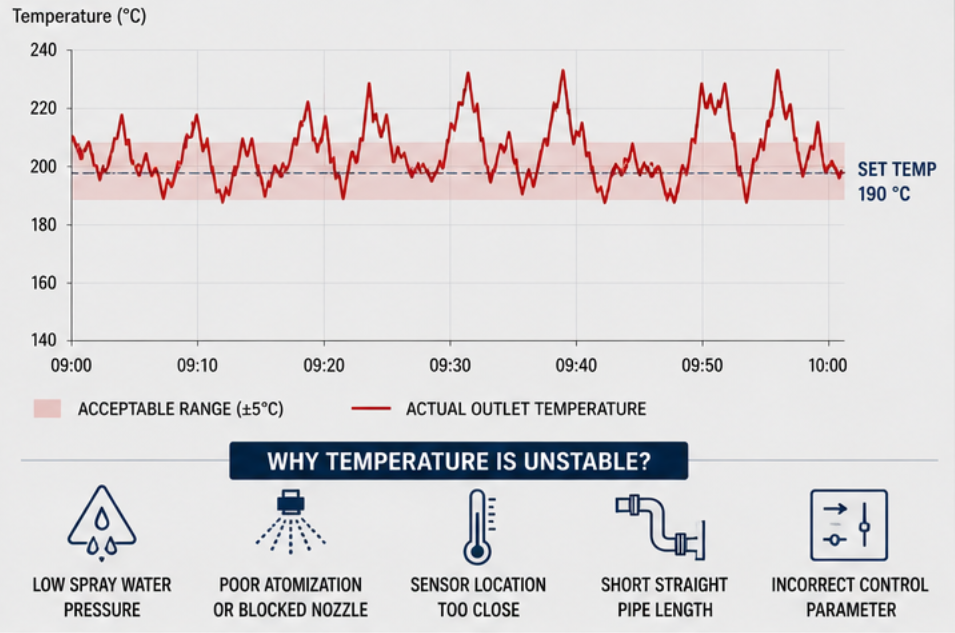

• Temperature fluctuates even when pressure looks stable.

• Spray water valve stays open but temperature does not drop enough.

• Temperature sensor reading changes sharply after small load changes.

• Wet steam, water carryover, or water hammer appears after desuperheating.

• Downstream equipment receives unstable heating or poor process temperature control.

2. Main Causes Of Poor Outlet Temperature Control In PRDS Systems

Outlet temperature problems should be diagnosed as a complete system issue. The desuperheater, spray water control valve, nozzle, temperature sensor, steam flow range, downstream straight pipe, and control cabinet should all be reviewed together.

Troubleshooting Table

3. Spray Water Conditions Are Usually The First Item To Check

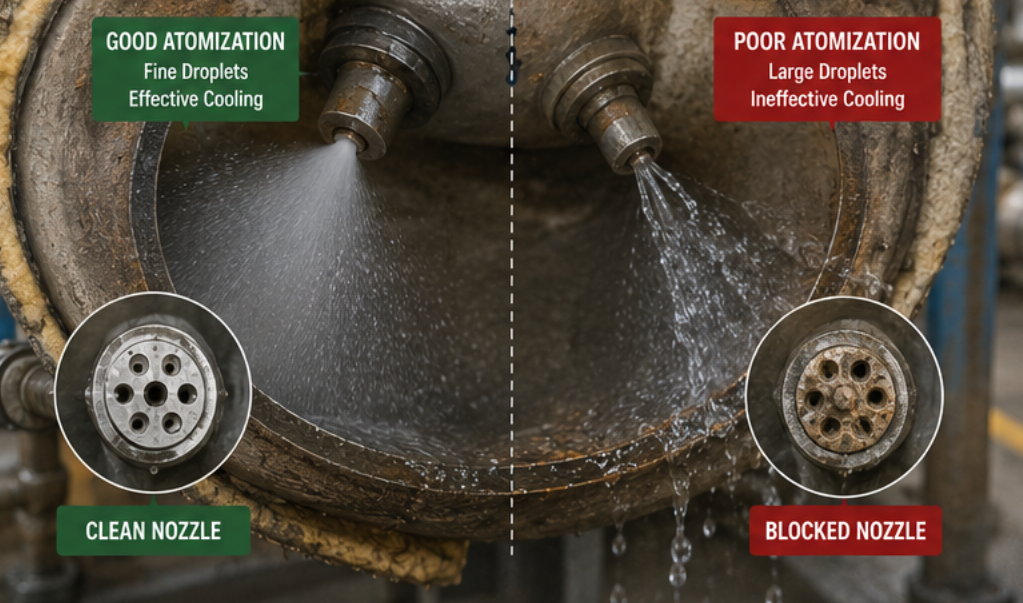

Desuperheating depends on spray water evaporation. If the water pressure is too low, the water cannot be atomized into fine droplets. If water flow is insufficient, the steam cannot be cooled to the target temperature. If water quality is poor, the nozzle may become blocked, scaled, or worn.

Buyers should not only confirm that a spray water line is installed. The spray water control valve, nozzle, pressure difference, water source stability, water temperature, filtration, and maintenance access must also be checked.

Spray Water Checklist

• Spray water pressure before the control valve.

• Spray water pressure at nozzle inlet.

• Available spray water flow during peak steam flow.

• Spray water temperature and water quality.

• Spray water filter condition and nozzle blockage risk.

• Control valve size, actuator signal, and response speed.

•


4. Sensor Location And Mixing Distance Are Often Overlooked

After spray water is injected into steam, it needs enough time and pipe length to atomize, evaporate, and mix. If the temperature sensor is installed too close to the desuperheater, it may read local temperature instead of fully mixed steam temperature. This can cause unstable feedback and poor control performance.

If the downstream straight pipe is too short, water droplets may reach elbows, valves, reducers, or equipment before complete evaporation. This may cause wet steam, pipe erosion, unstable temperature, and water hammer risk.

Layout Review Checklist

• Distance between desuperheater outlet and temperature sensor.

• Available straight pipe length after spray water injection.

• Location of downstream elbows, valves, reducers, and branch lines.

• Whether drainage is arranged for possible water carryover.

• Whether the sensor measures fully mixed steam temperature.

• Whether downstream equipment can accept small temperature fluctuations.

5. Steam Flow Range Also Affects Desuperheating Stability

PRDS systems often operate under changing steam flow. At very low flow, steam velocity may not be high enough for good spray water mixing. At very high flow, the spray water system may not provide enough cooling capacity. If the system was selected only for one normal flow point, temperature control may fail under low-load or peak-load conditions.

This is why the PRDS system should be designed according to minimum, normal, and maximum steam flow. The desuperheater, spray water valve, nozzle, temperature sensor, and control logic must all match the full operating range.

Steam Flow Data To Prepare

• Minimum steam flow during low-load operation.

• Normal steam flow during continuous operation.

• Maximum steam flow during peak demand.

• Startup flow and load change speed.

• Required outlet temperature at each flow condition.

• Downstream equipment temperature tolerance.

6. How A Proper PRDS Skid Design Improves Temperature Control

A complete PRDS skid should integrate pressure reducing control valve, desuperheater, spray water control valve, spray water filter, safety valve, pressure transmitters, temperature sensors, drain valves, control cabinet, piping, supports, and skid-mounted frame into one engineered package.

Compared with separate site assembly, a skid-mounted PRDS system allows pressure control, temperature control, spray water condition, sensor location, straight pipe requirement, drainage, safety protection, factory testing, and documentation to be reviewed together before delivery.

Engineering Review Checklist

• Confirm inlet steam pressure and inlet steam temperature.

• Confirm required outlet pressure and outlet temperature.

• Review minimum, normal, and maximum steam flow.

• Check spray water pressure, flow, temperature, and quality.

• Review nozzle type, atomization condition, and blockage risk.

• Check temperature sensor location and downstream straight pipe length.

• Review control valve response, actuator signal, and PID settings.

• Consider a custom PRDS skid for stable pressure and temperature control.

Conclusion

PRDS systems may fail to control outlet steam temperature properly because of insufficient spray water pressure, low spray water flow, poor nozzle atomization, blocked nozzle, wrong temperature sensor location, short straight pipe length, unstable steam flow range, or unsuitable control logic.

A properly designed PRDS skid can help stabilize pressure reduction, improve desuperheating performance, reduce outlet temperature fluctuation, protect downstream equipment, and support safer long-term steam system operation.

FAQ

Why can’t a PRDS system control outlet steam temperature properly?

Common causes include insufficient spray water pressure, poor nozzle atomization, wrong temperature sensor location, short straight pipe length, blocked nozzle, unstable steam flow, and poor control logic.

Can spray water pressure affect desuperheating performance?

Yes. If spray water pressure is too low, atomization becomes poor and water droplets may not evaporate fully, causing high or unstable outlet temperature.

Why is temperature sensor location important?

If the sensor is too close to the desuperheater, it may not measure fully mixed steam temperature. This can cause unstable feedback and poor control response.

When should a PRDS skid be redesigned?

If outlet temperature remains unstable after checking setpoints, spray water, nozzle, sensor location, and flow range, the PRDS skid layout and control design should be reviewed.
