Need To Solve Steam Control Valve Vibration?

Send us your inlet steam pressure, outlet pressure, steam temperature, steam flow range, valve size, actuator type, pipe layout, support arrangement, vibration location, and current operating symptoms. Our engineering team can help review whether your pressure reducing valve or skid-mounted system needs optimization.

1. Why Steam Control Valve Vibration Should Not Be Ignored

A steam control valve works under high temperature, high velocity, and changing pressure conditions. If the valve vibrates during pressure reduction, it may indicate unstable steam flow, excessive pressure drop, poor valve selection, weak pipe support, or condensate impact inside the steam line.

Valve vibration can damage the actuator, positioner, stem, packing, flange gasket, pressure gauge, transmitter tubing, pipe support, and downstream equipment. It may also cause noise, pressure fluctuation, control instability, water hammer risk, and frequent maintenance.

For boiler rooms, steam pressure reducing stations, power plants, chemical plants, food factories, textile plants, and industrial process lines, vibration should be reviewed as a complete steam system issue, not only as a valve problem.

Common Vibration Symptoms

• Control valve body or actuator shakes during pressure reduction.

• Nearby pressure gauges and small impulse lines vibrate.

• Steam line makes loud noise around the pressure reducing valve.

• Outlet pressure fluctuates when the valve position changes.

• Vibration becomes worse during low-load or peak-load operation.

• Flange leakage, packing wear, or instrument damage occurs repeatedly.

2. Main Causes Of Steam Control Valve Vibration

Steam control valve vibration may come from flow conditions, valve sizing, control response, pipe layout, mechanical support, or condensate. Before replacing the valve, buyers should identify whether the vibration is caused by the valve itself or by the surrounding steam system.

Troubleshooting Table

3. Check Whether The Valve Is Oversized For Real Flow

An oversized steam control valve is one of the most common reasons for vibration. If the valve is selected only by pipe size or future maximum capacity, it may operate at a very small opening during normal or low-load conditions. Small opening control can cause unstable flow, fast pressure changes, actuator movement, and vibration.

Correct valve selection should be based on actual steam flow range, not only maximum flow. Minimum flow, normal flow, maximum flow, pressure drop, steam temperature, downstream equipment demand, and control accuracy should all be reviewed.

Valve Sizing Checklist

• Actual minimum steam flow during low-load operation.

• Normal steam flow during continuous operation.

• Maximum steam flow during peak demand.

• Required outlet pressure and pressure control range.

• Valve opening under normal operating load.

• Whether future expansion reserve has made the valve too large for current use.

4. Review Pipe Support And Mechanical Layout

Even if the valve is correctly selected, weak pipe support can make vibration worse. Steam control valves are heavy, and the actuator, positioner, bypass line, flanges, and connected pipes all need stable support. If the valve station is hanging on the pipeline without enough support, vibration may transfer through the whole skid or pipe rack.

Pipe layout also matters. Sharp elbows close to the valve, sudden pipe reducers, poor straight pipe arrangement, and unsupported downstream sections can create flow disturbance and mechanical vibration.

Mechanical Layout Checklist

• Check pipe supports before and after the control valve.

• Confirm the valve body and actuator have enough mechanical support.

• Review nearby elbows, reducers, and branch lines.

• Check whether small instrument tubes are vibrating.

• Inspect flange bolts, gasket leakage, and pipe movement.

• Review skid frame rigidity if the valve is installed on a skid-mounted system.

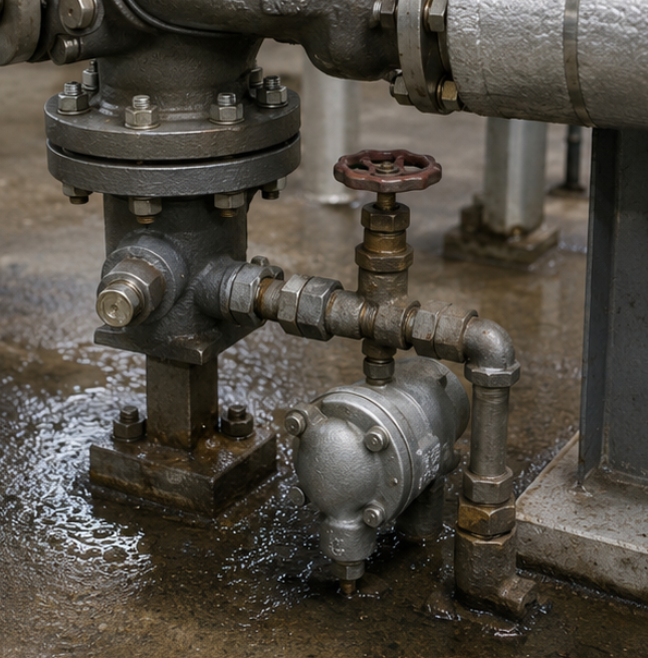

5. Condensate And Water Hammer Can Trigger Valve Vibration

Condensate inside steam lines can create unstable flow and strong impact. If water collects before the control valve or pressure reducing station, high-speed steam may push water slugs through the valve and downstream pipe. This can cause vibration, noise, water hammer, and valve damage.

Drainage should be checked before and after the pressure reducing valve. Steam traps, drain valves, low points, warm-up operation, and pipe slope are all important for avoiding condensate impact.

Drainage Checklist

• Check drain points before and after the control valve.

• Inspect steam traps and condensate return condition.

• Review pipe slope and low points near the valve station.

• Check for water hammer noise during startup.

• Drain condensate before opening steam flow fully.

• Inspect whether insulation damage creates excessive condensate.

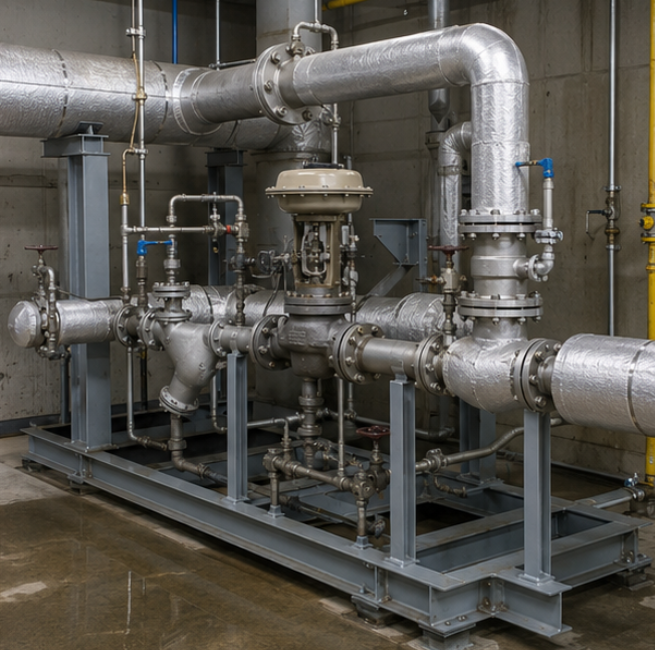

6. How A Steam Pressure Reducing Skid Helps Reduce Valve Vibration

A steam pressure reducing skid can integrate control valve sizing, strainer, safety valve, pressure transmitters, pressure gauges, drain points, bypass line, control cabinet, pipe supports, and skid-mounted frame into one engineered package. This helps reduce installation errors and makes the system easier to inspect before delivery.

A properly designed skid can improve valve support, stabilize pressure control, arrange instruments correctly, reduce condensate problems, and provide better access for maintenance. If the system also needs temperature control, a PRDS skid with desuperheating may be more suitable.

Engineering Review Checklist

• Confirm inlet pressure, outlet pressure, and pressure drop.

• Review minimum, normal, and maximum steam flow.

• Check whether the control valve is oversized or undersized.

• Review actuator, positioner, and control signal stability.

• Inspect pipe support and valve mechanical support.

• Check strainer blockage and pressure loss.

• Review condensate drainage and water hammer risk.

• Consider a custom steam pressure reducing skid for stable valve operation.

Conclusion

Steam control valves may vibrate in pressure reducing systems because of oversized valve selection, high pressure drop, unstable control signal, poor pipe support, condensate accumulation, blocked strainers, water hammer, or unsuitable pipe layout.

A properly designed steam pressure reducing skid can help improve valve sizing, pipe support, drainage design, pressure control stability, and long-term system reliability.

FAQ

Why do steam control valves vibrate in pressure reducing systems?

Common causes include oversized valves, high pressure drop, unstable control signal, weak pipe support, condensate accumulation, blocked strainers, and poor skid layout.

Can an oversized valve cause vibration?

Yes. If the valve is too large for actual steam flow, it may operate at a very small opening and become unstable during low-load operation.

Can condensate cause valve vibration?

Yes. Condensate can create unstable steam flow, water hammer, impact, vibration, and valve damage if drainage is not properly designed.

How can vibration be reduced?

Check valve sizing, pressure drop, actuator response, pipe support, strainer condition, drainage design, and skid layout. A properly engineered steam pressure reducing skid can help reduce vibration risk.
