Need To Control Steam Pressure And Temperature?

Send us your inlet steam pressure, inlet temperature, required outlet pressure, required outlet temperature, steam flow range, spray water pressure, spray water temperature, downstream equipment, and pipe layout. Our engineering team can help review whether a PRDS system or desuperheating skid is suitable for your project.

1. Why Pressure Reduction Alone May Not Lower Steam Temperature Enough

Pressure reduction can change the steam condition, but it does not always make outlet steam suitable for downstream equipment. If the inlet steam is superheated, the outlet steam after pressure reduction may still remain superheated. In this case, downstream users may receive steam that is at the correct pressure but still too hot.

For many industrial processes, both pressure and temperature must be controlled. Heat exchangers, sterilization systems, food processing lines, chemical reactors, textile equipment, paper machines, and district heating systems may need a specific steam temperature range, not only a specific pressure.

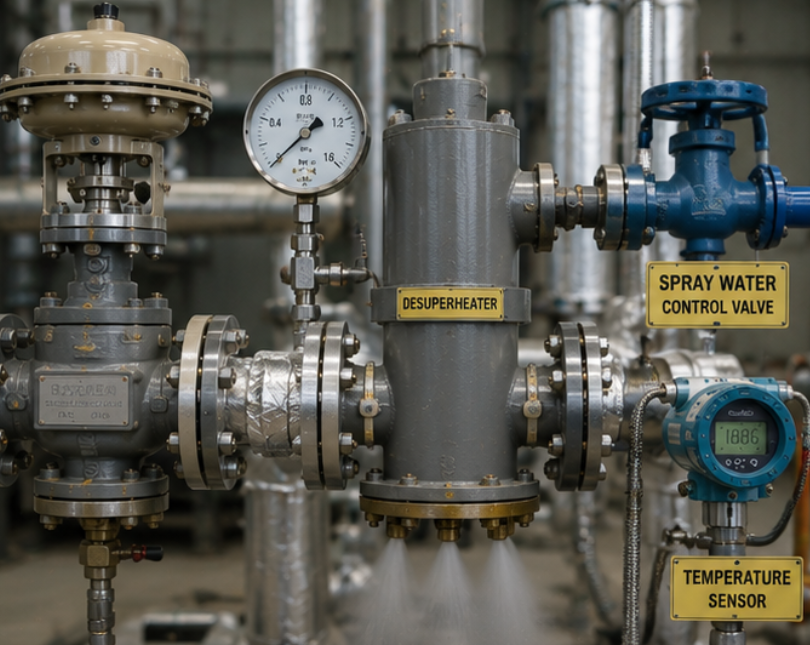

That is why a steam pressure reducing valve may need to be combined with a desuperheater, spray water control valve, temperature sensor, and control cabinet. This complete package is often called a Steam PRDS system.

Common Signs Of High Outlet Steam Temperature

• Outlet pressure is correct, but steam temperature remains too high.

• Downstream equipment overheats or becomes difficult to control.

• Temperature control valve stays open but outlet temperature does not drop enough.

• Spray water is injected, but temperature fluctuation continues.

• Heat exchanger, dryer, or process line temperature rises above target.

• Operators repeatedly adjust pressure but cannot solve the temperature problem.

2. Main Causes Of High Temperature After Pressure Reduction

When steam temperature is still too high after pressure reduction, the cause is often related to desuperheating performance. Buyers should check whether the system has a desuperheater, whether spray water is available, whether the nozzle atomizes properly, and whether the temperature sensor is installed in the correct position.

Troubleshooting Table

3. Spray Water Conditions Are Critical For Desuperheating

A desuperheating system usually reduces steam temperature by injecting controlled spray water into the steam flow. If spray water pressure is too low, the nozzle may not atomize properly. If spray water flow is insufficient, the outlet temperature may remain too high. If spray water quality is poor, the nozzle may become blocked or scaled.

Buyers should not only ask whether a desuperheater is included. They should also confirm spray water pressure, spray water temperature, available water flow, water quality, control valve sizing, nozzle type, and maintenance access.

Spray Water Data To Prepare

• Spray water pressure before the control valve.

• Spray water temperature and available water flow.

• Water quality, hardness, filtration, and scaling risk.

• Spray water control valve type and actuator signal.

• Nozzle type, atomization requirement, and maintenance method.

• Whether the water source can remain stable during peak steam flow.

4. Sensor Location And Straight Pipe Length Affect Temperature Control

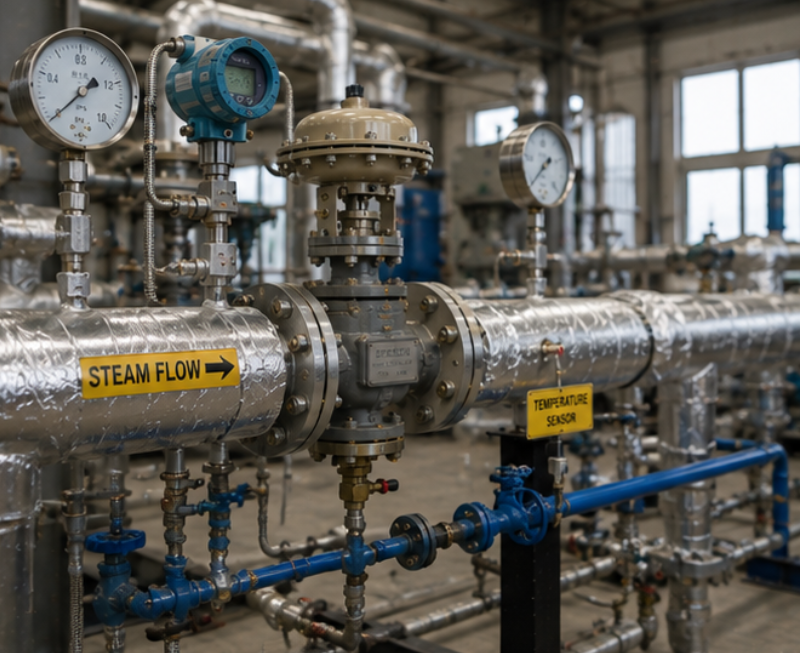

After spray water is injected, the water needs enough distance to atomize, evaporate, and mix with the steam. If the temperature sensor is installed too close to the desuperheater, it may read unstable local temperature instead of fully mixed outlet steam temperature.

If downstream straight pipe length is too short, water may not evaporate completely before the steam reaches bends, valves, or equipment. This may cause unstable temperature control, wet steam, water carryover, pipe erosion, or water hammer risk.

Layout Items To Check

• Distance between desuperheater outlet and temperature sensor.

• Available straight pipe length after spray water injection.

• Location of elbows, reducers, valves, and branch lines after desuperheating.

• Whether drainage is arranged for possible water carryover.

• Whether the temperature sensor reflects fully mixed steam temperature.

• Whether the pipe layout allows safe inspection and maintenance.

•


5. When A PRDS System Is Needed Instead Of Only A PRV

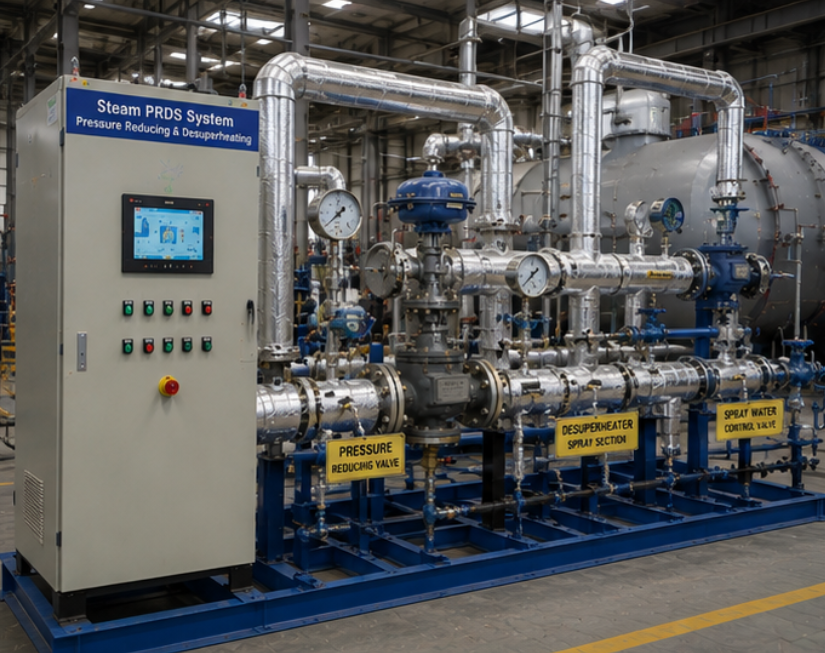

If downstream equipment needs both lower pressure and controlled temperature, a pressure reducing valve alone may not be enough. A PRDS system combines pressure reducing and desuperheating into one engineered package. It can include pressure reducing control valve, desuperheater, spray water control valve, safety valve, pressure transmitters, temperature sensors, drain valves, control cabinet, piping, and skid frame.

Compared with separate site assembly, a skid-mounted PRDS system allows pressure control, temperature control, spray water arrangement, safety protection, drainage, instrument location, factory testing, and documentation to be reviewed together before delivery.

Data To Send For Engineering Review

• Inlet steam pressure and inlet steam temperature.

• Required outlet pressure and outlet temperature.

• Minimum, normal, and maximum steam flow.

• Spray water pressure, temperature, quality, and available flow.

• Downstream equipment type and temperature tolerance.

• Pipe layout after the desuperheater and available straight pipe length.

• Existing PRV, desuperheater, control valve, and sensor details.

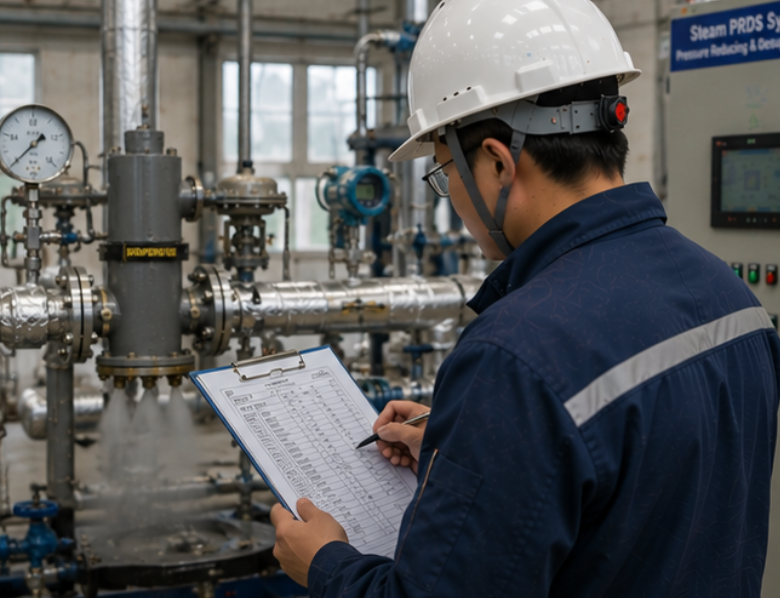

• Current temperature fluctuation records or site photos.

Conclusion

Steam temperature may still be too high after pressure reduction because pressure reduction alone cannot always provide the required outlet steam temperature. The problem may be caused by missing desuperheating, insufficient spray water, poor nozzle atomization, wrong sensor location, short straight pipe length, or unsuitable PRDS system design.

A properly designed Steam PRDS system can help reduce pressure, control outlet temperature, protect downstream equipment, improve process stability, and support safer long-term steam system operation.

FAQ

Why is steam temperature still high after pressure reduction?

Pressure reduction alone may not remove enough superheat. If downstream users need lower temperature, a desuperheater or PRDS system may be required.

What affects desuperheating performance?

Spray water pressure, spray water flow, nozzle atomization, water quality, downstream straight pipe length, sensor location, and control logic all affect performance.

Can wrong sensor location cause temperature control problems?

Yes. If the temperature sensor is too close to the desuperheater, it may not measure fully mixed steam temperature, causing unstable or inaccurate control.

When should a PRDS system be used?

A PRDS system is suitable when downstream equipment needs both stable steam pressure and controlled outlet steam temperature.
